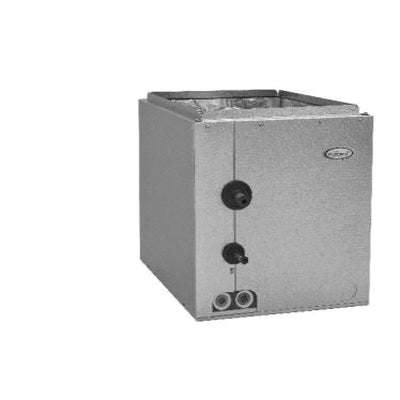

ADP RE36936C210B2505AP Evaporator Coil 36000 Btu/hr Left Hand Cased Coil

Product Description

The ADP RE36936C210B2505AP is an evaporator coil designed for efficient cooling with a capacity of 36000 Btu/hr. This left hand cased coil operates at a nominal airflow of 1200 cfm and is made with copper materials for durability and effective heat exchange. This coil is suitable for multi-position installation and is compatible with R-410A refrigerant.

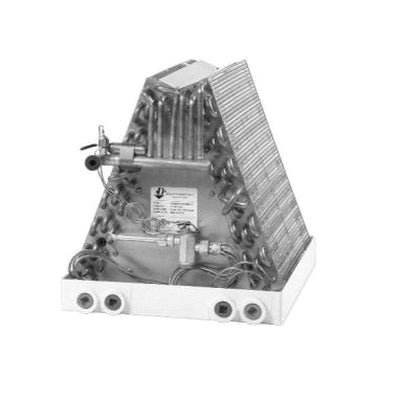

• High efficiency lanced fin design for optimal heat transfer
• Coils are air pressure tested at 500 psi and leak tested
• Integrated Microban antimicrobial additive to prevent mold growth

Product Highlights

This evaporator coil is ideal for both residential and commercial applications. It features easy installation due to non-captive refrigerant lines and long stubs. The coil's UV resistant drain pans and dual condensate drains allow for reliable operation over time.

Product Information

Standard Information

• Brand: ADP
• MPN: RE36936C210B2505AP

Technical Specifications

• BTU Rating: 36000 Btu/hr
• CFM Rating: 1200 cfm
• Coil Type: Left Hand Cased
• Configuration: Multi-Position
• Connection Size: 3/4 in
• Connection Type: ODF
• Dimensions: 25-1/2 in H x 21 in W x 20-1/2 in D
• Domestic/Import: Domestic
• Material: Copper
• Piston Size: #67
• Pressure Rating: 500 psi
• Refrigerant Type: R-410A
• Suitable For Use With: A1 Refrigerants
• Temperature Rating: 450 deg F
