ADP RE36936C175B2505N 3.0 Ton R-454B 36,000 BTU/h 17.5 in Cased-Coil

Product Description

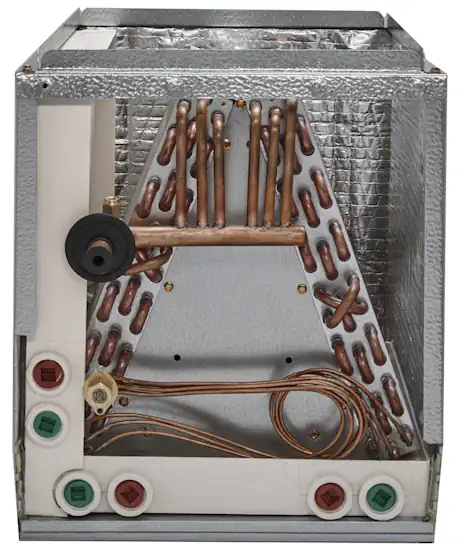

The ADP RE36936C175B2505N is a 3.0 ton cased evaporator coil built for R-454B refrigerant systems. This model is designed for high-efficiency performance and features a multi-position layout to accommodate upflow, downflow, and horizontal installations. It is suitable for both new installations and system upgrades.

• Durable, fully insulated cabinet
• Service-friendly components with an easy-access front panel
• Ideal for seamless integration with matched systems

Product Highlights

The coil is engineered for reliability and ease of maintenance, offering an efficient solution to HVAC needs.

Product Information

Standard Information

• Product Family: HE Series
• Refrigerant Type: R-454B

Technical Specifications

• BTU Rating: 36,000 BTU/h
• Tonnage: 3.0 Ton
• Coil Casing: Cased
• Coil Material: Copper
• Height: 25.5 in
• Width: 17.5 in
• Depth: 20.5 in
• Drain Pan Material: Composite / Polymer
• Suction Line Size: 3/4 in
• Product Weight: 64 lbs
• Air Flow Direction: Upflow, Downflow, Horizontal
• Model Number: HE
