ADP RE36648C245B2505AP 4.0 Ton R-410A 48,000 BTU/h 24.5 in Cased-Coil

Product Description

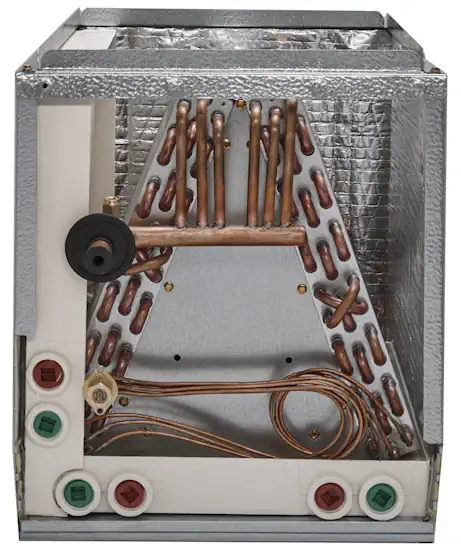

The ADP RE36648C245B2505AP is a 4.0 Ton R-410A cased evaporator coil providing efficient cooling with a BTU rating of 48,000 BTU/h.

• Multi-position design for flexible installation: upflow, downflow, or horizontal.
• Constructed with a copper coil for enhanced durability.
• Factory tested for pressure and leaks to ensure reliable performance.

Product Highlights

This evaporator coil is suited for various residential cooling systems, offering dependable function and easy maintenance access.

Product Information

Standard Information

• Brand: ADP
• Model Number: HE

Technical Specifications

• BTU Rating: 48,000 BTU/h
• Refrigerant Type: R-410A
• Coil Material: Copper
• Coil Casing: Cased
• Tonnage: 4.0 Ton
• Width: 24.5 in
• Height: 25.5 in
• Depth: 20.5 in
• Drain Pan Material: Composite / Polymer
• Product Weight: 64 lbs
• Suction Line Size: 7/8 in
• Air Flow Direction: Upflow, Downflow, Horizontal, Multi-Position
• Product Family: HE Series
