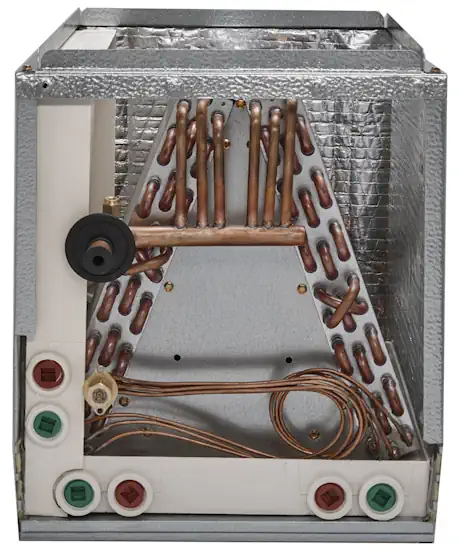

ADP RE34A42D210B2005R Cased Coil 3.5 Ton R-454B 42,000 BTU/h

Product Description

The ADP RE34A42D210B2005R is a 3.5-ton cased evaporator coil designed for high efficiency. This product operates with R-454B refrigerant and delivers a capacity of forty-two thousand BTU per hour. Its configuration options include upflow, downflow, and horizontal, allowing it to fit in various furnace systems.

• High-efficiency performance for improved system efficiency.
• Multi-position cased coil for flexible installation.
• Durable construction with corrosion-resistant materials.

Product Highlights

Perfect for modern HVAC systems, this coil ensures compatibility with A2L refrigerants and features a fully insulated cabinet to enhance service accessibility.

Product Information

Standard Information

• Model Number: HE
• Product Family: HE Series

Technical Specifications

• Air Flow Direction: Upflow, Downflow, Horizontal, Multi-Position
• BTU Rating: 42,000 BTU/h
• Coil Casing: Cased
• Coil Material: Copper
• Depth: 21 inches
• Drain Pan Material: Composite / Polymer
• Height: 20.5 inches
• Product Weight: 56 lbs
• Refrigerant Type: R-454B
• Refrigeration Control Type: TXV
• Suction Line Size: 7/8 inches
• Tonnage: 3.5 Ton
• Width: 21 inches
