ADP RE34A42D175B2005R 3.5 Ton R-454B 42,000 BTU/h 17.5 in Cased-Coil

Product Description

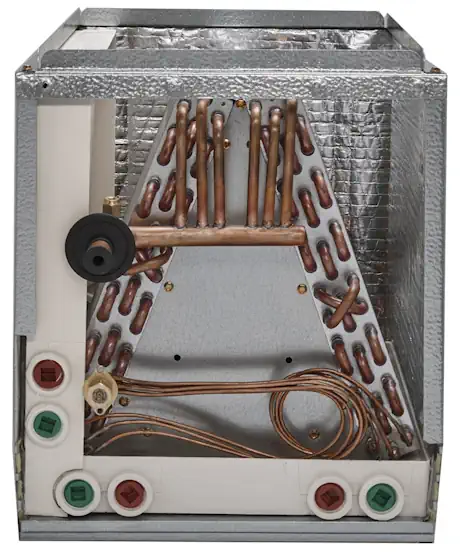

The ADP RE34A42D175B2005R is a 3.5-ton cased evaporator coil designed for residential HVAC systems. This coil supports the use of modern refrigerants, specifically R-454B, and features a high-efficiency lanced fin design. Its flexible installation options accommodate upflow, downflow, or horizontal configurations, making it suitable for various furnace setups. The evaporator coil is built for durability and simple maintenance, ensuring reliable performance over time.

• Capacity: 42,000 BTU/h
• Multi-position installation allows for versatile applications
• Includes factory-installed TXV for improved efficiency

Product Highlights

Designed for high efficiency with modern refrigerants, this evaporator coil is a key component in effective HVAC systems.

Product Information

Standard Information

• Brand: ADP
• Model Number: HE

Technical Specifications

• Air Flow Direction: Multi-Position (Upflow, Downflow, Horizontal)
• BTU Rating: 42,000 BTU/h
• Coil Casing: Cased
• Coil Material: Copper
• Depth: 21 in
• Drain Pan Material: Composite / Polymer
• Height: 20.5 in
• Product Weight: 56 lbs
• Refrigerant Type: R-454B
• Refrigeration Control Type: TXV
• Suction Line Size: 7/8 in
• Tonnage: 3.5 Ton
• Width: 17.5 in
