ADP RE32936C175B1605N 3.0 Ton R-454B HE Series Cased-Coil

Product Description

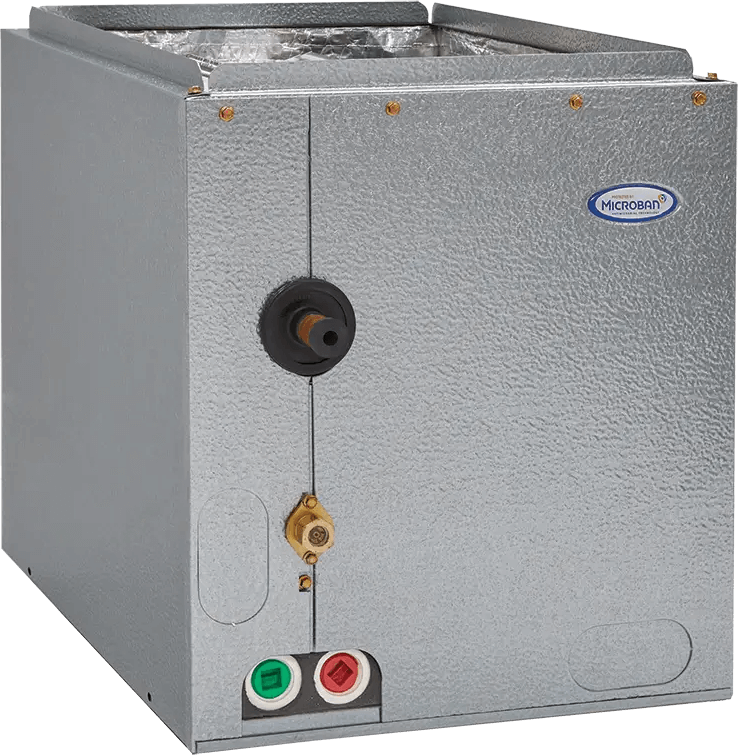

The ADP RE32936C175B1605N is a three-ton cased evaporator coil designed for use with A2L refrigerants, such as R-454B. This high-efficiency coil has a flexible design that supports upflow, downflow, or horizontal setups, making it suitable for both installations and replacements.

• Advanced drain pan features a Microban additive to reduce mold growth.
• Insulated cabinet ensures low air leakage with its 5/8 inch foil-faced insulation.
• Service-friendly design includes long stubs and a four-screw access panel for easy maintenance.

Product Highlights

Description focused on durability and efficiency. The cased coil is built with copper tubing and a robust cabinet for accessibility. It aims for optimal performance with effective water management features.

Product Information

Standard Information

• Brand: ADP
• MPN: RE32936C175B1605N

Technical Specifications

• Air Flow Direction: Multi-Position (Upflow, Downflow, Horizontal)
• BTU Rating: 36,000 BTU/h
• Coil Casing: Cased
• Coil Material: Copper
• Depth: 20.5 inches
• Drain Pan Material: Composite / Polymer
• Height: 16.5 inches
• Model Number: HE
• Product Family: HE Series
• Product Weight: 46 lbs
• Refrigerant Type: R-454B
• Refrigeration Control Type: TXV
• Suction Line Size: 3/4 inches
• Tonnage: 3.0 Ton
• Width: 17.5 inches
