ADP RE32936C140B1605N 3.0 Ton R-454B HE Series Cased-Coil

Product Description

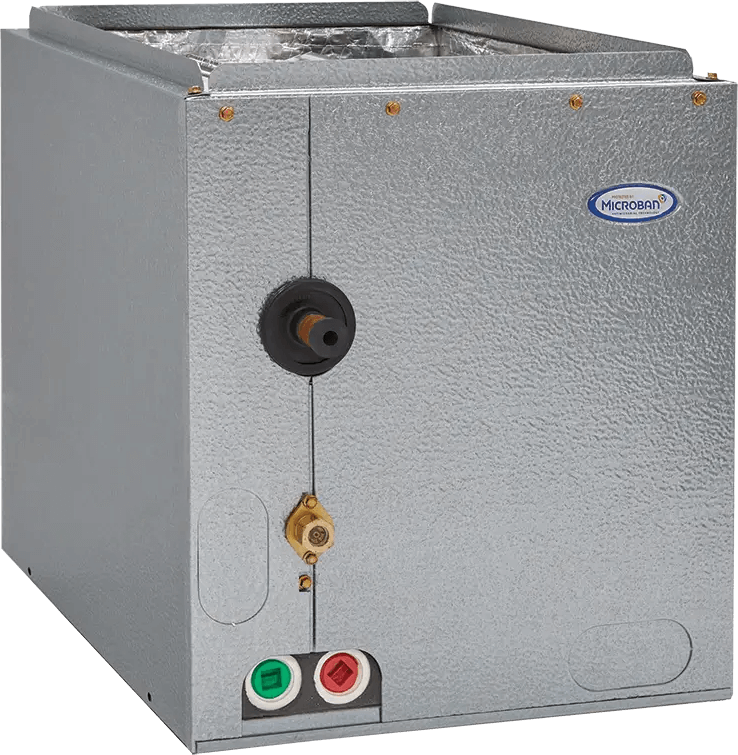

The ADP RE32936C140B1605N is a 3.0 Ton R-454B HE Series cased coil designed for modern HVAC systems. This evaporator coil supports A2L refrigerants, specifically R-454B. It features a multi-position installation capability for upflow, downflow, and horizontal setups, making it adaptable to various furnace types. Enhanced with a durable cabinet, this coil emphasizes efficiency and reliability in operation.

• Advanced Drain Pan: Molded from high-temperature polymer with Microban antimicrobial features.
• Installation-Friendly Design: Built-in plenum flanges and easy-access front panel.
• Durable Construction: Copper connections and corrosion-resistant header plates.

Product Highlights

Product Information

Standard Information

• Model Number: HE
• Product Family: HE Series

Technical Specifications

• Air Flow Direction: Upflow, Downflow, Horizontal, Multi-Position
• BTU Rating: 36,000 BTU/h
• Coil Casing: Cased
• Coil Material: Copper
• Depth: 20.5 inches
• Drain Pan Material: Composite / Polymer
• Height: 16.5 inches
• Product Weight: 46 lbs
• Refrigerant Type: R-454B
• Refrigeration Control Type: TXV
• Suction Line Size: 3/4 inches
• Tonnage: 3.0 Ton
• Width: 14 inches
