ADP RE30924C175B1205N 2.0 Ton R-454B HE Series Cased-Coil

Product Description

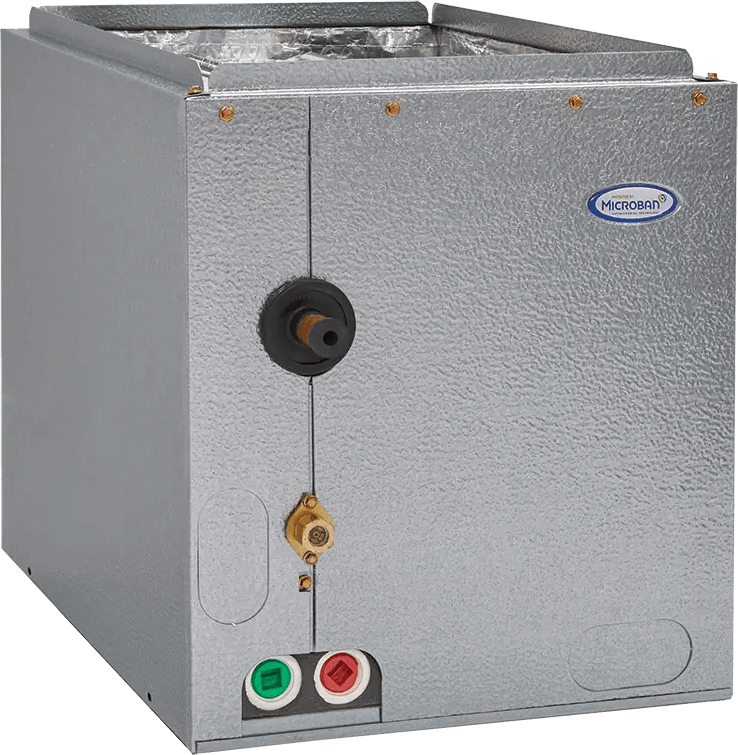

The ADP RE30924C175B1205N is a two-ton cased evaporator coil designed for compatibility with air conditioning and heat pump systems using R-454B refrigerant. This unit is suitable for modern installations and is compliant with A2L refrigerant standards. It can be installed in various orientations: upflow, downflow, or horizontally, providing flexible options to meet different system requirements. The cabinet is fully insulated to reduce energy loss and improve efficiency.

• Advanced drain pan made from UV-resistant polymer.
• High-efficiency design for minimal air leakage.
• Ease of service and installation with non-captive refrigerant lines.

Product Highlights

Product Information

Standard Information

• Brand: ADP
• Model Number: HE

Technical Specifications

• Air Flow Direction: Upflow, Downflow, Horizontal, Multi-Position
• BTU Rating: 24,000 BTU/h
• Coil Casing: Cased
• Coil Material: Copper
• Depth: 20.5 inches
• Drain Pan Material: Composite / Polymer
• Height: 12.5 inches
• Product Weight: 36 lbs
• Refrigerant Type: R-454B
• Refrigeration Control Type: TXV
• Suction Line Size: 3/4 inches
• Tonnage: 2.0 Ton
• Width: 17.5 inches
