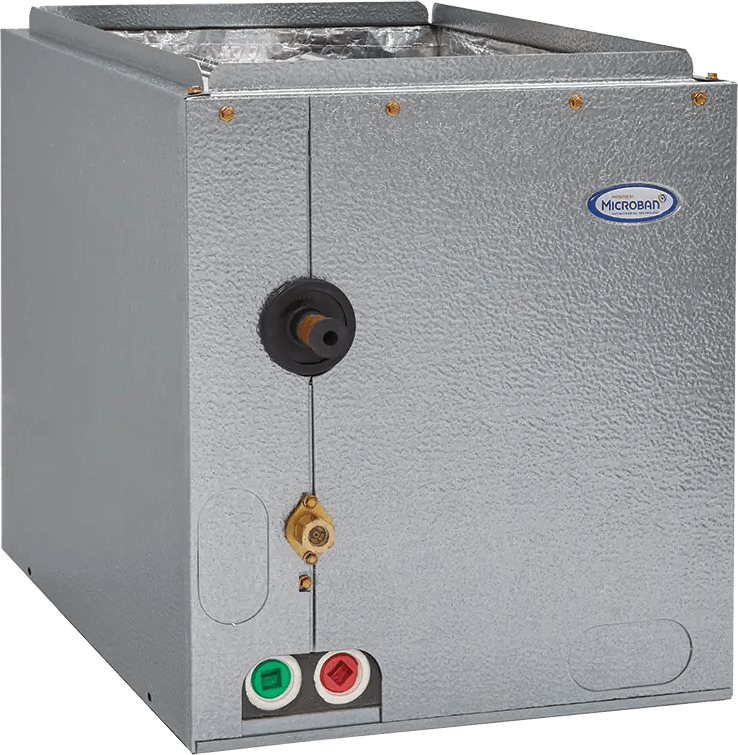

ADP RE30924C140B1205N 2.0 Ton R-454B HE Series Cased-Coil

Product Description

The ADP RE30924C140B1205N is a 2.0 Ton R-454B HE Series Cased-Coil designed for high efficiency. This evaporator coil fits well with modern air conditioning and heat pump systems. It is compatible with R-454B refrigerant and works with many outdoor units. The multi-position design of this coil allows for easy installation in various applications.

• Advanced Drain Pan: Features a low water retention drain pan made from UV-resistant polymer.
• Insulated Cabinet: Fully lined with insulation to minimize air leakage.
• Installation-Friendly: Designed for fast installation with built-in features.

Product Highlights

This product offers efficient thermal performance and is built with rugged materials for durability.

Product Information

Standard Information

• Model Number: HE
• Product Family: HE Series

Technical Specifications

• Air Flow Direction: Upflow, Downflow, Horizontal, Multi-Position
• BTU Rating: 24,000 BTU/h
• Coil Casing: Cased
• Coil Material: Copper
• Depth: 20.5 inches
• Drain Pan Material: Composite / Polymer
• Height: 12.5 inches
• Product Weight: 36 lbs
• Refrigerant Type: R-454B
• Refrigeration Control Type: TXV
• Suction Line Size: 3/4 inches
• Tonnage: 2.0 Ton
• Width: 14 inches
