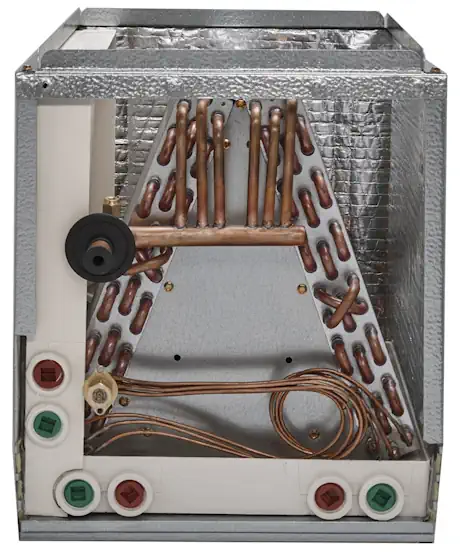

ADP RE22A30D175B1605R 2.5 Ton R-454B 30,000 BTU/h 17.5 in Cased-Coil

Product Description

The ADP RE22A30D175B1605R is a 2.5 ton evaporator coil optimized for R-454B refrigerant. It offers a flexible installation with multi-position configurations for upflow, downflow, and horizontal setups. This unit is designed for modern air conditioning and heat pump installations.

• Multi-position installation options
• Factory-installed TXV included
• Fully insulated steel cabinet reduces air leakage

Product Highlights

This evaporator coil is part of the HE Series and is built for efficiency and reliability.

Product Information

Standard Information

• Brand: ADP
• Model Number: HE

Technical Specifications

• Coil Casing: Cased
• Refrigerant Type: R-454B
• BTU Rating: 30,000 BTU/h
• Tonnage: 2.5 Ton
• Width: 17.5 inches
• Height: 16.5 inches
• Depth: 21 inches
• Product Weight: 36 lbs
• Drain Pan Material: Composite / Polymer
• Suction Line Size: 3/4 inches
• Air Flow Direction: Upflow, Downflow, Horizontal, Multi-Position
