ADP RE21A18D175B1605R 1.5 Ton R-454B Multi-Position Cased-Coil

Product Description

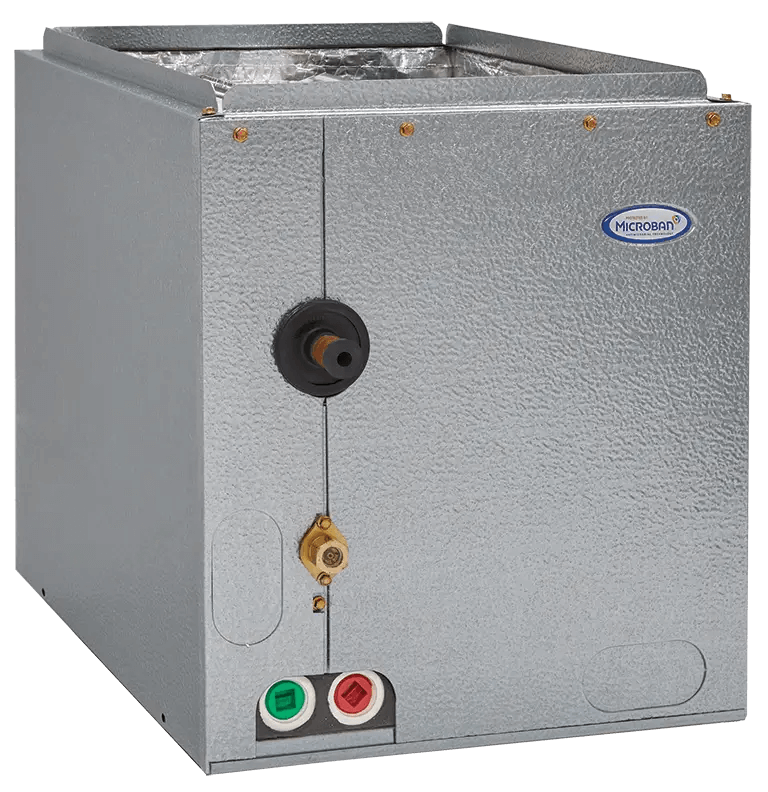

The ADP RE21A18D175B1605R is a 1.5 Ton R-454B multi-position cased-coil. This evaporator coil supports high-efficiency performance in residential systems that utilize R-454B refrigerant. Its multi-position design permits installation in upflow, downflow, or horizontal orientations, making it suitable for both new builds and system upgrades.

• Advanced Drain Pan: Incorporates HydroTEC technology and Microban antimicrobial protection.
• Durable Construction: Features copper refrigerant connections and a cabinet lined with foil-faced insulation.
• Service-Friendly Access: Built with easy access for installation and maintenance.

Product Highlights

This coil is designed for reliability with low air leakage and enhanced efficiency. It includes a factory-installed thermal expansion valve that prevents external sweating, ensuring reliable operation.

Product Information

Standard Information

• Brand: ADP
• MPN: RE21A18D175B1605R

Technical Specifications

• Air Flow Direction: Upflow, Downflow, Horizontal, Multi-Position
• BTU Rating: 18,000 BTU/h
• Coil Casing: Cased
• Coil Material: Copper
• Depth: 21 inches
• Drain Pan Material: Composite / Polymer
• Height: 16.5 inches
• Model Number: HE
• Product Family: HE Series
• Product Weight: 35 lbs
• Refrigerant Type: R-454B
• Refrigeration Control Type: TXV
• Suction Line Size: 3/4 inches
• Tonnage: 1.5 Ton
• Width: 17.5 inches
