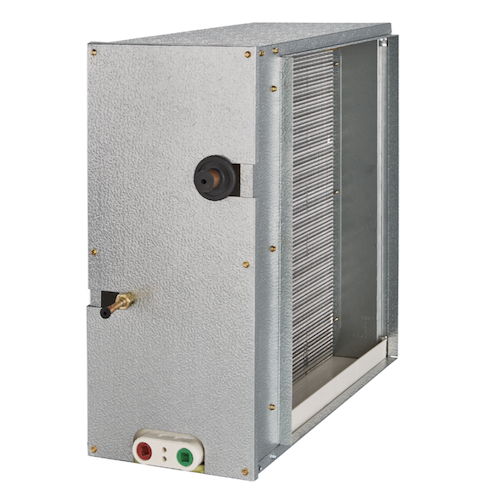

ADP HH57936A185A2102AP Embossed 3 Ton Horizontal Evaporator Coil with R-410A Heat Pump TXV

Product Description

The ADP HH57936A185A2102AP is a cased horizontal evaporator coil designed for use with residential and light commercial heat pump systems utilizing R-410A refrigerant. Rated for 3-ton applications, this coil features an embossed galvanized steel cabinet and a factory-installed heat pump thermal expansion valve (TXV) for precise refrigerant metering and enhanced system performance. Its horizontal configuration allows installation in applications where space or system design requires a horizontal airflow arrangement. The durable cabinet construction and service-friendly design support long-term reliability and simplified installation.

• Nominal capacity of 3 tons (36,000 BTU/h)

• Horizontal airflow configuration

• Factory-installed R-410A heat pump TXV

• Embossed galvanized steel cabinet construction

• Cased evaporator coil design

• Designed for use with R-410A heat pump systems

• Provides efficient refrigerant distribution and heat transfer

• Suitable for residential and light commercial HVAC applications

Product Highlights

This evaporator coil combines durable cabinet construction with a factory-installed TXV to help optimize refrigerant flow and system efficiency. Its horizontal design makes it well suited for attic, crawlspace, and horizontal air handler installations where space constraints require a compact HVAC solution.

Product Information

Standard Information

• Brand: ADP (Advanced Distributor Products)

• MPN: HH57936A185A2102AP

• Product Type: Cased Horizontal Evaporator Coil

Technical Specifications

• Nominal Capacity: 3 Ton (36,000 BTU/h)

• Configuration: Horizontal

• Coil Type: Slab Evaporator Coil

• Cabinet Style: Cased

• Cabinet Finish: Embossed Galvanized Steel

• Refrigerant Type: R-410A

• Metering Device: Heat Pump TXV (Thermostatic Expansion Valve)

• Liquid Line Connection: 3/8 Inch ODF

• Suction Line Connection: 7/8 Inch ODF

• Application: Heat Pump Systems

• Installation Orientation: Horizontal

• Service Access: Removable Access Panel

Note: This evaporator coil is intended for use with compatible R-410A heat pump equipment. Proper system matching and installation should be verified according to manufacturer specifications to ensure performance and efficiency.
