Adp hg9ja36a155a0000n Uncased A-coil 3 Ton 15.5in Rh Txv

Product Description

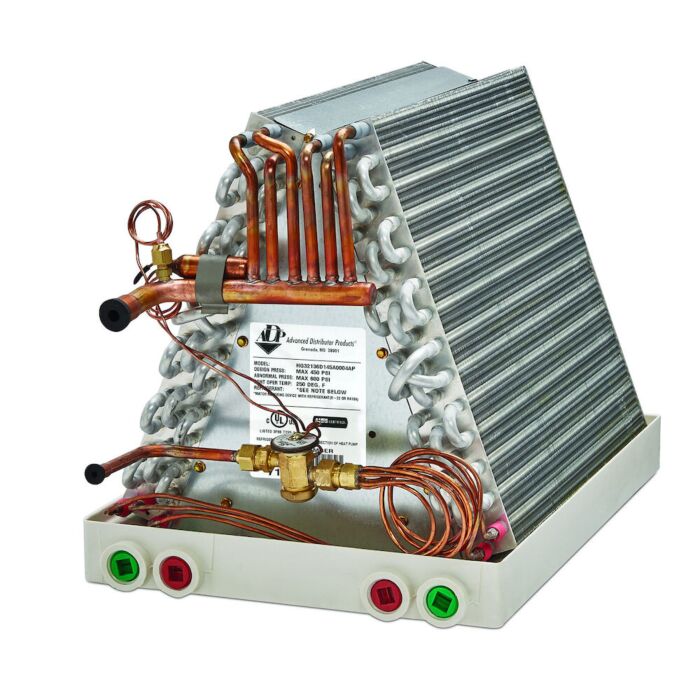

The ADVANCED DISTRIBUTOR PRODUCTS hg9ja36a155a0000n is an uncased A-coil evaporator designed for multi-position air handler and furnace installations requiring a right-hand orientation. Part of the HE Series, this coil ships without a casing, making it suitable for applications where the coil is field-installed into an existing cabinet or custom enclosure. It is rated at 3 tons and features a factory-installed TXV metering device calibrated for R-454B refrigerant. Licensed HVAC technicians handle installation and refrigerant circuit work in compliance with applicable mechanical codes and EPA Section 608 requirements.

This coil is suited for residential and light-commercial cooling applications where a 3-ton uncased evaporator coil is required. The 15.5-inch B width and 19-inch height fit common air handler and furnace cabinet configurations. The right-hand orientation determines which side the refrigerant connections are positioned on, and must be verified against the air handler or furnace cabinet layout before ordering. Multi-position capability allows installation in upflow, downflow, or horizontal configurations depending on the cabinet design.

Key Features

• 3-ton capacity for residential and light-commercial cooling systems
• Factory-installed TXV metering device for accurate refrigerant flow control
• Rated for R-454B refrigerant, a lower-GWP A2L alternative
• Right-hand orientation for compatibility with matching cabinet configurations
• Multi-position design supports upflow, downflow, and horizontal installation
• Uncased construction for field installation into existing or custom enclosures

Compatibility

Designed as an OEM-style uncased replacement evaporator coil for 3-ton multi-position residential and light-commercial HVAC systems using R-454B refrigerant with a right-hand connection orientation and a 15.5-inch B width cabinet.

Installation Notes

Installation must be performed by an EPA Section 608 certified HVAC technician. Shut off all electrical power and close the refrigerant service valves before opening the refrigerant circuit. Verify the cabinet orientation, B width clearance, and refrigerant line connection side before positioning the coil. This coil is designed for R-454B, an A2L mildly flammable refrigerant, so consult applicable local mechanical codes and ASHRAE 15 guidelines for safe handling and installation practices.

Technical Specifications

• Capacity: 3 Ton
• Type: Uncased A-Coil
• Configuration: Multi-Position
• Orientation: Right Hand
• Metering Device: TXV
• Refrigerant: R-454B
• B Width: 15.5 inches
• Height: 19 inches

Standard Information

• Brand: ADVANCED DISTRIBUTOR PRODUCTS
• Manufacturer Part Number: hg9ja36a155a0000n
