Adp hg36a36a200a0004r Uncased A-coil Upflow Lh R-454B Txv

Product Description

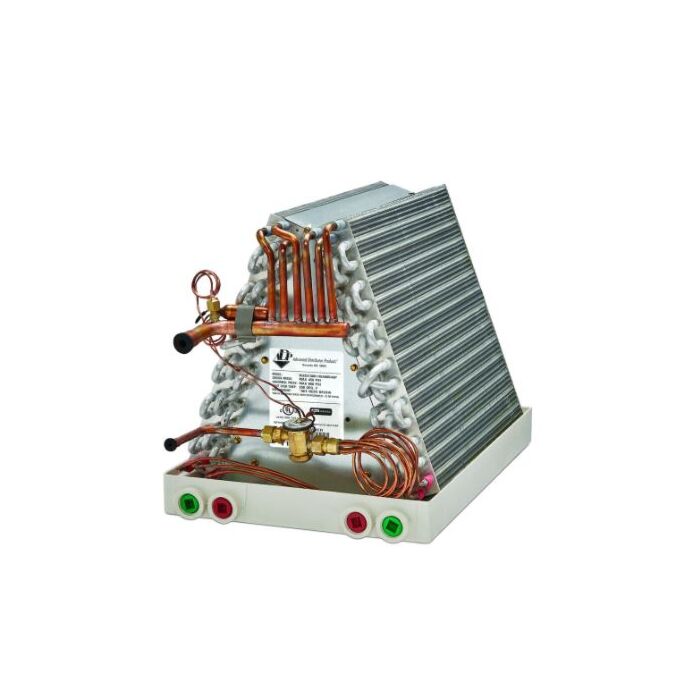

The ADVANCED DISTRIBUTOR PRODUCTS hg36a36a200a0004r is an uncased evaporator A-coil designed for upflow air handler and furnace installations. Configured for left-hand orientation, this coil uses a thermostatic expansion valve (TXV) as its metering device and is charged for use with R-454B refrigerant. The coil measures 20 inches in C-width and 23 inches in height, fitting standard residential upflow applications in the 2.5 to 3 ton capacity range. A refrigerant distribution system (RDS) kit is included. Installation requires a licensed HVAC technician working with equipment rated for R-454B, an A2L classified refrigerant.

This coil is suited for residential upflow cooling systems in the 2.5 to 3 ton range. The uncased design allows it to be installed inside an existing coil cabinet or air handler cabinet where the installer supplies the casing. It is specified for use with Allied 2.5 and 3 ton 7AC unit families. The left-hand orientation must be matched to the system configuration during installation planning.

Key Features

• Upflow configuration for compatibility with upflow furnaces and air handlers
• Left-hand orientation for correct system fit
• TXV metering device for precise refrigerant flow control
• R-454B refrigerant rated, an A2L low-GWP alternative to R-410A
• Uncased design for installation inside a field-supplied or existing coil cabinet
• RDS kit included

Compatibility

Specified for use with Allied 2.5 and 3 ton 7AC units. Designed as an upflow uncased evaporator coil replacement or new-installation coil for residential split cooling systems using R-454B refrigerant.

Installation Notes

Installation must be performed by a licensed HVAC technician certified to handle A2L refrigerants including R-454B. Disconnect and lock out all electrical power and close refrigerant service valves before beginning coil replacement or installation. Verify left-hand orientation matches the existing or planned system cabinet configuration before mounting. Follow all applicable local mechanical codes and manufacturer guidelines for R-454B systems, including proper leak detection protocols required for A2L refrigerants.

Technical Specifications

• Type: Uncased A-Coil
• Configuration: Upflow
• Orientation: Left Hand
• Metering Device: TXV
• Refrigerant: R-454B
• C-Width: 20 inches
• Height: 23 inches
• Capacity Range: 2.5 to 3 Ton

Standard Information

• Brand: ADVANCED DISTRIBUTOR PRODUCTS
• Manufacturer Part Number: hg36a36a200a0004r
