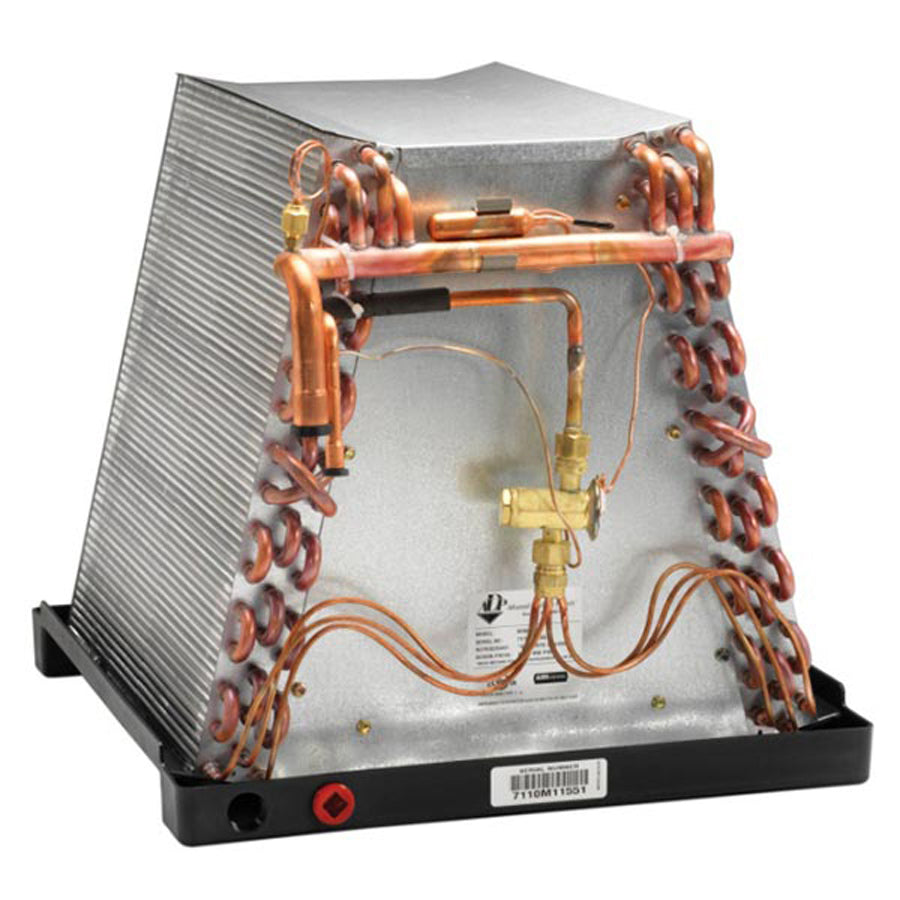

Adp HE9J936A170A0000AP Uncased Evaporator Coil 2-2.5 Ton

Product Description

The ADP HE9J936A170A0000AP is an uncased evaporator coil rated for 2 to 2.5 ton systems and equipped with a factory-installed thermostatic expansion valve (TXV). Designed for right-hand refrigerant connection, this coil supports multi-position installation, allowing it to fit upflow, downflow, and horizontal air handler configurations. At 17 inches wide, 19 inches tall, and 19.5 inches deep, it fits standard residential air handler cabinets where an uncased coil is required. The TXV provides active refrigerant metering, making this coil compatible with high-efficiency matched systems without the need for a separate field-installed metering device. HVAC technicians install this coil as a primary evaporator section in split-system cooling and heat pump applications.

This coil is suited for residential split-system air conditioning and heat pump installations requiring a 2 or 2.5 ton uncased coil. The multi-position orientation makes it adaptable across upflow, downflow, and horizontal air handler configurations. The right-hand TXV connection must be accounted for during system layout. It is intended for use inside a field-supplied or existing air handler cabinet and is not designed for standalone exposure to the airstream without an enclosure.

Key Features

• Factory-installed TXV for precise refrigerant metering without a field-added device
• Multi-position design supports upflow, downflow, and horizontal installations
• Uncased construction fits inside field-supplied air handler cabinets
• 2 to 2.5 ton nominal capacity suits standard residential system sizing
• Right-hand refrigerant connection orientation for compatible system layouts

Compatibility

Designed as an OEM-style uncased evaporator coil for residential split-system air conditioning and heat pump applications requiring 2 to 2.5 ton capacity with a factory TXV and right-hand connection.

Installation Notes

Installation should be performed by a licensed HVAC technician holding the appropriate EPA Section 608 certification for refrigerant handling. Shut down and de-energize the full system before mounting the coil or connecting refrigerant lines. Verify that the air handler cabinet dimensions accommodate the coil footprint of 17 inches wide, 19 inches tall, and 19.5 inches deep before installation. Confirm that the right-hand TXV orientation matches the system piping layout prior to brazing connections.

Technical Specifications

• Nominal Capacity: 2 to 2.5 ton
• Casing: Uncased
• Orientation: Multi-position
• Refrigerant Connection: Right hand with factory-installed TXV
• Width: 17 inches
• Height: 19 inches
• Depth: 19.5 inches

Standard Information

• Brand: ADP
• Manufacturer Part Number: HE9J936A170A0000AP
