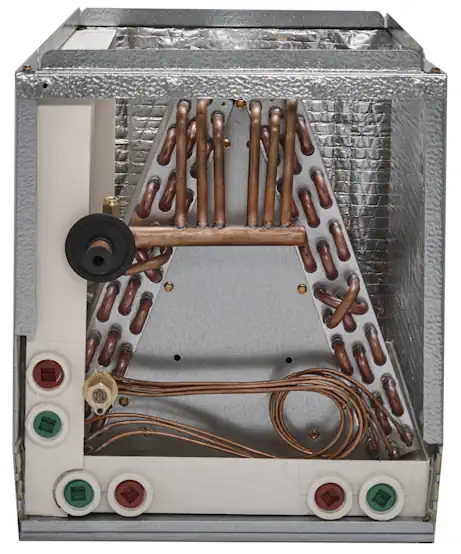

ADP HE8J936C210B1805AP 3.0 Ton R-410A 36,000 BTU/h 21 in Cased-Coil

Product Description

The ADP HE8J936C210B1805AP is a 3.0 ton cased evaporator coil designed for R-410A refrigerant with a BTU rating of 36,000. This versatile coil is suitable for residential systems and supports multi-position installation including upflow, downflow, and horizontal.

• Multi-position design for flexible installation options.
• Durable embossed steel cabinet ensures long-lasting performance.
• Fully insulated cabinet for improved thermal efficiency.

Product Highlights

The ADP HE Series cased evaporator coil provides a reliable upgrade for HVAC systems, making installation straightforward for technicians.

Product Information

Standard Information

• Brand: ADP
• Model Number: HE

Technical Specifications

• Tonnage: 3.0 Ton
• BTU Rating: 36,000 BTU/h
• Refrigerant Type: R-410A
• Coil Material: Copper
• Coil Casing: Cased
• Drain Pan Material: Composite / Polymer
• Air Flow Direction: Upflow, Downflow, Horizontal
• Depth: 20.5 inches
• Height: 18.5 inches
• Width: 21 inches
• Product Weight: 50 lbs
• Refrigeration Control Type: TXV
• Suction Line Size: 3/4 inches
