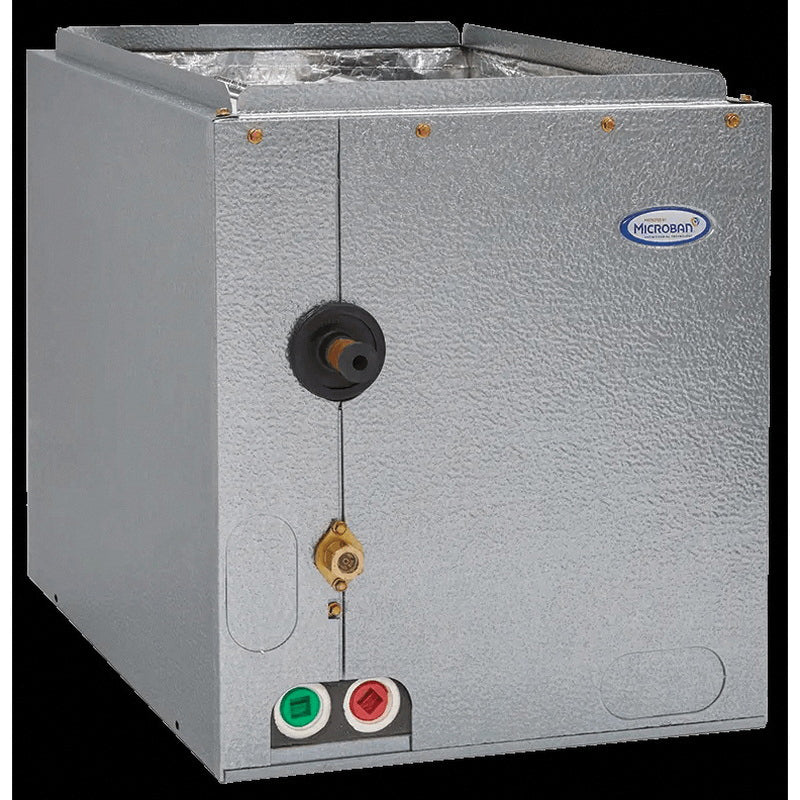

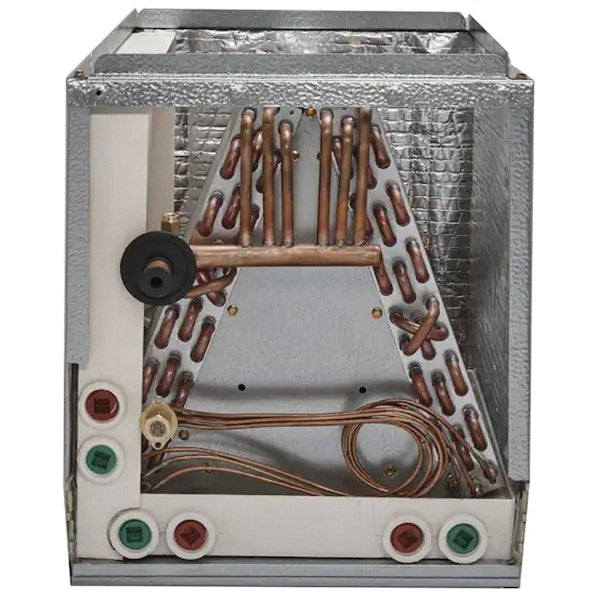

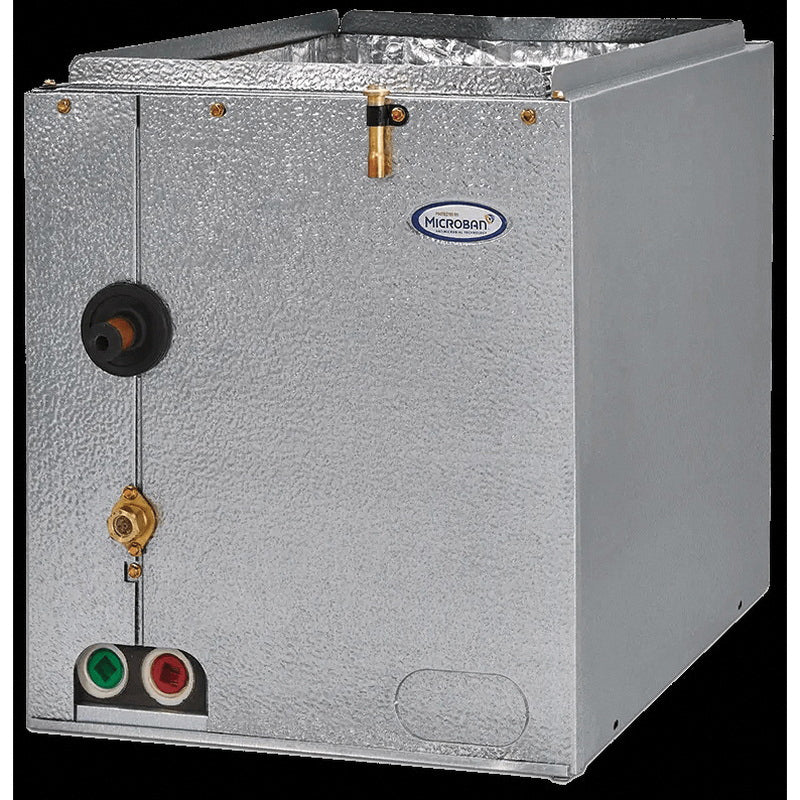

ADP HE7J936C175B1605AP HE Series Evaporator Coil 36000 Btu/hr Left Hand Cased Coil

Product Description

The ADP HE7J936C175B1605AP Evaporator Coil is designed for efficient air conditioning performance. This left-hand cased coil operates at a capacity of thirty-six thousand Btu per hour and supports airflow of twelve hundred cubic feet per minute. It is suitable for use with R-410A refrigerant. The unit features a multi-position configuration for versatile installation in both upflow and downflow applications.

• Capacity: 36000 Btu/hr
• Airflow: 1200 cfm
• Material: Copper

Product Highlights

This evaporator coil is engineered to work efficiently with A1 refrigerants. It has a built-in plenum for quick installation and maintenance access. The galvanized finish offers durability against environmental factors.

Product Information

Standard Information

• Coil Type: Left Hand Cased
• Domestic/Import: Domestic

Technical Specifications

• BTU Rating: 36000 Btu/hr
• CFM Rating: 1200 cfm
• Connection Size: 3/4 in
• Connection Type: ODF
• Dimensions: 16-1/2 in H x 17-1/2 in W x 20-1/2 in D
• Material: Copper
• Piston Size: #67
• Pressure Rating: 500 psi
• Refrigerant Type: R-410A
• Temperature Rating: 450 deg F
• Finish: Galvanized
• Series: HE Series
• Suitable For Use With: A1 Refrigerants
