Adp HE49160A205A0000AP Uncased Evaporator Coil 3.5-4 Ton R-410A

Product Description

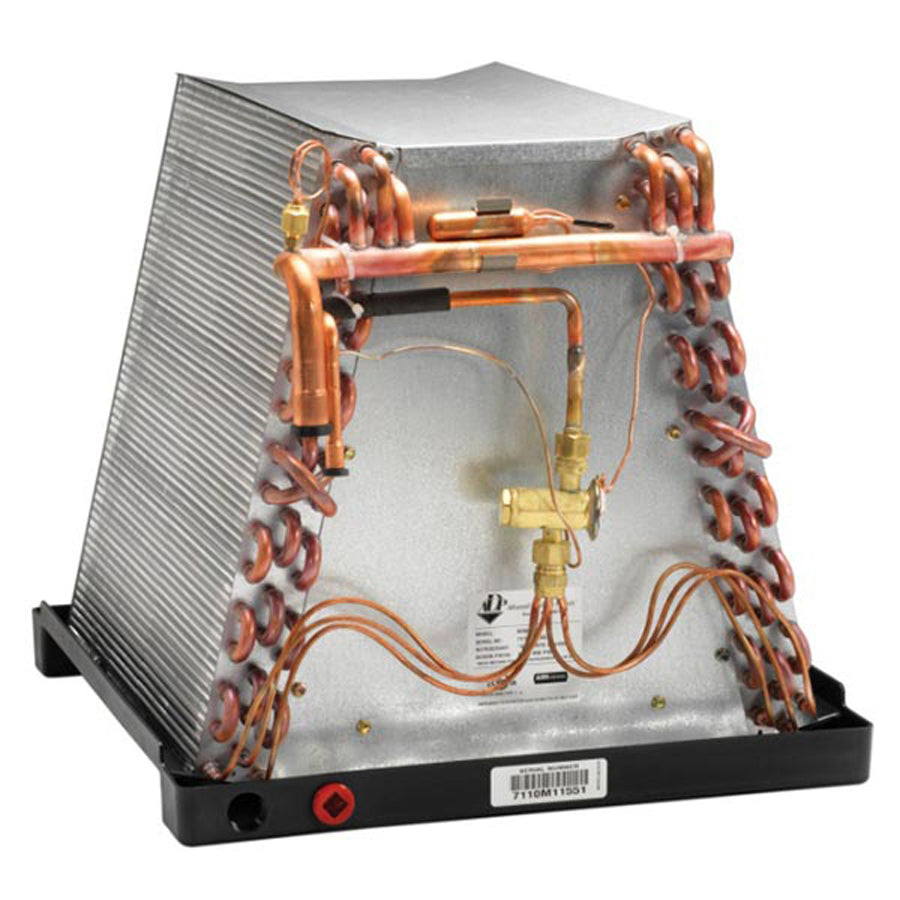

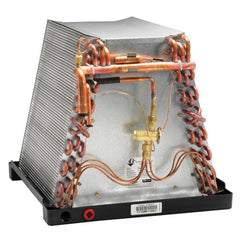

The ADP HE49160A205A0000AP is an uncased slab evaporator coil rated at 60,000 BTU/h for use in residential split-system air conditioning and heat pump applications. Designed for R-410A refrigerant, this right-hand coil ships with a piston metering device installed and includes a thermostatic expansion valve (TXV) access port, allowing field upgrade to a TXV without cutting into refrigerant lines. The copper slab construction supports both copper and aluminum circuit brazing. Cabinet dimensions are 20.5 inches wide by 19.5 inches deep by 25 inches tall. Airflow capacity is rated at 2,000 CFM. Installation is performed by licensed HVAC technicians as part of a split-system assembly.

This coil is sized for 3.5 to 4 nominal ton systems and fits into a wide range of residential air handler configurations where an uncased coil is required. The right-hand orientation suits specific air handler cabinet layouts. The lanced fin design improves heat transfer efficiency, and the high-temperature engineered polymer drain pan resists UV degradation and is rated to 450 degrees F. Dual 3/4-inch FPT condensate drains are located on both the front-left and front-right sides of the drain pan for flexible condensate routing.

Key Features

• Uncased right-hand copper slab coil rated at 60,000 BTU/h and 2,000 CFM
• Piston metering device installed with TXV access port for field or factory TXV upgrade
• Lanced fin design for high-efficiency heat transfer
• Microban antimicrobial additive in the drain pan inhibits mold and mildew growth
• Factory air pressure tested at 500 psi, helium leak tested, then sealed and charged with dry air
• Dual 3/4-inch FPT condensate drain ports on front-left and front-right sides
• Non-captive refrigerant lines with long stubs for easier installation and connection

Compatibility

Designed as an OEM-style uncased evaporator coil replacement or new-install component for R-410A residential split-system air conditioners and heat pumps in the 3.5 to 4 nominal ton range. Compatible with both copper and aluminum slab system configurations per the raw_description.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local mechanical codes and the equipment manufacturer's instructions. De-energize the system and recover all refrigerant before disconnecting or connecting refrigerant lines. Copper refrigerant connections are designed for brazing; use appropriate nitrogen purge practices during brazing to prevent oxidation inside the coil. Verify condensate drain routing and trap configuration meets local plumbing code requirements before startup.

Technical Specifications

• Capacity: 60,000 BTU/h
• Nominal Tonnage: 3.5 to 4 tons
• Airflow: 2,000 CFM
• Refrigerant: R-410A
• Metering Device: Piston with TXV access port
• Coil Orientation: Right-hand uncased
• Width: 20.5 inches
• Depth: 19.5 inches
• Height: 25 inches
• Line Size: 7/8 inch x 3/8 inch
• Condensate Drain: Dual 3/4-inch FPT front-left and front-right
• Cabinet Material: Galvanized steel (uncased configuration)
• Coil Material: Copper slab
• Drain Pan Material: UV-resistant engineered polymer, rated to 450 degrees F
• Test Pressure: 500 psi air pressure, helium leak tested
• Insulation: Not applicable (uncased)

Standard Information

• Brand: ADP
• Manufacturer Part Number: HE49160A205A0000AP
