ADP HE48948C245B2705AP HE Series Evaporator Coil, Left Hand Cased Coil, 48000 Btu/hr, 1600 cfm, Copper

Product Description

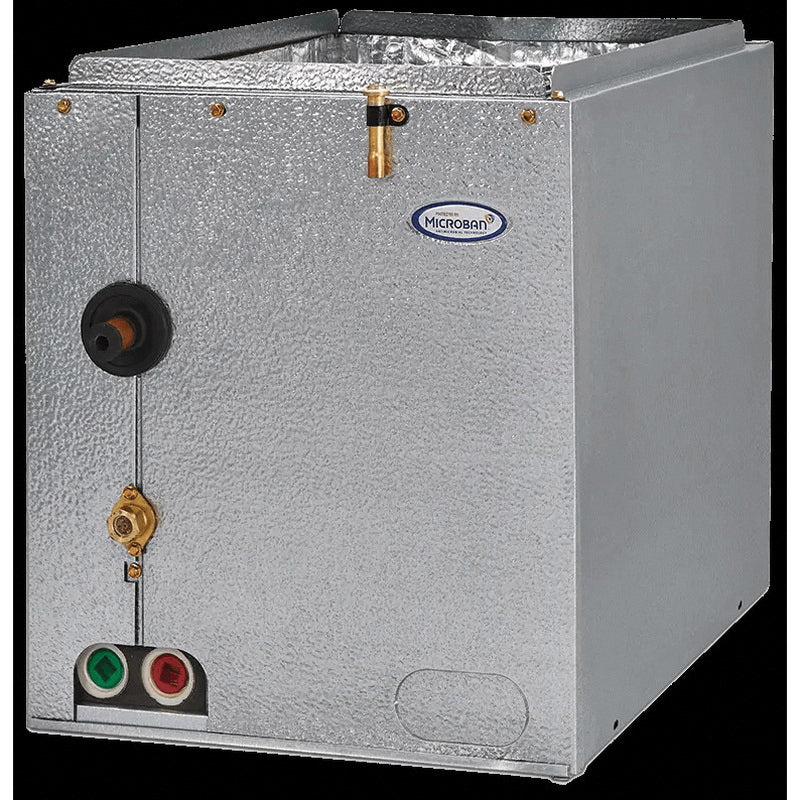

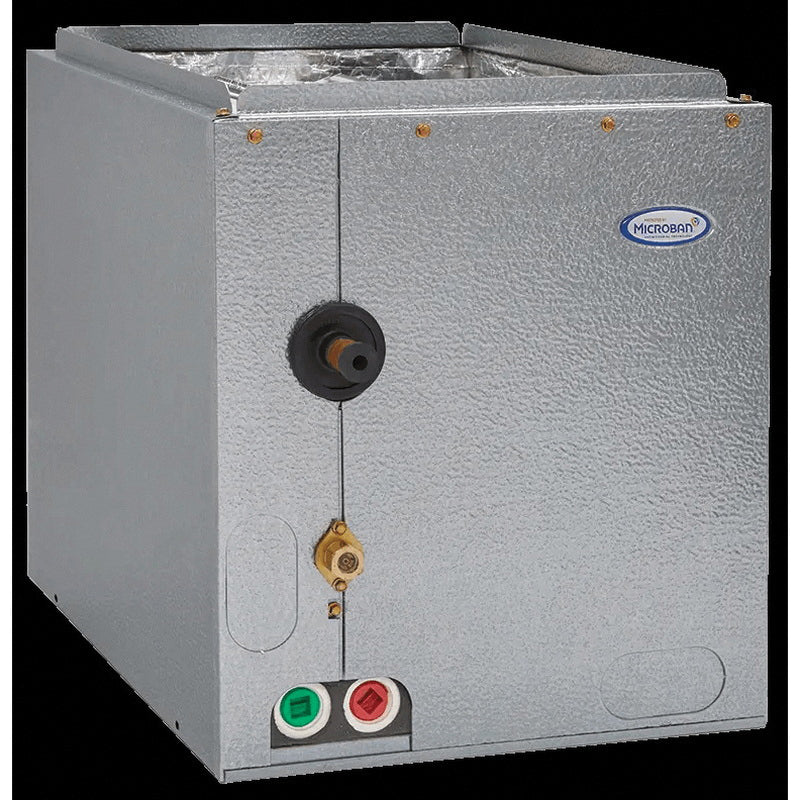

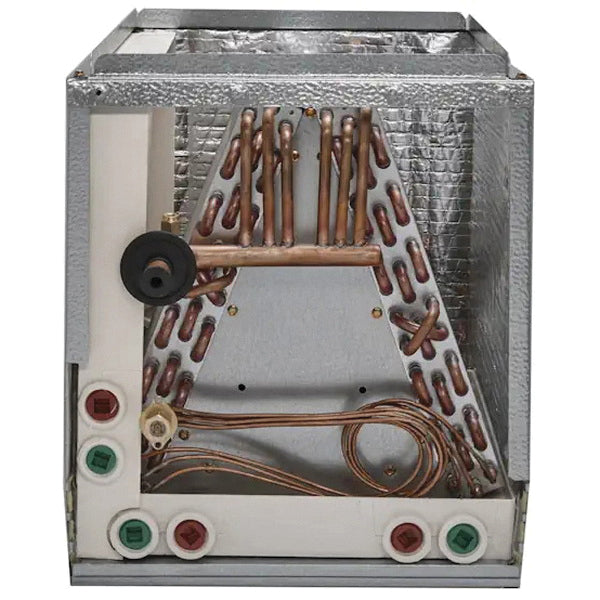

The ADP HE48948C245B2705AP is a Left Hand Cased Evaporator Coil designed for efficient cooling in multiple positions. This unit delivers a cooling capacity of 48000 Btu per hour and an air flow rate of 1600 cfm, making it suitable for various HVAC applications. The coil uses R-410A refrigerant and features a durable copper construction.

• Cooling capacity of 48000 Btu/hr
• Airflow rate of 1600 cfm
• 7/8 inch ODF connection

Product Highlights

This evaporator coil offers flexibility with its multi-position installation options.

Product Information

Standard Information

• Brand: ADP
• MPN: HE48948C245B2705AP

Technical Specifications

• BTU Rating: 48000 Btu/hr
• CFM Rating: 1600 cfm
• Coil Type: Left Hand Cased
• Configuration: Multi-Position
• Connection Size: 7/8 in
• Connection Type: ODF
• Dimensions: 27-1/2 in H x 24-1/2 in W x 20-1/2 in D
• Domestic/Import: Domestic
• Finish: Galvanized
• Material: Copper
• Piston Size: #76
• Pressure Rating: 500 psi
• Refrigerant Type: R-410A
• Series: HE Series
• Suitable For Use With: A1 Refrigerants
• Temperature Rating: 450 deg F
