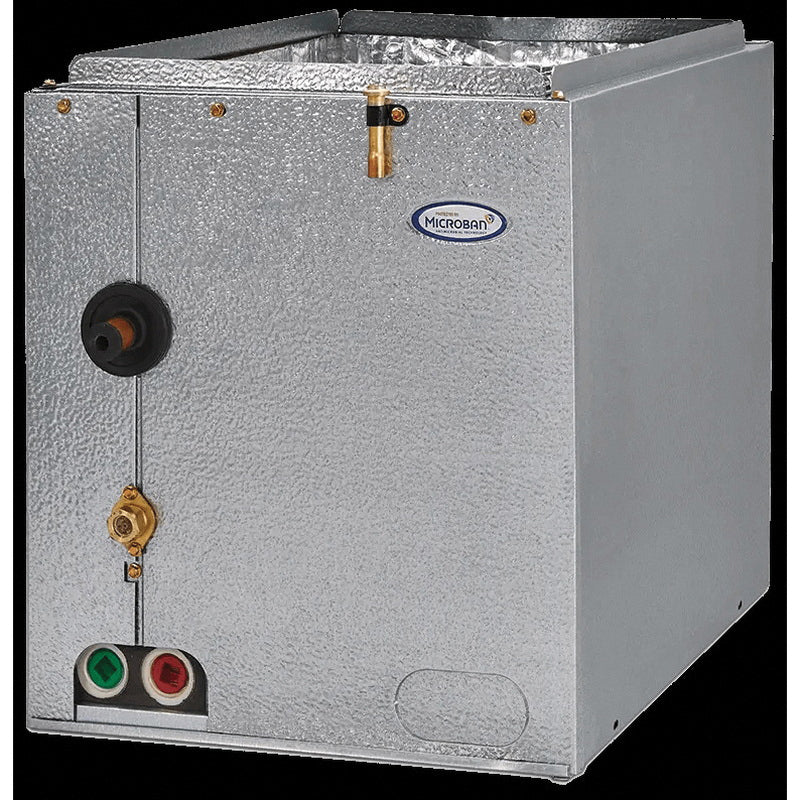

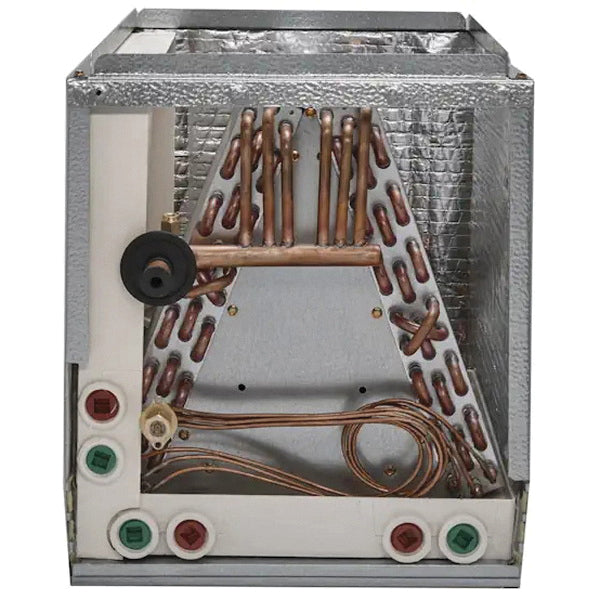

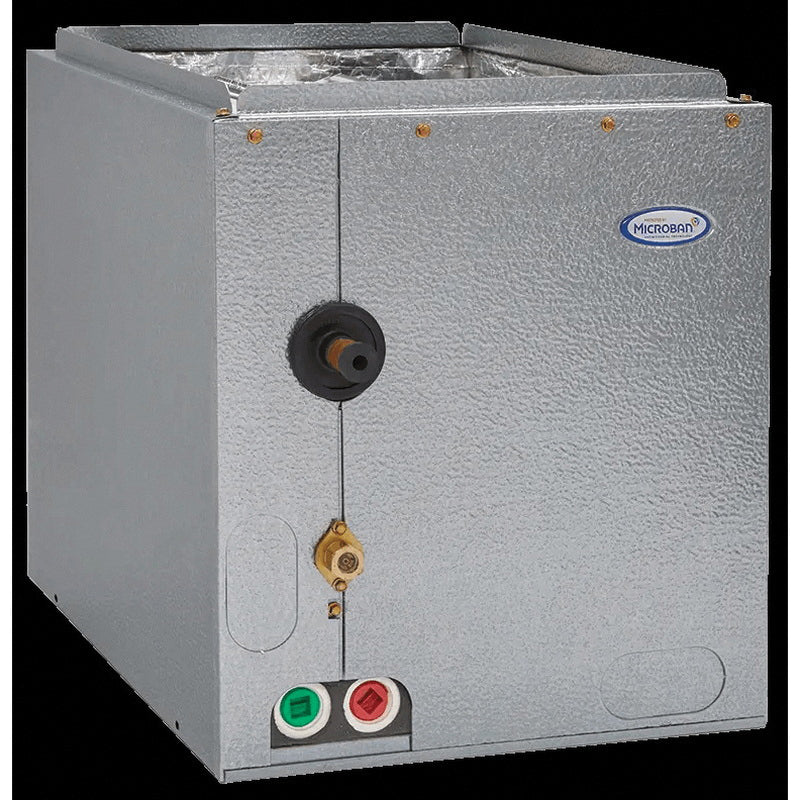

ADP HE47936C210B3122AP HE Series Evaporator Coil 36000 Btuhr Multi-Position Coil

Product Description

The ADP Evaporator Coil, MPN HE47936C210B3122AP, is a multi-position coil designed for efficient cooling. With a BTU rating of thirty-six thousand, this unit operates effectively at a CFM of twelve hundred. It is built to accommodate R-410A refrigerant and features a left-hand casing. The coil's design allows it to fit various furnace configurations, making it versatile for HVAC applications.

• Multi-position installation for various configurations
• Made of durable copper material
• Pressure rated at five hundred psi

Product Highlights

This evaporator coil is engineered for use with A1 refrigerants and supports optimal airflow.

Product Information

Standard Information

• Brand: ADP
• MPN: HE47936C210B3122AP

Technical Specifications

• BTU Rating: 36000 Btu/hr
• CFM Rating: 1200 cfm
• Coil Type: Left Hand Cased, Multi-Position
• Connection Size: 3/4 in
• Connection Type: ODF
• Dimensions: 31-1/2 in H x 21 in W x 20-1/2 in D
• Finish: Galvanized
• Material: Copper
• Piston Size: #67
• Pressure Rating: 500 psi
• Refrigerant Type: R-410A
• Series: HE Series
• Suitable For Use With: A1 Refrigerants
• Temperature Rating: 450 deg F
