ADP HE36936C145B2522AP HE Series Evaporator Coil 36000 Btu/hr Multi-Position

Product Description

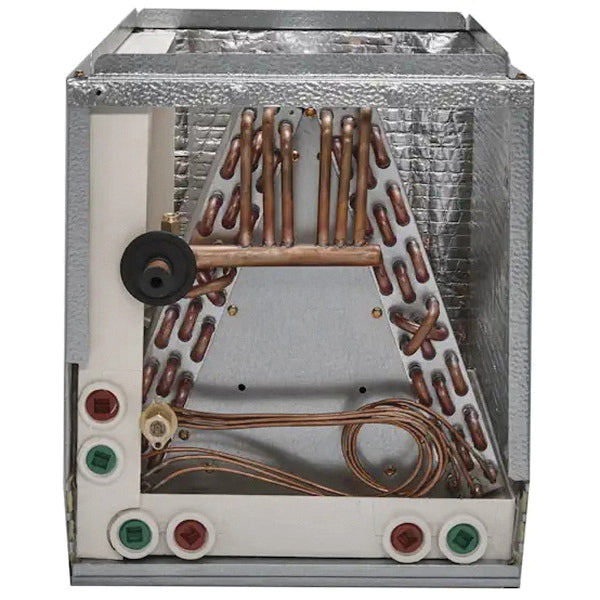

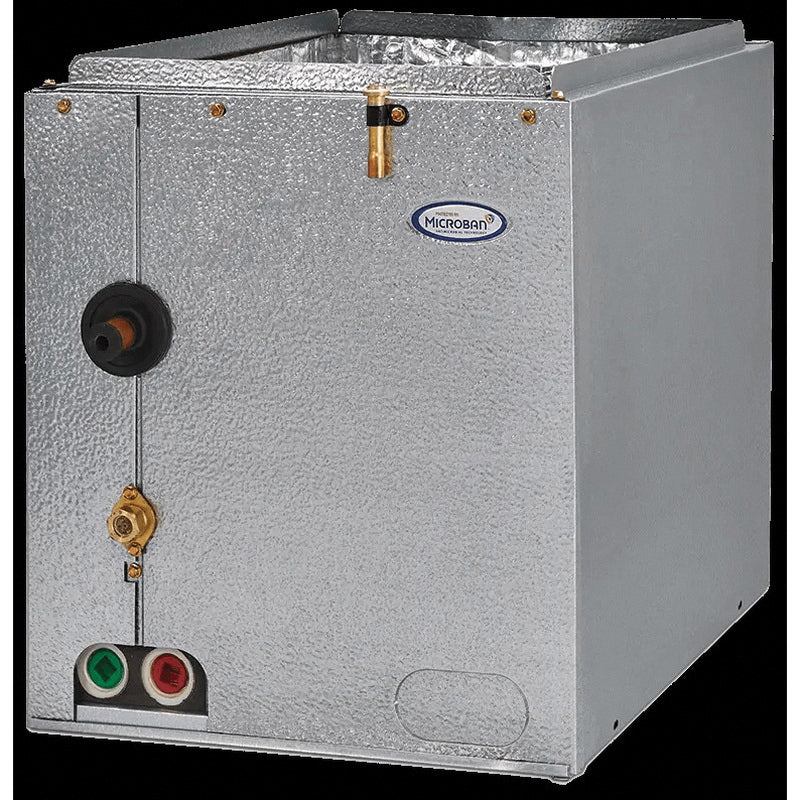

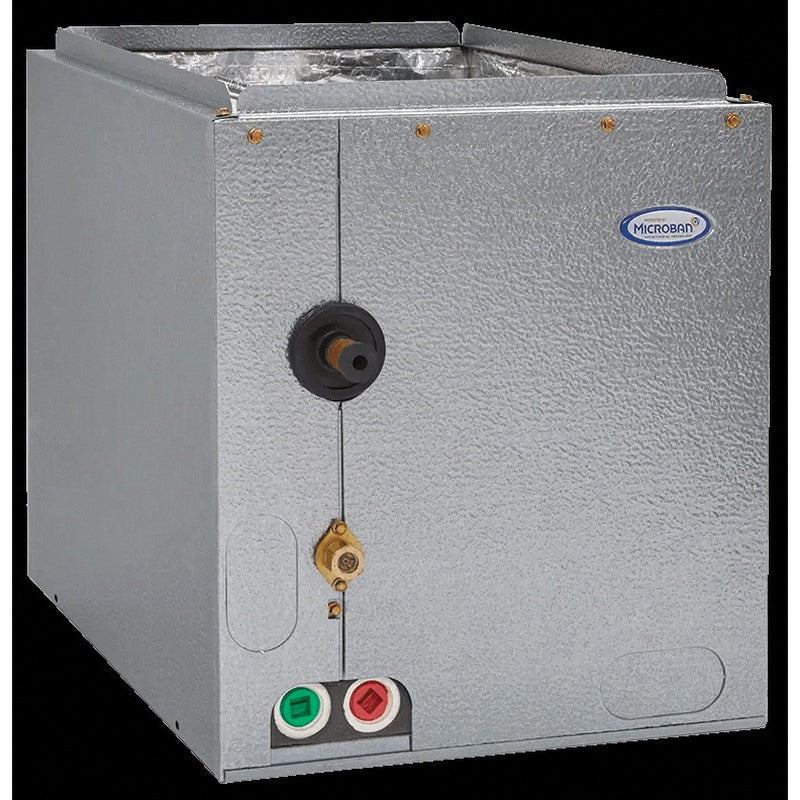

The ADP HE36936C145B2522AP is an evaporator coil designed for multi-position use. This coil supports a capacity of thirty-six thousand Btu per hour and can manage airflow up to twelve hundred cubic feet per minute. It features a left-hand casing that allows for easy installation in various configurations.

• Designed for R-410A refrigerants.
• Constructed with copper for durability.
• Includes built-in plenum flanges for efficient installation.

Product Highlights

This evaporator coil is engineered for flexibility and can work with a range of furnace sizes. It fits many applications due to its compact design and series features.

Product Information

Standard Information

• Brand: ADP
• MPN: HE36936C145B2522AP

Technical Specifications

• BTU Rating: 36000 Btu/hr
• CFM Rating: 1200 cfm
• Coil Type: Left Hand Cased, Multi-Position
• Connection Size: 3/4 in
• Connection Type: ODF
• Dimensions: 25-1/2 in H x 14-1/2 in W x 20-1/2 in D
• Material: Copper
• Pressure Rating: 500 psi
• Temperature Rating: 450 deg F
• Refrigerant Type: R-410A
• Finish: Galvanized
• Piston Size: #67
• Series: HE Series
• Domestic/Import: Domestic
• Suitable For Use With: A1 Refrigerants
