Adp he33136a200a0004s Uncased A-coil 3 Ton 20 in Left Upflow

Product Description

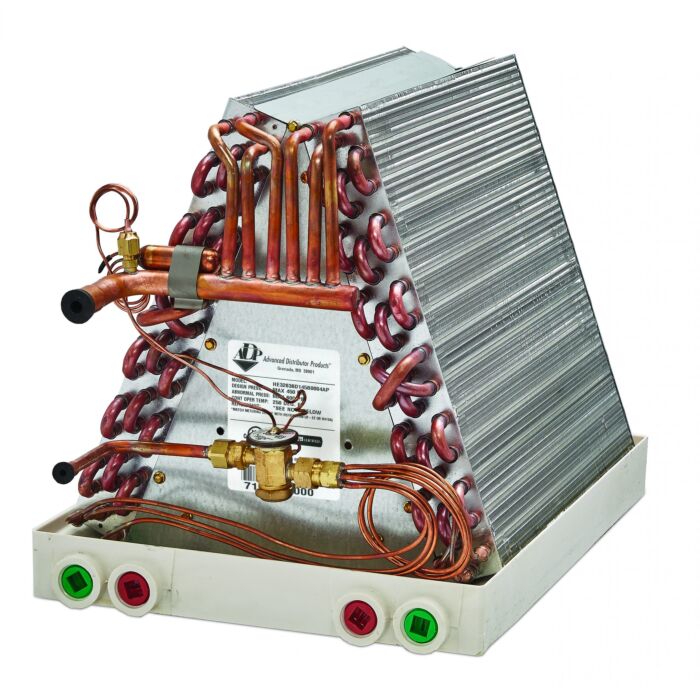

The ADVANCED DISTRIBUTOR PRODUCTS he33136a200a0004s is an uncased A-coil evaporator designed for upflow air handler and furnace applications. Built for R-410A refrigerant systems, this left-hand oriented coil ships ready for installation, reducing setup time in the field. At 3 tons of cooling capacity and 20 inches wide, it fits a common range of residential upflow configurations. Metering is handled by a fixed piston device, keeping the refrigerant circuit straightforward for replacement and service work. The coil includes Microban antimicrobial product protection to inhibit microbial growth on coil surfaces over the service life of the equipment.

This coil is intended for residential upflow HVAC installations where an uncased evaporator coil is required. The left-hand orientation suits specific cabinet and line-set configurations common in utility closet and basement installs. The piston metering device is compatible with fixed-orifice system designs. An extended 10-year warranty is available upon product registration, making this coil a serviceable long-term option for residential cooling systems. The FlexCoil construction is engineered to accommodate multiple refrigerant types, providing flexibility for evolving equipment requirements.

Key Features

• Uncased A-coil design for upflow installations at 3 ton capacity
• Left-hand orientation for specific cabinet and line-set configurations
• R-410A refrigerant compatible with fixed piston metering device
• 20-inch width fits common residential upflow air handler cabinets
• Microban antimicrobial protection on coil surfaces
• 10-year extended warranty available with product registration

Compatibility

Designed as an OEM-style uncased replacement evaporator coil for residential upflow HVAC systems using R-410A refrigerant with fixed piston metering.

Installation Notes

Installation should be performed by a licensed HVAC technician. Shut off all electrical power and close refrigerant service valves before removing the existing coil or making any refrigerant connections. Confirm cabinet width and left-hand line-set orientation before mounting. Leak-test all refrigerant joints after brazing and before system startup per local mechanical codes.

Technical Specifications

• Type: Uncased A-Coil
• Configuration: Upflow
• Orientation: Left Hand
• Capacity: 3 Ton
• Width: 20 inches
• Refrigerant: R-410A
• Metering Device: Piston

Standard Information

• Brand: ADVANCED DISTRIBUTOR PRODUCTS
• Manufacturer Part Number: he33136a200a0004s
