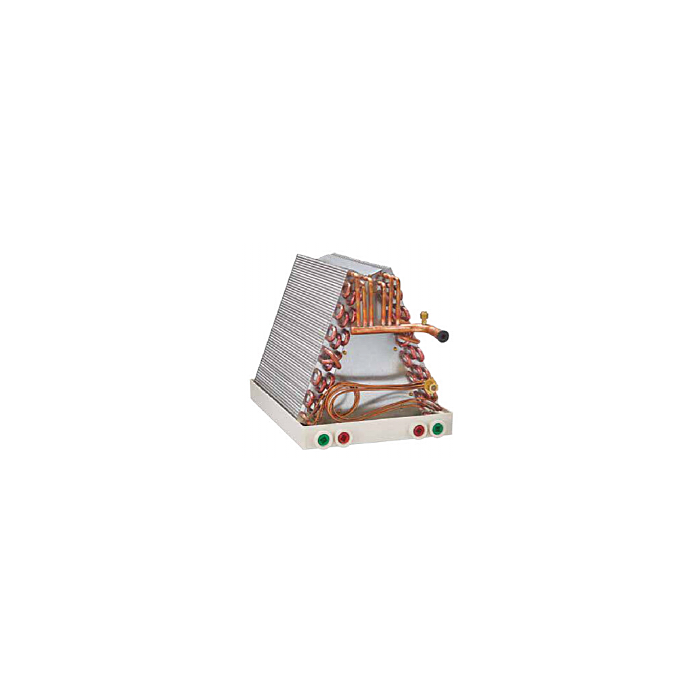

Adp he33136a200a0000s Uncased A-coil 3 Ton 20 in Right Hand

Product Description

The ADVANCED DISTRIBUTOR PRODUCTS he33136a200a0000s is an uncased A-coil evaporator designed for upflow air handler and furnace installations. Rated at 3 tons and built for R-410A refrigerant, it features a right-hand orientation and a 20-inch width. The piston metering device is factory-installed, simplifying field setup. Microban antimicrobial product protection is integrated into the coil construction, resisting microbial growth on coil surfaces over the service life of the unit. A 10-year extended warranty is available upon registration. Licensed HVAC technicians performing system replacements or new installations will find this coil engineered for straightforward fitment in upflow configurations.

This coil is suited for residential and light commercial upflow split-system applications using R-410A refrigerant. Its 20-inch width makes it compatible with a range of upflow air handlers and gas furnace platforms in that form factor. The right-hand orientation determines the suction-line and liquid-line exit point and must be confirmed against the air handler or furnace cabinet before ordering. The piston metering device is appropriate for standard split-system installations where a fixed orifice is specified by the system design.

Key Features

• R-410A refrigerant rated for current-generation split-system installations
• Right-hand orientation with upflow configuration for compatible cabinet fitment
• Factory-installed piston metering device reduces field assembly steps
• Integrated Microban antimicrobial protection on coil surfaces
• 20-inch width designed to match standard upflow air handler and furnace cabinets
• 10-year extended warranty available with product registration

Compatibility

Designed as an OEM-style uncased A-coil replacement or new-installation coil for upflow split systems using R-410A refrigerant. Confirm cabinet width, orientation, and metering device type against the air handler or furnace specifications before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local codes and manufacturer guidelines. Disconnect and lock out all electrical power and recover any system refrigerant before removing or installing the coil. Verify the cabinet orientation and line-set routing match the right-hand configuration before positioning the coil. After installation, leak-check all refrigerant connections and confirm proper system charge per the outdoor unit nameplate before returning the system to service.

Technical Specifications

• Type: Uncased A-Coil
• Configuration: Upflow
• Orientation: Right Hand
• Capacity: 3 Ton
• Width: 20 inches
• Refrigerant: R-410A
• Metering Device: Piston

Standard Information

• Brand: ADVANCED DISTRIBUTOR PRODUCTS
• Manufacturer Part Number: he33136a200a0000s
