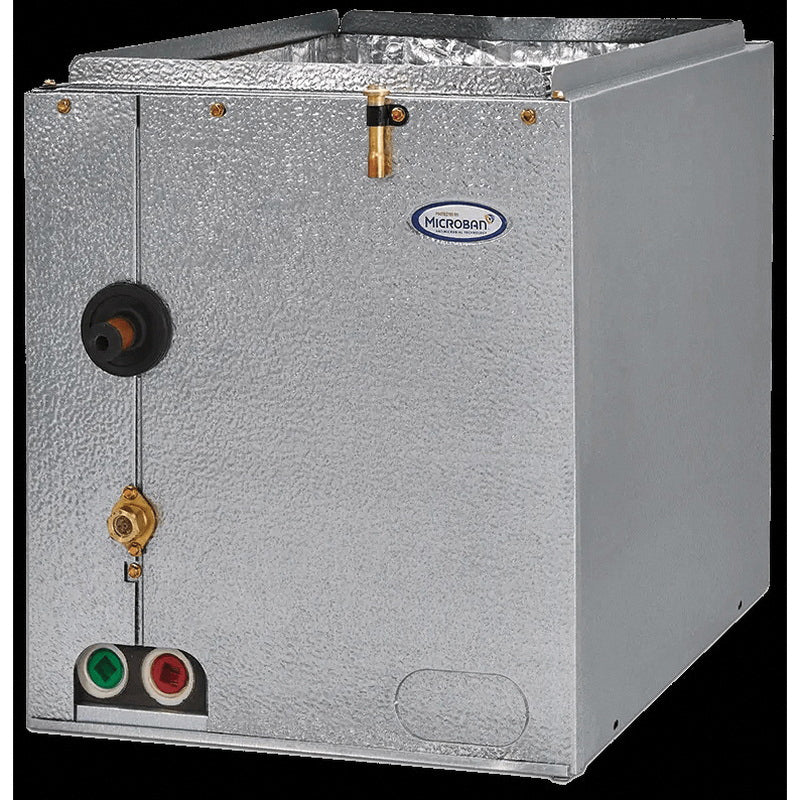

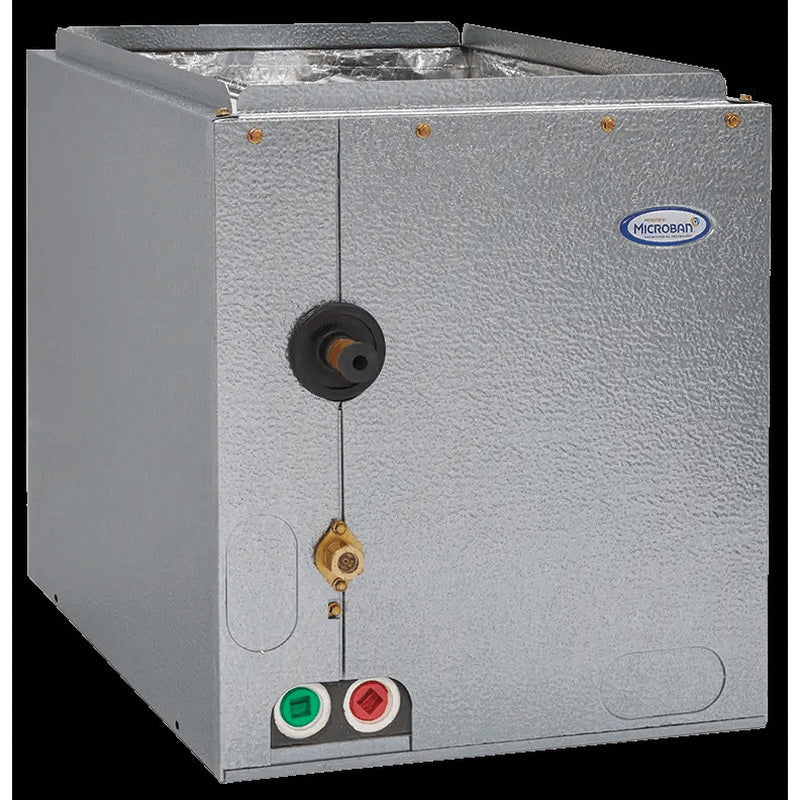

ADP HE32936C210B1605AP HE Series Evaporator Coil 36000 Btu/hr Left Hand Cased

Product Description

The ADP HE32936C210B1605AP is a HE Series evaporator coil designed for efficient cooling. This evaporator features a left hand cased design and has a cooling capacity of thirty-six thousand Btu per hour. It operates at one thousand two hundred CFM, making it suitable for various HVAC applications.

• Multi-position configurations for flexible installation.
• Compatible with R-410A refrigerants.
• Durable copper construction for reliable performance.

Product Highlights

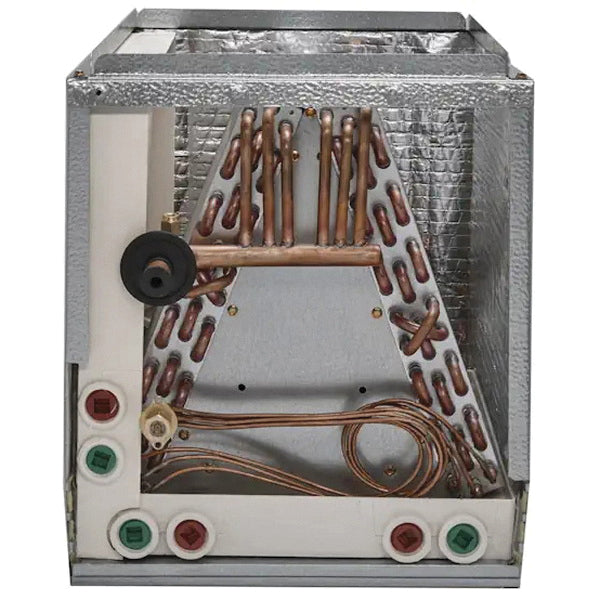

This evaporator coil is engineered for all refrigerants and is built with lower heights and variable widths to fit perfectly with furnaces. Its quick installation features include built-in plenum flanges and easy access to the coil for maintenance.

Product Information

Standard Information

• Brand: ADP
• MPN: HE32936C210B1605AP

Technical Specifications

• BTU Rating: 36000 Btu/hr
• CFM Rating: 1200 cfm
• Coil Type: Left Hand Cased
• Configuration: Multi-Position
• Connection Size: 3/4 in
• Connection Type: ODF
• Dimensions: 16-1/2 in H x 21 in W x 20-1/2 in D
• Material: Copper
• Finish: Galvanized
• Piston Size: #67
• Pressure Rating: 500 psi
• Refrigerant Type: R-410A
• Temperature Rating: 450 deg F
• Suitable For Use With: A1 Refrigerants
• Domestic/Import: Domestic
