Adp HE32136A170A0004S Uncased A-coil 3 Ton 17 in Left Hand

Product Description

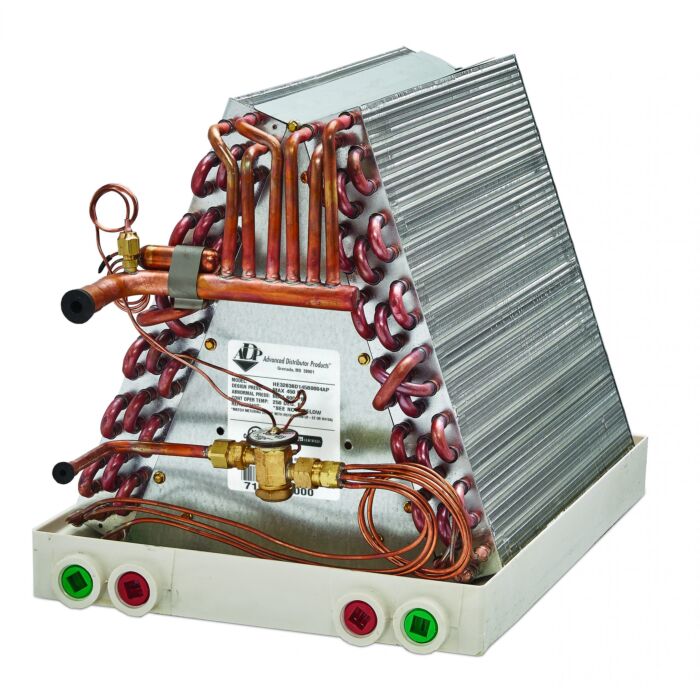

The ADVANCED DISTRIBUTOR PRODUCTS HE32136A170A0004S is an uncased evaporator A-coil designed for residential and light-commercial split-system air conditioning and heat pump applications. Rated at 3 tons and sized at 17 inches wide with a left-hand orientation, this coil is configured for upflow and downflow installations. It uses R-410A refrigerant and a piston metering device. The uncased design allows contractors to fit the coil into existing or custom plenums with maximum flexibility. Built-in plenum flanges with rounded corners speed up installation and reduce handling injuries during setup. The coil is installed by licensed HVAC technicians as part of a matched refrigerant system.

This coil is suited for upflow and downflow furnace-based split systems where an uncased coil is preferred for dimensional flexibility. The 17-inch width accommodates a range of standard furnace cabinet widths. The left-hand orientation determines line-set exit direction and must be confirmed against the installation layout before ordering. The piston metering device is a fixed-orifice design, appropriate for single-stage and standard efficiency systems. Access to the coil is simplified by the front panel, which requires only four screws to remove, and refrigerant lines are non-captive for straightforward service.

Key Features

• Uncased A-coil design for maximum installation flexibility in custom or existing plenums
• Upflow and downflow configuration supports common furnace orientations
• Left-hand refrigerant line orientation — verify against job layout before installation
• Piston metering device provides reliable fixed-orifice refrigerant control
• Built-in plenum flanges with rounded corners for fast, safe duct connection
• Four-screw front panel and non-captive refrigerant lines for quick coil access during service

Compatibility

Designed as an OEM-style uncased evaporator coil for use in residential and light-commercial upflow and downflow split systems using R-410A refrigerant. Confirm system tonnage, cabinet width, and line-set orientation match before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification for R-410A refrigerant handling. Shut down and de-energize the entire system, including the air handler or furnace and outdoor condensing unit, before beginning coil installation or replacement. Verify that the existing or new plenum dimensions are compatible with the 17-inch coil width and confirm left-hand line-set routing matches the job-site layout. Follow manufacturer instructions and applicable mechanical codes for leak testing, evacuation, and refrigerant charging after installation.

Technical Specifications

• Configuration: Upflow / Downflow
• Type: Uncased Coil
• Capacity: 3 Ton
• Width: 17 inches
• Orientation: Left Hand
• Refrigerant: R-410A
• Metering Device: Piston
• UPC: 1P70411220

Standard Information

• Brand: ADVANCED DISTRIBUTOR PRODUCTS
• Manufacturer Part Number: HE32136A170A0004S
