Adp he32136a155a0004s Uncased A-coil 3 Ton 15.5 in Left Upflow

Product Description

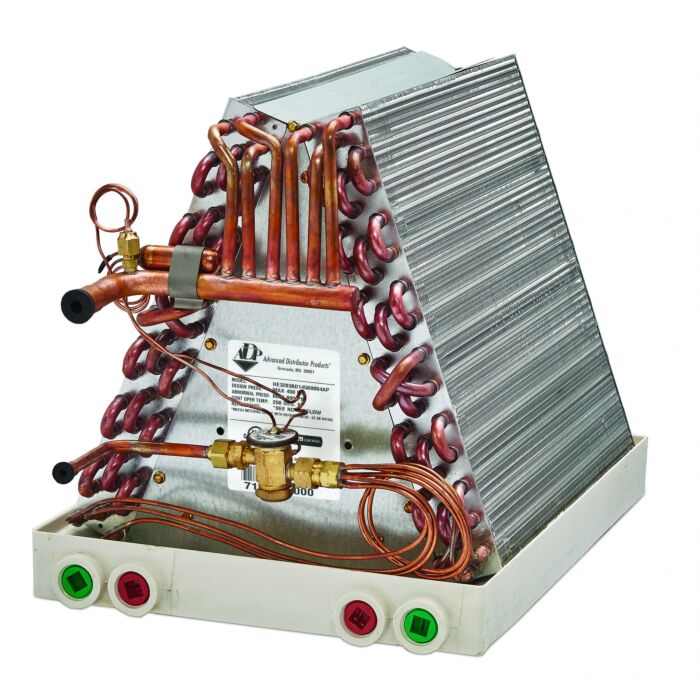

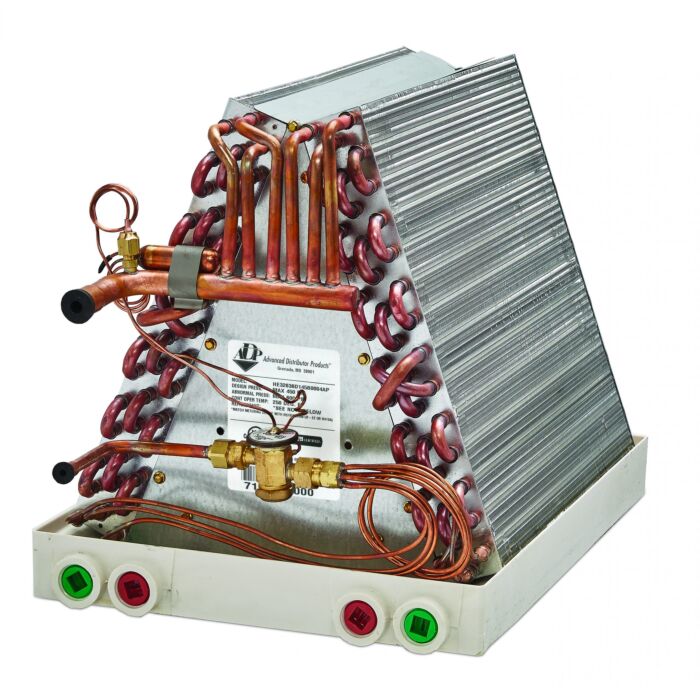

The ADVANCED DISTRIBUTOR PRODUCTS he32136a155a0004s is an uncased A-coil evaporator designed for left-hand, upflow HVAC installations. Built for residential split-system cooling applications, this coil operates on R-410A refrigerant and uses a piston metering device for refrigerant flow control. At 3 tons of cooling capacity and 15.5 inches wide, it fits a standard range of upflow air handler and furnace configurations. Microban anti-microbial product protection is integrated into the coil construction to resist mold and microbial growth over the service life of the unit. An extended 10-year warranty is available upon registration.

This coil is intended for upflow evaporator coil applications in residential split-system cooling or heat pump systems. The left-hand orientation refers to the suction line connection side and must be confirmed against the air handler or furnace cabinet layout before ordering. The uncased design allows installation directly into a matching coil cabinet or a furnace plenum where the installer supplies the enclosure. HVAC technicians installing new systems or replacing existing evaporator coils in upflow configurations are the primary installers of this product.

Key Features

• R-410A refrigerant compatible with piston metering device included
• Left-hand orientation for suction line connection
• Upflow configuration for use with upflow air handlers and furnaces
• Microban anti-microbial protection integrated into coil materials
• Uncased design for installer-supplied cabinet or plenum enclosure
• 10-year extended warranty available with product registration

Compatibility

Designed as an OEM-style uncased A-coil replacement or new-installation evaporator coil for upflow residential split-system and heat pump applications requiring a 15.5-inch-wide, left-hand coil with piston metering and R-410A refrigerant.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power and recover any refrigerant from the system before removing an existing coil or connecting the new coil, in accordance with EPA Section 608 regulations. Confirm left-hand orientation and cabinet width compatibility before installation, as incorrect orientation will require a different coil. All refrigerant connections must be brazed and leak-tested before system startup.

Technical Specifications

• Capacity: 3 Ton
• Configuration: Upflow
• Orientation: Left Hand
• Type: Uncased A-Coil
• Refrigerant: R-410A
• Metering Device: Piston
• Width: 15.5 inches
• UPC: 1P70410720

Standard Information

• Brand: ADVANCED DISTRIBUTOR PRODUCTS
• Manufacturer Part Number: he32136a155a0004s
