Adp he32136a155a0000s Uncased A-coil 3 Ton 15.5 in Right Hand

Product Description

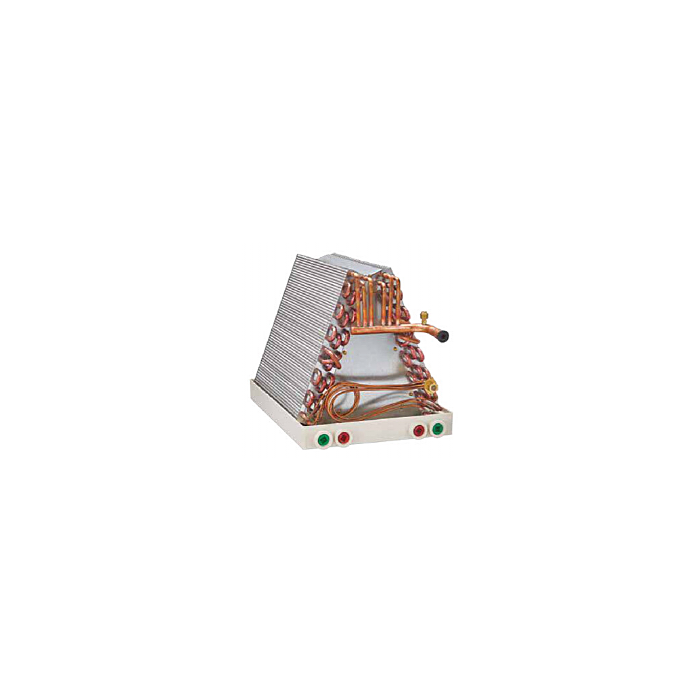

The ADVANCED DISTRIBUTOR PRODUCTS he32136a155a0000s is an uncased A-coil evaporator designed for upflow air handler and furnace applications. Rated at 3 tons, it measures 15.5 inches wide and is configured for right-hand orientation. The coil uses a piston metering device and is charged for R-410A refrigerant systems. Microban antimicrobial product protection is built into the coil to inhibit microbial growth on the coil surface between service visits. This unit ships ready for installation, reducing field prep time. HVAC technicians install this coil as part of a split-system cooling or heat pump setup.

This evaporator coil is suited for residential upflow split-system installations where a 3-ton capacity is required. The right-hand orientation directs the refrigerant connections to the right side of the unit, which must match the field piping layout. The 15.5-inch width fits standard air handler cabinet openings designed for that coil size. A 10-year extended warranty is available upon product registration. The FlexCoil design is engineered to be compatible with multiple refrigerant types, though this unit is configured for R-410A.

Key Features

• 3-ton cooling capacity in a 15.5-inch wide uncased A-coil form factor
• Right-hand orientation for field piping alignment
• Piston metering device included — no TXV required for standard applications
• Microban antimicrobial protection built into coil materials
• FlexCoil construction engineered for compatibility across refrigerant types
• 10-year extended warranty available with product registration

Compatibility

Designed as an OEM-style upflow uncased evaporator coil replacement or new installation component for residential split-system cooling and heat pump applications requiring a 3-ton, 15.5-inch wide, right-hand configured coil with piston metering and R-410A refrigerant.

Installation Notes

Installation of this evaporator coil must be performed by a licensed HVAC technician. Shut down and lock out the air handler and disconnect all electrical power before beginning coil installation. Verify that the field refrigerant piping layout matches the right-hand connection orientation before mounting. Braze refrigerant connections per local mechanical codes and pressure-test the system before evacuating and charging with R-410A.

Technical Specifications

• Configuration: Upflow
• Type: Uncased A-Coil
• Capacity: 3 Ton
• Width: 15.5 inches
• Orientation: Right Hand
• Metering Device: Piston
• Refrigerant: R-410A
• UPC: 1P70014920

Standard Information

• Brand: ADVANCED DISTRIBUTOR PRODUCTS
• Manufacturer Part Number: he32136a155a0000s
