Adp HE31130D145B1605AP Cased Evaporator Coil 1.5-2.5 Ton

Product Description

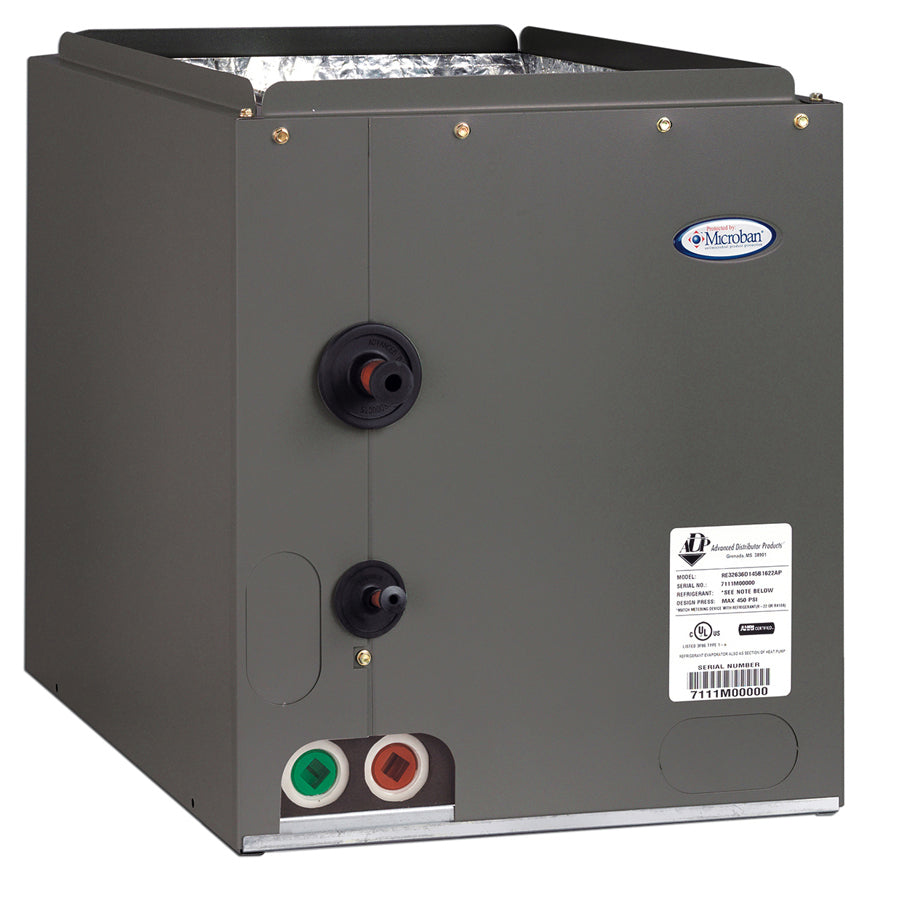

The ADP HE31130D145B1605AP is a cased evaporator coil designed for residential split-system air conditioning and heat pump applications. It uses a fixed piston metering device to control refrigerant flow into the coil, providing a straightforward, reliable expansion method suited to standard efficiency systems. Rated for 1.5 to 2.5 nominal tons of cooling capacity, this coil measures 14.5 inches wide, 16.5 inches tall, and 20.5 inches deep. The cased design encloses the coil assembly in a factory-built cabinet, simplifying installation and protecting the fins during handling. HVAC technicians install this coil as the indoor heat-transfer component of a split system, typically mounting it above or below a gas furnace or air handler.

The HE31130D145B1605AP supports multi-position installation, meaning it can be oriented for upflow, downflow, or horizontal airflow configurations depending on the equipment layout. This flexibility makes it suitable for a range of residential installations where the indoor unit placement varies by jobsite. It is typically paired with a matched condensing unit and indoor air handler or furnace within the 1.5 to 2.5 ton capacity range. The piston metering device is selected to match the system refrigerant type and capacity at the time of installation.

Key Features

• Nominal cooling capacity range of 1.5 to 2.5 tons suits a wide range of residential systems
• Multi-position orientation supports upflow, downflow, and horizontal installations
• Fixed piston metering device provides reliable, low-maintenance refrigerant flow control
• Cased enclosure protects coil fins and simplifies field installation
• Compact footprint at 14.5 x 16.5 x 20.5 inches fits standard furnace and air handler cabinets

Compatibility

Designed as an OEM-style replacement or new-installation cased evaporator coil for residential split-system air conditioning and heat pump systems in the 1.5 to 2.5 nominal ton range. Verify refrigerant type, piston sizing, and airflow requirements against the matched condensing unit before installation.

Installation Notes

Installation should be performed by an EPA Section 608 certified HVAC technician. Shut down and de-energize the full system and recover any refrigerant before disconnecting or replacing the coil. Confirm the piston size is correct for the system refrigerant type and capacity prior to startup. Follow applicable local mechanical codes and the equipment manufacturer installation instructions for drain pan, condensate line, and duct connection requirements.

Technical Specifications

• Casing: Cased
• Nominal Capacity: 1.5 to 2.5 tons
• Orientation: Multi-position
• Width: 14.5 inches
• Height: 16.5 inches
• Depth: 20.5 inches
• Metering Device: Piston

Standard Information

• Brand: ADP
• Manufacturer Part Number: HE31130D145B1605AP
