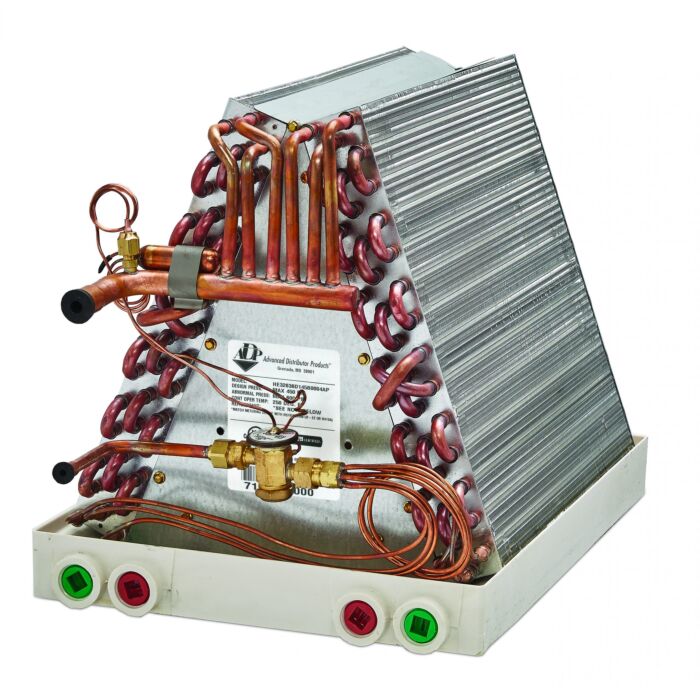

Adp he30124a155a0004s Uncased A-coil 2 Ton 15.5 in Left Hand

Product Description

The ADVANCED DISTRIBUTOR PRODUCTS he30124a155a0004s is an uncased A-coil evaporator designed for upflow air handler and furnace installations. Oriented for left-hand connections, this 2-ton coil measures 15.5 inches wide and uses a piston metering device with R-410A refrigerant. It is engineered to drop into upflow configurations with minimal field modification, reducing installation time for HVAC technicians. Microban antimicrobial product protection is built into the coil construction to inhibit microbial growth on the coil surface over the service life of the unit.

This coil is suited for residential upflow split-system cooling applications where an uncased evaporator coil is required. The left-hand orientation is specified for systems where suction and liquid line connections exit from the left side of the coil. The piston metering device makes this coil compatible with fixed-orifice refrigerant circuit designs. A 10-year extended warranty is available upon product registration. The FlexCoil design is engineered to operate across multiple refrigerant types, providing flexibility for system configurations.

Key Features

• Left-hand orientation for upflow installations with left-side line connections
• Piston metering device for fixed-orifice refrigerant circuit compatibility
• R-410A refrigerant rated
• Microban antimicrobial protection built into coil materials
• FlexCoil design engineered for multiple refrigerant types
• 10-year extended warranty available with product registration

Compatibility

Designed as an OEM-style uncased upflow evaporator coil replacement or new-installation component for residential split-system cooling applications requiring a left-hand, 15.5-inch wide, 2-ton A-coil with piston metering and R-410A refrigerant.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local mechanical codes and the equipment manufacturer guidelines. Disconnect and lock out all electrical power to the air handler or furnace before handling or connecting the coil. Confirm left-hand orientation matches the existing or planned line set routing before securing the coil in the cabinet. All refrigerant handling must comply with EPA Section 608 regulations by a certified technician.

Technical Specifications

• Type: Uncased A-Coil
• Configuration: Upflow
• Orientation: Left Hand
• Capacity: 2 Ton
• Width: 15.5 inches
• Metering Device: Piston
• Refrigerant: R-410A

Standard Information

• Brand: ADVANCED DISTRIBUTOR PRODUCTS
• Manufacturer Part Number: he30124a155a0004s
