Adp he30124a155a0000s Uncased A-coil 2 Ton 15.5 in Right Hand

Product Description

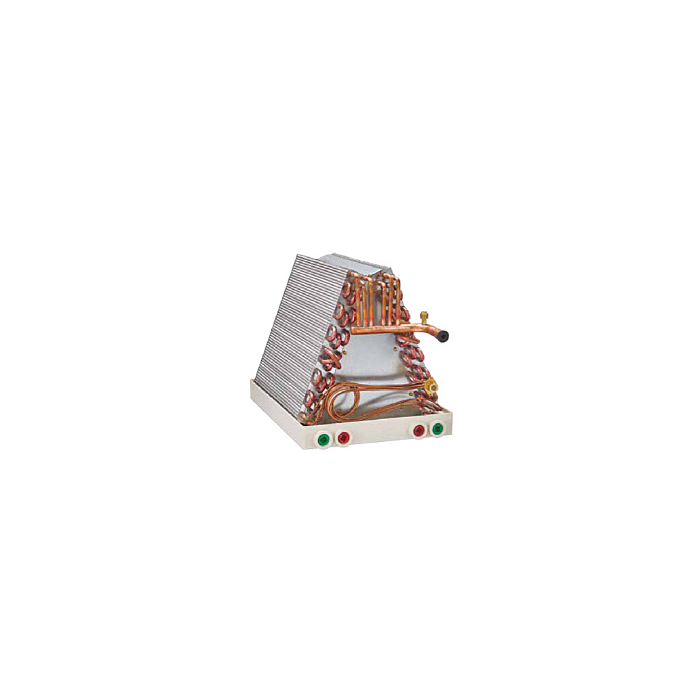

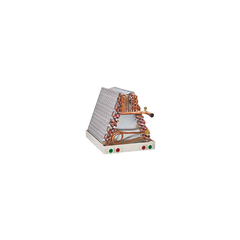

The ADVANCED DISTRIBUTOR PRODUCTS he30124a155a0000s is an uncased A-coil designed for upflow and downflow air handler and furnace applications. At 15.5 inches wide and rated for 2-ton systems, this coil uses a piston metering device and is compatible with R-410A refrigerant. The right-hand orientation suits specific equipment configurations where line sets enter from the right side. Built-in plenum flanges with rounded corners speed up installation and reduce the risk of hand injuries during handling. The uncased design allows integration into a variety of cabinet assemblies and is suited for licensed HVAC technicians performing new installations or coil replacements.

This coil is intended for residential upflow and downflow furnace or air handler systems requiring a 2-ton evaporator coil with a 15.5-inch width profile. The uncased format accommodates installations where the surrounding cabinet or casing is already in place or where a custom enclosure is used. The right-hand refrigerant line orientation must be matched to the existing equipment layout before ordering. Front panel access with only four screws and non-captive refrigerant lines allow for faster coil service once installed.

Key Features

• Uncased A-coil design for flexible cabinet integration in upflow and downflow configurations
• 15.5-inch width fits furnace footprints requiring lower-profile evaporator coils
• Piston metering device included — no TXV required for compatible systems
• R-410A refrigerant compatible
• Built-in plenum flanges with rounded corners for faster, safer installation
• Four-screw front panel access with non-captive refrigerant lines for simplified servicing

Compatibility

Designed as an OEM-style uncased evaporator A-coil for residential upflow and downflow furnace or air handler systems rated at 2 tons and requiring a 15.5-inch wide coil with right-hand refrigerant line orientation and R-410A refrigerant.

Installation Notes

Installation must be performed by a licensed HVAC technician. Always recover system refrigerant and de-energize all electrical power to the air handler or furnace before removing or installing the coil. Verify that the right-hand line orientation aligns with the existing refrigerant piping before mounting. Follow local mechanical codes and manufacturer guidelines for brazing, leak testing, and system evacuation before recharging with R-410A.

Technical Specifications

• Type: Uncased A-Coil
• Configuration: Upflow / Downflow
• Orientation: Right Hand
• Capacity: 2 Ton
• Width: 15.5 inches
• Metering Device: Piston
• Refrigerant: R-410A

Standard Information

• Brand: ADVANCED DISTRIBUTOR PRODUCTS
• Manufacturer Part Number: he30124a155a0000s
