Adp he30124a130a0000s Uncased A-coil 2 Ton 13 in Right Hand

Product Description

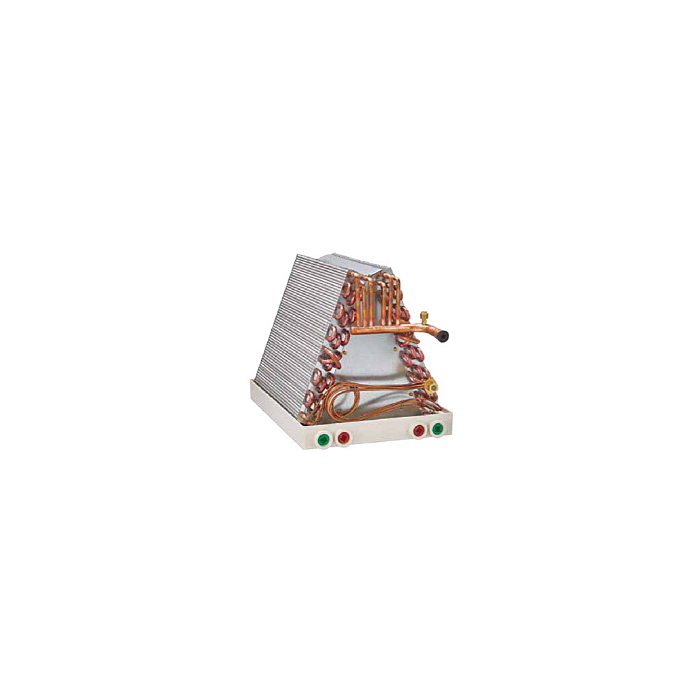

The ADVANCED DISTRIBUTOR PRODUCTS he30124a130a0000s is an uncased evaporator A-coil designed for residential and light commercial split-system air conditioning and heat pump installations. Built in a right-hand orientation with a 13-inch width, this coil fits upflow and downflow furnace configurations where cabinet space and height clearance are a priority. The piston metering device provides reliable refrigerant control with R-410A refrigerant systems. Installation is streamlined by built-in plenum flanges with rounded corners and a front panel secured by only four screws, giving technicians fast access to the coil and refrigerant lines without disassembling the surrounding cabinet.

This coil is suited for residential split systems requiring a 2-ton uncased evaporator coil in a right-hand configuration. The uncased design is intended for installations where the coil is mounted directly inside a furnace or air handler cabinet, with the existing cabinet providing the enclosure. The 13-inch width accommodates furnace cabinets with tighter footprints, and the upflow and downflow compatibility makes it adaptable to a range of duct system layouts commonly found in residential construction.

Key Features

• Uncased A-coil design for direct installation inside existing furnace or air handler cabinets
• Right-hand orientation with 13-inch width to fit compact furnace cabinets
• Compatible with R-410A refrigerant systems
• Piston metering device for straightforward refrigerant flow control
• Built-in plenum flanges with rounded corners for faster, safer installation
• Four-screw front panel access with non-captive refrigerant lines for quick coil servicing

Compatibility

Designed as an OEM-style uncased evaporator A-coil replacement for residential upflow and downflow split-system air conditioning and heat pump applications using R-410A refrigerant.

Installation Notes

Installation should be performed by a licensed HVAC technician holding an EPA Section 608 certification, as this coil operates with R-410A refrigerant. Disconnect and lock out all electrical power and shut off the refrigerant supply before removing an existing coil or positioning this unit. Verify the cabinet dimensions and orientation requirements before installation to confirm the right-hand configuration matches the field installation. Follow all applicable mechanical and refrigeration codes for brazing, leak testing, and system evacuation before recharging.

Technical Specifications

• Type: Uncased A-Coil
• Capacity: 2 Ton
• Configuration: Upflow / Downflow
• Orientation: Right Hand
• Width: 13 inches
• Refrigerant: R-410A
• Metering Device: Piston

Standard Information

• Brand: ADVANCED DISTRIBUTOR PRODUCTS
• Manufacturer Part Number: he30124a130a0000s
