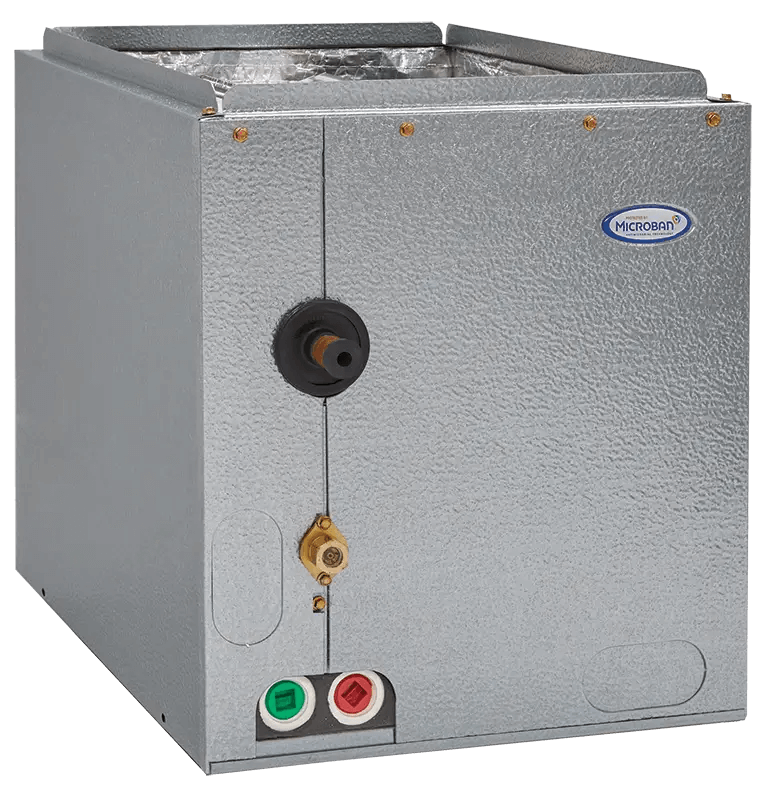

ADP HE24936C210B2005AP 3.0 Ton R-410A Multi-Position Cased-Coil

Product Description

The ADP HE24936C210B2005AP 3.0 Ton R-410A Multi-Position Cased-Coil is designed for residential air conditioning and heat pump systems. This coil is versatile for various installation positions including upflow, downflow, and horizontal, making it adaptable for both new setups and replacements.

• Efficient heat transfer with copper tubing and a high-efficiency design.
• Factory-installed TXV for optimal refrigerant flow management.
• Durable cabinet minimizes air leakage and ensures reliability.

Product Highlights

This cased evaporator coil features a rugged construction with a reduced air leakage design and a drain pan that inhibits mold growth, which simplifies maintenance and enhances reliability.

Product Information

Standard Information

• Brand: ADP
• MPN: HE24936C210B2005AP

Technical Specifications

• Air Flow Direction: Upflow, Downflow, Horizontal, Multi-Position
• BTU Rating: 36,000 BTU/h
• Coil Casing: Cased
• Coil Material: Copper
• Depth: 20.5 inches
• Drain Pan Material: Composite, Polymer
• Height: 20.5 inches
• Model Number: HE
• Product Family: HE Series
• Product Weight: 53 lbs
• Refrigerant Type: R-410A
• Refrigeration Control Type: TXV
• Suction Line Size: 3/4 inches
• Tonnage: 3.0 Ton
• Width: 21 inches
