Adp HE1K936A170A0000AP Uncased Evaporator Coil 2.5-3 Ton

Product Description

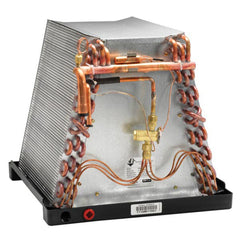

The ADP HE1K936A170A0000AP is an uncased evaporator coil rated for 2.5 to 3 nominal tons of cooling capacity. It ships with an integrated TXV (thermostatic expansion valve), which precisely meters refrigerant flow and improves system efficiency across varying load conditions. The coil is designed for installation in split-system air conditioning and heat pump applications. Its multi-position orientation allows HVAC technicians to configure it for upflow, downflow, or horizontal airflow depending on the equipment layout. The right-hand piping configuration suits installations where refrigerant line sets enter from that side of the air handler or furnace cabinet.

This coil is suited for residential and light-commercial split-system installations where a matched uncased coil is specified. The uncased design allows it to be mounted directly within a compatible air handler cabinet or over a furnace, making it a common choice on new installations and coil replacements where the existing cabinet is retained. The right-hand orientation and multi-position flexibility make it adaptable to a range of duct and equipment configurations. Installers should verify nominal tonnage match with the condensing unit before installation.

Key Features

• Nominal capacity of 2.5 to 3 tons for residential and light-commercial split systems
• Includes factory-installed TXV for accurate refrigerant metering and improved EER
• Multi-position orientation supports upflow, downflow, and horizontal configurations
• Uncased design for direct mounting inside an air handler or furnace cabinet
• Right-hand piping orientation for compatible line-set entry configurations
• Compact footprint: 17 inches wide, 21 inches tall, 19.5 inches deep

Compatibility

Designed as an OEM-style replacement or new-installation uncased evaporator coil for residential split-system air conditioners and heat pumps in the 2.5 to 3 ton range.

Installation Notes

Installation should be performed by a licensed HVAC technician holding an EPA Section 608 refrigerant handling certification. Disconnect and lock out all electrical power and shut off refrigerant service valves before opening the refrigerant circuit. Verify that the coil orientation and piping connections align with the existing line set and drain configuration before securing the coil in place. Leak-test all brazed and flare connections after installation and confirm proper condensate drainage before returning the system to service.

Technical Specifications

• Nominal Capacity: 2.5-3 Ton
• Orientation: Multi-position
• Casing: Uncased
• Piping Side: Right-hand
• Expansion Device: TXV (thermostatic expansion valve)
• Width: 17 inches
• Height: 21 inches
• Depth: 19.5 inches

Standard Information

• Brand: ADP
• Manufacturer Part Number: HE1K936A170A0000AP
