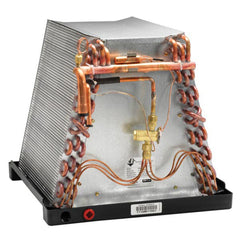

Adp HE1K936A140A0000AP Evaporator Coil 2.5-3 Ton Uncased

Product Description

The ADP HE1K936A140A0000AP is an uncased evaporator coil rated for 2.5 to 3 ton systems, designed for use in residential and light-commercial split-system air conditioning and heat pump applications. It ships with an integrated TXV (thermostatic expansion valve), which meters refrigerant flow to maintain efficient system operation across varying load conditions. The coil is configured for right-hand connections and supports multi-position installation. At 14 inches wide, 21 inches tall, and 19.5 inches deep, it fits a range of air handler and furnace applications where an uncased coil is the specified choice. Licensed HVAC technicians handle installation and commissioning.

This coil is suited for residential split-system installations where the coil is mounted directly to a matching air handler or furnace cabinet without a separate coil case. The multi-position design allows installation in upflow, downflow, or horizontal configurations depending on system layout. The included TXV simplifies the refrigerant circuit by eliminating a separate metering device installation step. Applications include new construction and replacement work in residential and light-commercial settings.

Key Features

• Nominal capacity range of 2.5 to 3 tons for flexible system matching
• Uncased design for direct integration with compatible air handler or furnace cabinets
• Integrated TXV eliminates need for a separate metering device
• Multi-position orientation supports upflow, downflow, and horizontal installs
• Right-hand connection configuration

Compatibility

Designed as an OEM-style replacement uncased evaporator coil for residential and light-commercial split-system HVAC equipment in the 2.5 to 3 ton capacity range.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification for handling refrigerants. Disconnect and lock out all electrical power and shut off the refrigerant circuit before beginning coil replacement. Follow the system manufacturer guidelines for line set connections, leak testing, evacuation, and refrigerant charging. Verify the TXV superheat setting is appropriate for the system after installation.

Technical Specifications

• Nominal Capacity: 2.5-3 Ton
• Casing: Uncased
• Orientation: Multi-position
• Connection: Right-Hand
• Metering Device: TXV Included
• Width: 14 inches
• Height: 21 inches
• Depth: 19.5 inches

Standard Information

• Brand: ADP
• Manufacturer Part Number: HE1K936A140A0000AP
