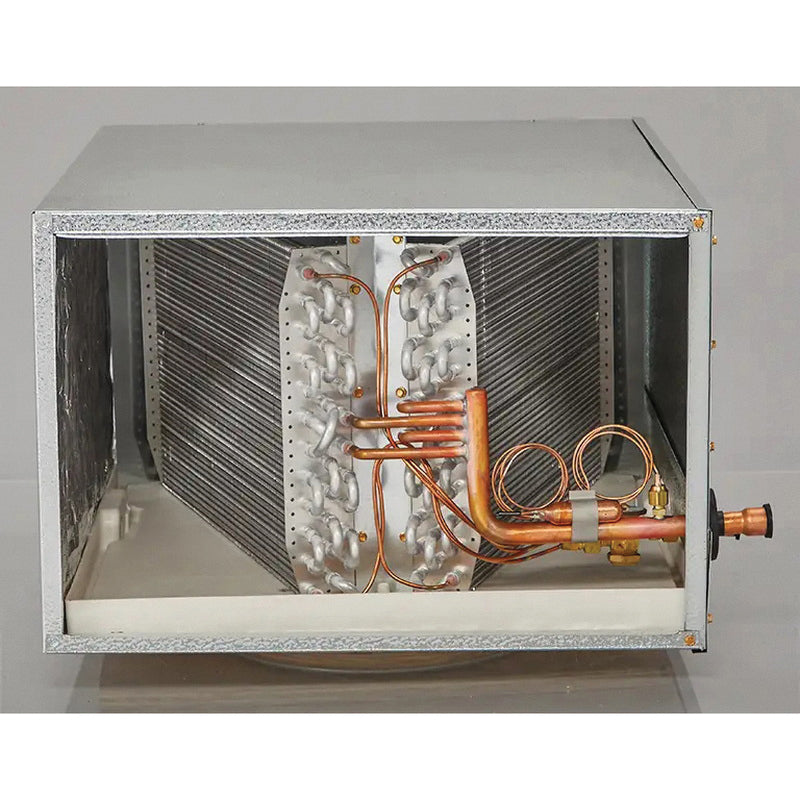

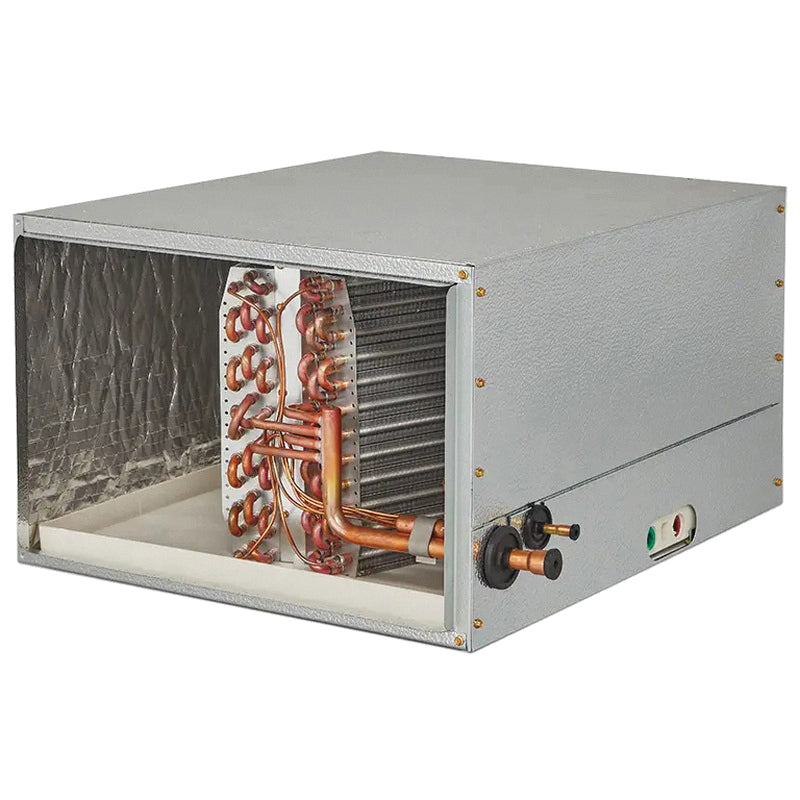

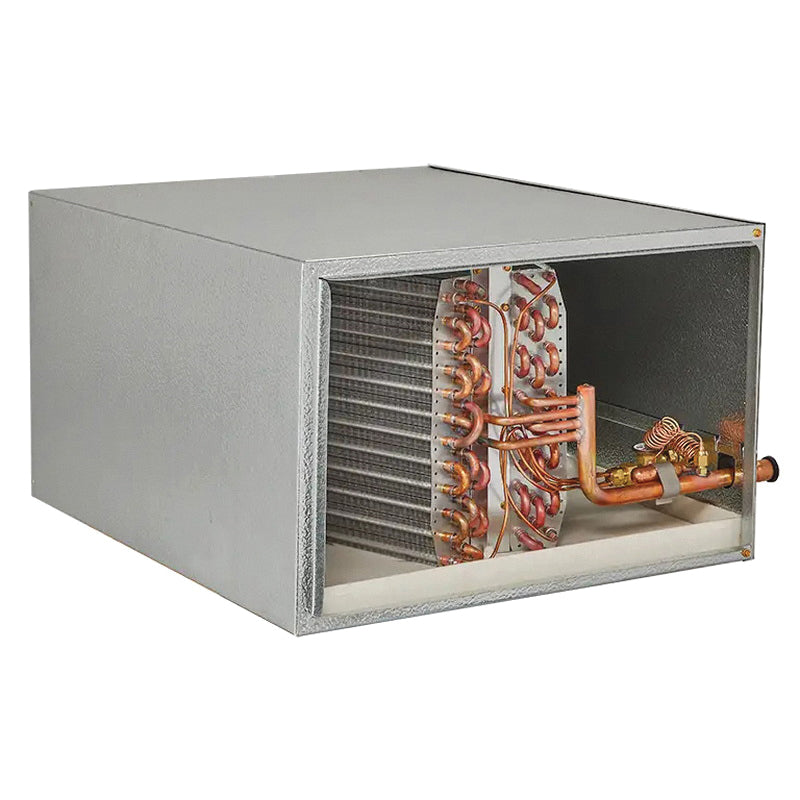

ADP HD19660E210B2647AP HD Series Evaporator Coil 3.5 to 5 ton Replacement MPN

Product Description

The ADP HD19660E210B2647AP HD Series Evaporator Coil is designed for efficient air conditioning applications, handling airflows of 1400 to 2000 cubic feet per minute (cfm). This evaporator coil operates with a BTU rating of 60000 and is suitable for systems requiring a tonnage of three and a half to five tons. It is compatible with R-410A refrigerant and features an ODF connection with sizes of three eighths and seven eighths inches.

• Designed for horizontal installation
• Made from durable copper material
• Built-in plenum flanges for easy installation

Product Highlights

This evaporator coil is engineered for all refrigerants and delivers flexibility for crawl space applications. It supports counterflow configurations to adapt to various airflow directions, ensuring efficient operation. The side refrigerant connections allow for straightforward access during service.

Product Information

Standard Information

• Brand: ADP
• MPN: HD19660E210B2647AP

Technical Specifications

• BTU Rating: 60000 Btu/hr
• CFM Rating: 1400 to 2000 cfm
• Color: Embossed
• Configuration: Horizontal
• Connection Size: 3/8 x 7/8 in
• Connection Type: ODF
• Dimensions: 26-1/2 in L x 21-1/2 in W x 21 in H
• Finish: Galvanized
• Material: Copper
• Piston Size: #93
• Pressure Rating: 500 psi
• Refrigerant Type: R-410A
• Series: HD Series
• Suitable For Use With: A1 Refrigerants
• Temperature Rating: 450 deg F
• Tonnage: 3.5 to 5 ton
