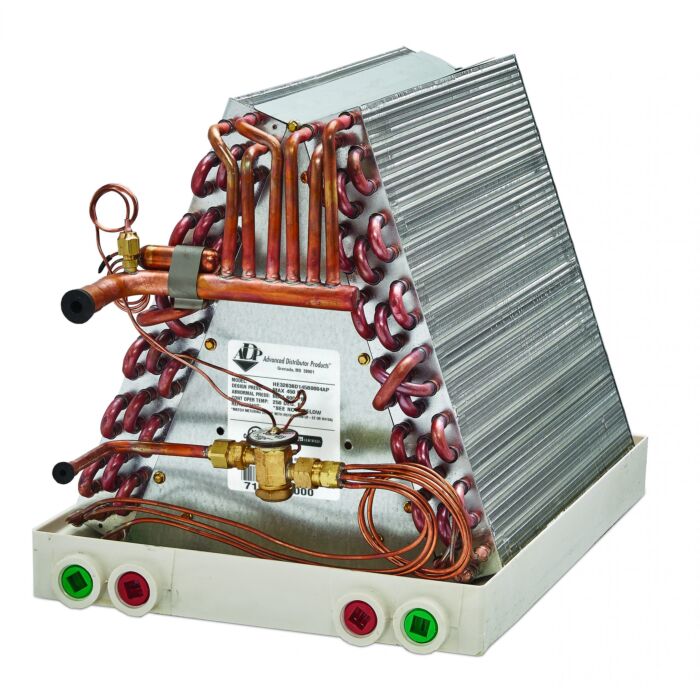

Adp ha10936a140a0004s Uncased A-coil Left Hand 14 in R-410A

Product Description

The ADVANCED DISTRIBUTOR PRODUCTS ha10936a140a0004s is an uncased evaporator A-coil designed for upflow air handler and furnace applications in residential and light-commercial split-system cooling installations. This coil is configured for left-hand orientation and is factory-equipped with a thermostatic expansion valve (TXV) metering device, making it compatible with R-410A refrigerant systems. At 14 inches wide, it fits a range of equipment cabinets in the 1.5-to-3-ton capacity range. HVAC technicians install this coil as part of a split-system or package upgrade where the indoor coil requires replacement or new installation without a factory enclosure.

This coil is suited for upflow configurations in residential split systems. The uncased design allows the coil to be field-installed into an existing or new coil cabinet, giving technicians flexibility when working with multiple equipment brands and cabinet sizes. The left-hand orientation determines the refrigerant connection side and must be confirmed against the air handler or furnace cabinet layout before ordering. The factory-installed TXV eliminates the need to source and braze a separate metering device in the field, reducing labor time on the installation.

Key Features

• Factory-installed TXV metering device for accurate refrigerant flow control with R-410A systems
• Left-hand orientation for installations where suction and liquid connections are required on the left side
• Upflow configuration compatible with standard residential upflow furnace and air handler cabinets
• Uncased design allows field installation into a variety of existing or aftermarket coil cabinets
• 14-inch width fits the 1.5-to-3-ton system capacity range

Compatibility

Designed for use in upflow split-system cooling applications using R-410A refrigerant, in the 1.5-to-3-ton capacity range. Verify cabinet dimensions and left-hand connection orientation against the existing equipment before installation.

Installation Notes

Installation should be performed by a licensed HVAC technician certified to handle R-410A refrigerant under EPA Section 608 regulations. Shut down and lock out the system at the disconnect before removing or installing the coil. Confirm left-hand orientation matches the cabinet and refrigerant line routing before securing the coil. After installation, pressure-test and evacuate the refrigerant circuit to the equipment manufacturer specifications before recharging the system.

Technical Specifications

• Configuration: Upflow
• Orientation: Left Hand
• Capacity Range: 1.5 to 3 Ton
• Refrigerant: R-410A
• Metering Device: TXV
• Coil Type: Uncased
• Width: 14 inches

Standard Information

• Brand: ADVANCED DISTRIBUTOR PRODUCTS
• Manufacturer Part Number: ha10936a140a0004s
