Adp AE9J936D145B2001AP Cased Evaporator Coil 2-3 Ton Txv

Product Description

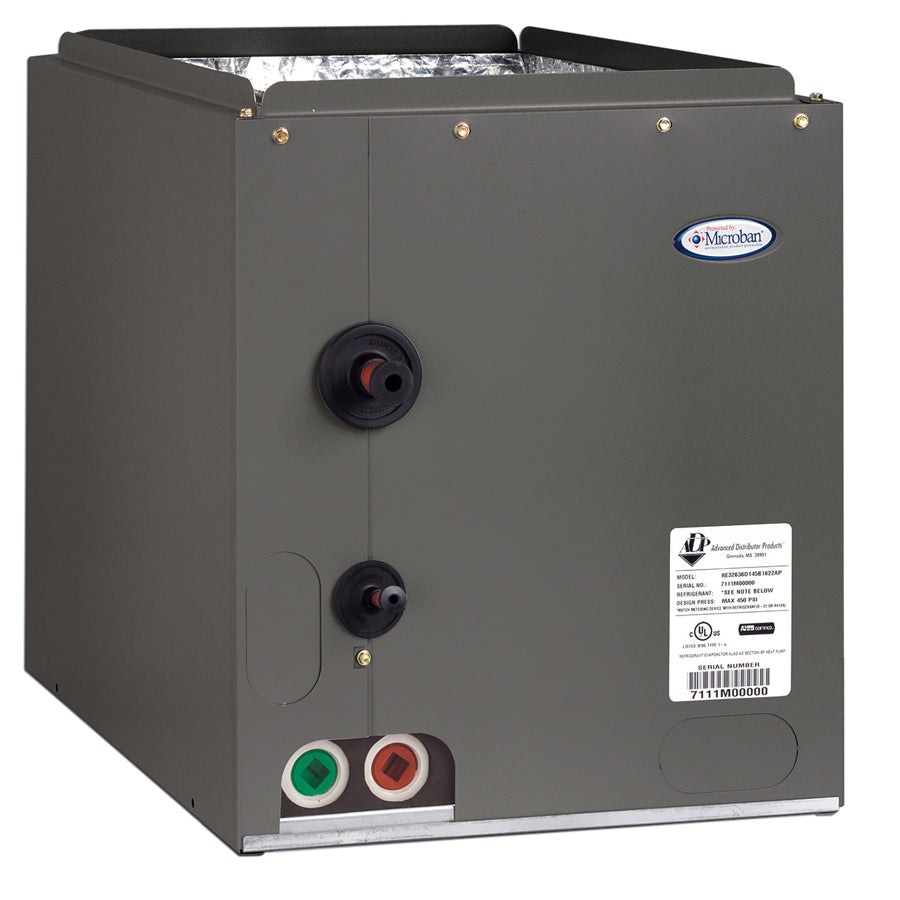

The ADP AE9J936D145B2001AP is a cased evaporator coil rated for 2 to 3 ton nominal capacity and designed for use in split-system air conditioning and heat pump applications. The coil ships in a factory-assembled cased cabinet, eliminating the need for field fabrication of a coil box. A factory-installed thermostatic expansion valve (TXV) provides precise refrigerant metering across a range of operating conditions. The multi-position orientation allows installation in upflow, downflow, or horizontal configurations, making it adaptable to a wide range of residential air handler placements. This coil is installed by licensed HVAC technicians as part of a matched split system.

This evaporator coil is suited for residential split-system cooling applications where a cased, multi-position coil with an integrated TXV is specified. The unit measures 14.5 inches wide, 20.5 inches tall, and 21 inches deep, fitting standard air handler cabinet openings in that size class. Its multi-position design supports installation above a furnace in upflow systems, below in downflow configurations, or on its side in horizontal attic or crawlspace installs. Consult the matched outdoor unit and air handler documentation to confirm nominal tonnage alignment before installation.

Key Features

• Nominal capacity range of 2 to 3 tons for flexible system matching
• Factory-installed TXV for accurate refrigerant metering without field assembly
• Multi-position orientation supports upflow, downflow, and horizontal installs
• Cased cabinet design eliminates field-built coil enclosures
• Compact footprint: 14.5 inches wide, 20.5 inches tall, 21 inches deep

Compatibility

Designed as an OEM-style cased evaporator coil for residential split-system air conditioning and heat pump applications in the 2 to 3 ton nominal range. Confirm compatibility with the specific outdoor condensing unit and air handler before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the equipment manufacturer instructions. Shut down and lock out the electrical supply to the air handler before removing or installing the coil. The refrigerant circuit must be recovered and recharged by an EPA Section 608 certified technician. Verify that the TXV bulb and equalizer line are properly secured to the suction line after installation to ensure accurate superheat control.

Technical Specifications

• Casing Type: Cased
• Nominal Capacity: 2 to 3 Ton
• Orientation: Multi-position
• Metering Device: TXV (Thermostatic Expansion Valve)
• Width: 14.5 inches
• Height: 20.5 inches
• Depth: 21 inches

Standard Information

• Brand: ADP
• Manufacturer Part Number: AE9J936D145B2001AP
