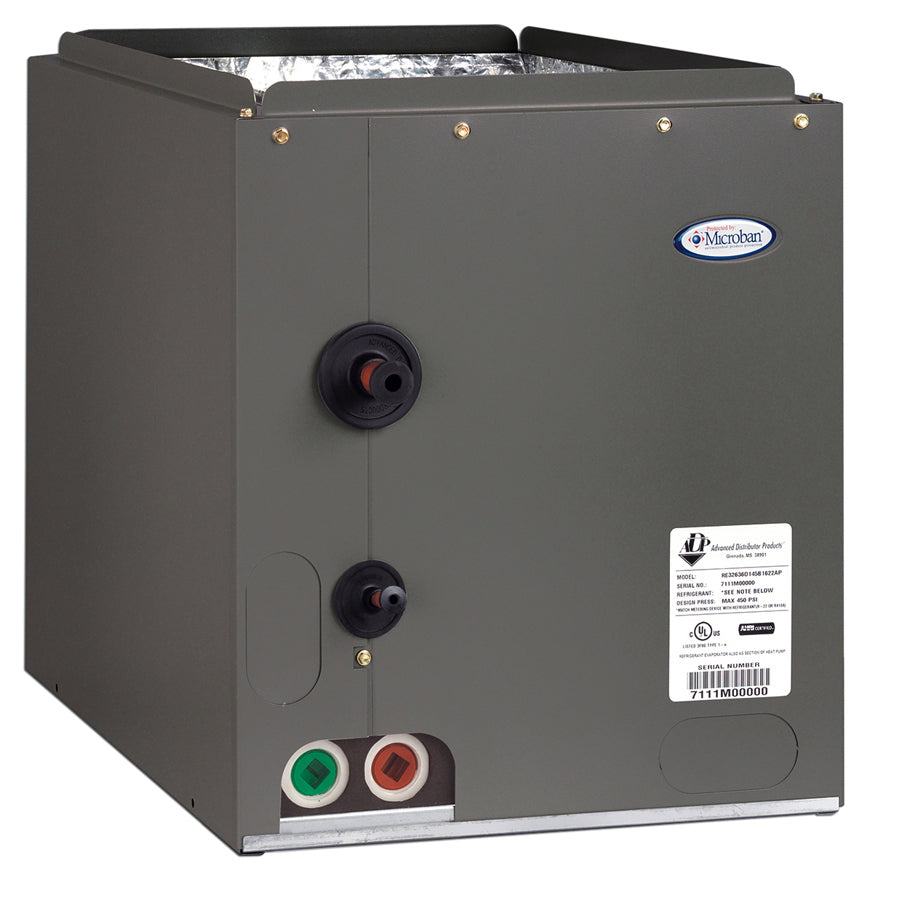

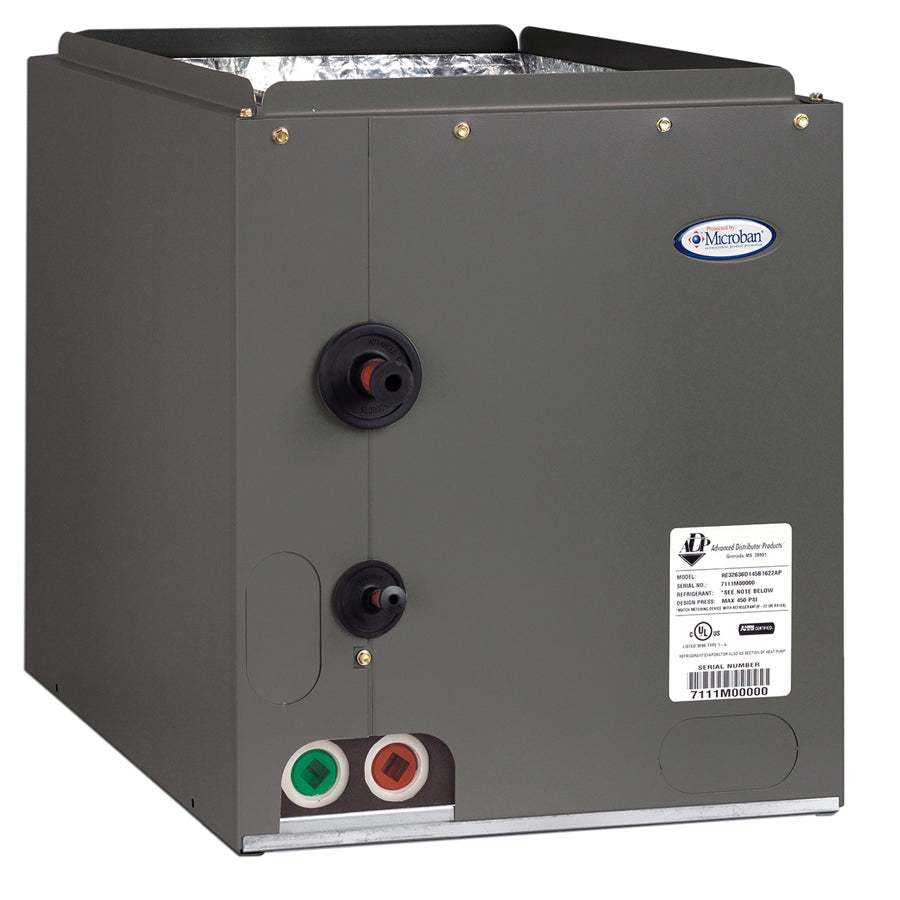

Adp AE84960D245B2501AP Cased Evaporator Coil 3.5-5 Ton

Product Description

The ADP AE84960D245B2501AP is a cased evaporator coil rated for 3.5 to 5 tons of nominal cooling capacity. It ships with an integrated thermostatic expansion valve (TXV), which meters refrigerant flow based on superheat to maintain efficient operation across varying load conditions. The multi-position orientation makes this coil suitable for upflow, downflow, or horizontal installations depending on the air handler configuration. At 24.5 inches wide, 25.5 inches tall, and 21 inches deep, the unit is sized for residential and light-commercial split-system applications. Licensed HVAC technicians install and service this component as part of a split or packaged cooling system.

This evaporator coil is designed for forced-air split-system air conditioning and heat pump applications in the 3.5 to 5 ton capacity range. The cased design allows it to mount directly in a duct system above or beside a compatible air handler or furnace. The included TXV eliminates the need for a field-installed metering device, simplifying the refrigerant circuit on qualifying systems. Multi-position capability reduces the number of SKUs needed when stocking for varied installation orientations on residential and light-commercial jobs.

Key Features

• Nominal capacity range of 3.5 to 5 tons suits a wide band of residential and light-commercial load calculations
• Factory-installed TXV provides accurate refrigerant metering without a separate field-supplied device
• Multi-position orientation supports upflow, downflow, and horizontal installations from a single SKU
• Cased construction simplifies duct connection and protects the coil assembly during handling and installation
• Dimensions of 24.5 inches wide by 25.5 inches tall by 21 inches deep allow planning for cabinet and duct rough-in

Compatibility

Designed as an OEM-style replacement or new-installation cased evaporator coil for residential and light-commercial split-system air conditioning and heat pump systems in the 3.5 to 5 ton capacity range.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 refrigerant handling certification. Shut down and lock out the electrical disconnect and recover any system refrigerant before opening the refrigerant circuit. Verify that the coil orientation matches the air handler or furnace cabinet configuration and that drain connections are pitched correctly before sealing the cabinet. Follow local mechanical codes and the equipment manufacturer's installation instructions for refrigerant line sizing, brazing procedures, and leak testing before recharging the system.

Technical Specifications

• Casing Type: Cased
• Nominal Capacity: 3.5-5 Ton
• Orientation: Multi-position
• Metering Device: TXV (factory installed)
• Width: 24.5 inches
• Height: 25.5 inches
• Depth: 21 inches

Standard Information

• Brand: ADP
• Manufacturer Part Number: AE84960D245B2501AP
