Adp AE1K936D210B2201AP Cased Evaporator Coil 3 Ton

Product Description

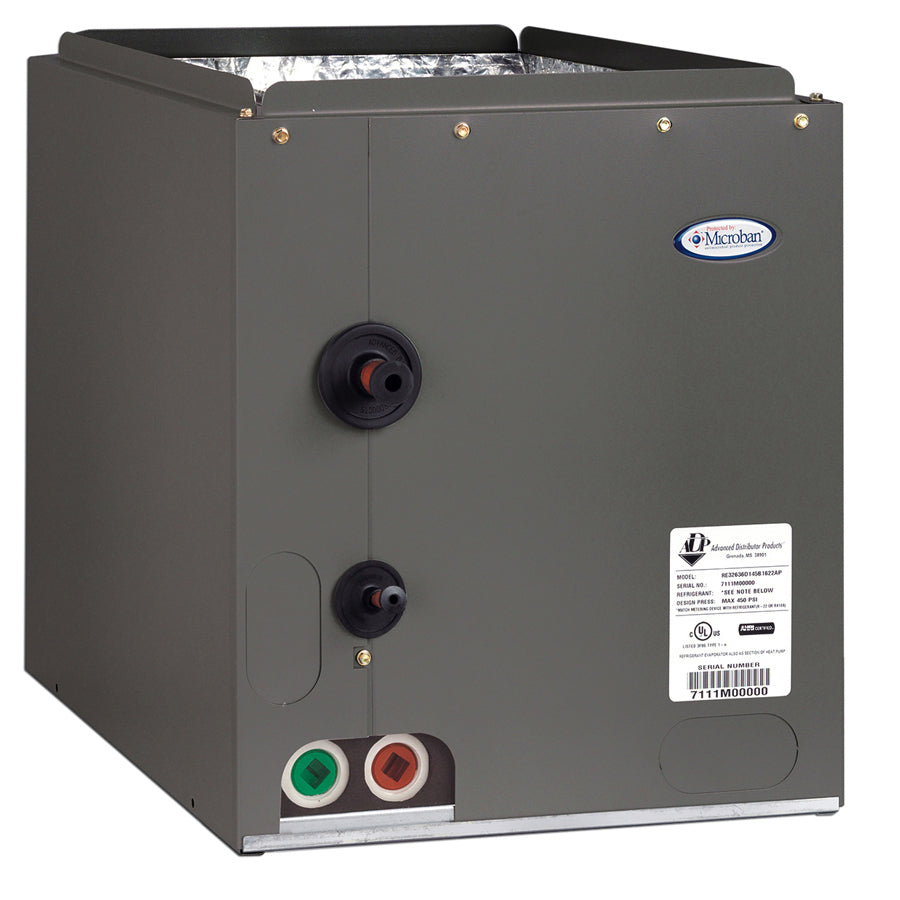

The ADP AE1K936D210B2201AP is a cased evaporator coil rated at 3 nominal tons, designed for use in residential and light commercial split-system air conditioning and heat pump applications. The coil ships in a cased configuration and includes an integrated thermostatic expansion valve (TXV) for precise refrigerant metering, improving system efficiency and performance across a range of operating conditions. Its multi-position design allows installation in upflow, downflow, or horizontal orientations, giving installers flexibility to match existing ductwork and equipment layout. HVAC technicians working on split-system changeouts or new installations will find this coil a practical direct-fit option for matched-system configurations.

This evaporator coil is suited for residential split-system cooling installations where a cased coil is required above or alongside a furnace or air handler. The multi-position capability makes it adaptable to a variety of equipment closet and utility room configurations. The factory-installed TXV eliminates the need for a field-supplied metering device, simplifying the refrigerant circuit during installation. This coil is intended for installation by licensed HVAC technicians in systems requiring a 3-ton nominal evaporator coil with a cased enclosure.

Key Features

• 3 nominal ton capacity suited for residential and light commercial split systems
• Factory-installed TXV provides accurate refrigerant metering without a field-supplied device
• Multi-position orientation supports upflow, downflow, and horizontal installations
• Cased enclosure simplifies mounting and protects coil during handling and installation
• Compact footprint at 21 inches wide, 22.5 inches tall, and 21 inches deep

Compatibility

Designed as an OEM-style cased evaporator coil for use in residential and light commercial split-system air conditioning and heat pump applications requiring a 3-ton nominal multi-position coil with TXV.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local mechanical codes and the equipment manufacturer's instructions. Disconnect and lock out all electrical power and recover system refrigerant per EPA Section 608 requirements before servicing or replacing the coil. Ensure the drain pan and condensate lines are properly pitched and connected before startup. Verify system refrigerant charge and airflow after installation to confirm proper system operation.

Technical Specifications

• Nominal Capacity: 3 tons
• Casing: Cased
• Orientation: Multi-position
• Metering Device: TXV (thermostatic expansion valve)
• Width: 21 inches
• Height: 22.5 inches
• Depth: 21 inches

Standard Information

• Brand: ADP
• Manufacturer Part Number: AE1K936D210B2201AP
