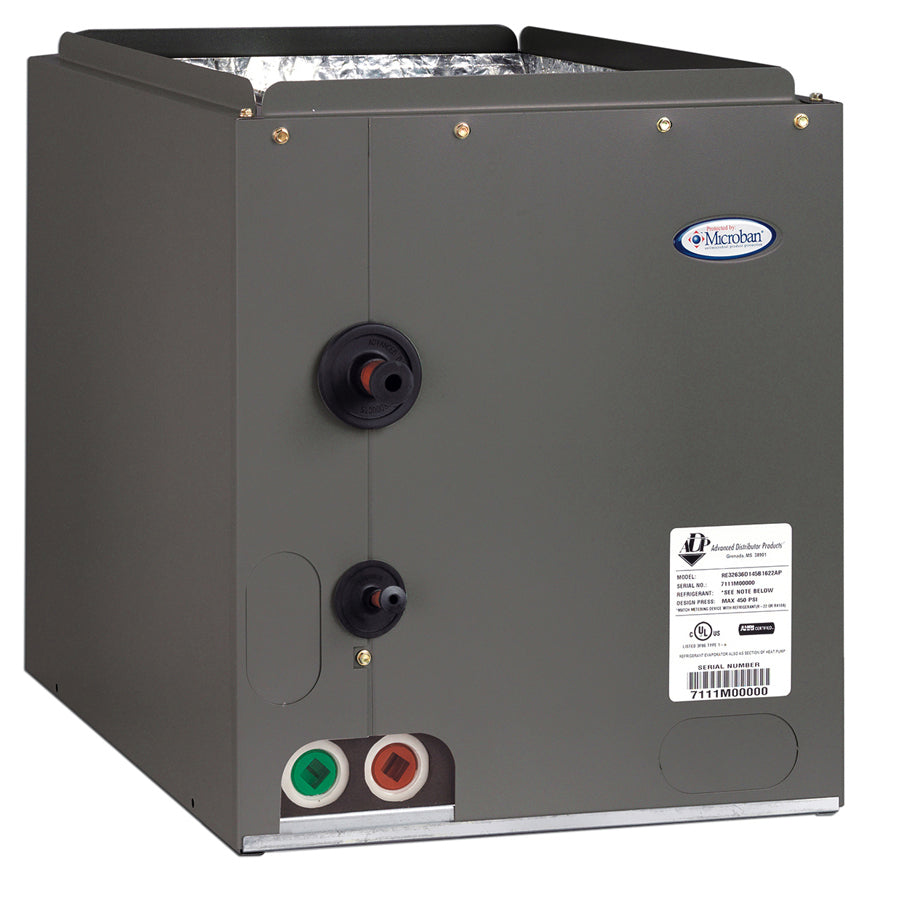

Adp AE1K936D175B2201AP Cased Evaporator Coil 1.5-3 Ton Txv

Product Description

The ADP AE1K936D175B2201AP is a cased evaporator coil with an integrated thermostatic expansion valve (TXV) designed for residential and light commercial split-system air conditioning and heat pump applications. The coil ships fully cased and ready for installation in multi-position orientations, making it adaptable to upflow, downflow, or horizontal configurations depending on the air handler setup. Rated for 1.5 to 3 tons of cooling capacity, it covers a wide range of residential system sizes. The included TXV provides accurate refrigerant metering across varying load conditions, improving system efficiency compared to fixed-orifice alternatives. Licensed HVAC technicians perform installation of this component.

This evaporator coil is suited for residential split-system installations where the indoor air handler requires a direct-expansion coil section. The multi-position casing allows use in a variety of equipment room layouts without requiring a separate coil cabinet. The 1.5 to 3 ton nominal capacity range makes it appropriate for smaller single-zone residential applications. Where the system refrigerant circuit and TXV sizing are matched to the condensing unit, this coil supports efficient steady-state operation across cooling and heat pump modes.

Key Features

• Cased design ships ready to install without a separate coil cabinet
• Integrated TXV for accurate refrigerant metering and improved efficiency over fixed-orifice systems
• Multi-position orientation supports upflow, downflow, and horizontal air handler configurations
• 1.5 to 3 ton nominal capacity range covers common single-zone residential applications
• Compact cabinet dimensions: 17.5 inches wide, 22.5 inches tall, 21 inches deep

Compatibility

Designed as an OEM-style cased evaporator coil replacement or new installation component for residential split-system air conditioning and heat pump systems in the 1.5 to 3 ton capacity range.

Installation Notes

Installation must be performed by an EPA 608-certified HVAC technician. Shut down and lock out the electrical supply to the air handler before beginning installation, and recover all system refrigerant per EPA regulations before opening any refrigerant circuits. Verify that the TXV refrigerant type and tonnage rating are matched to the condensing unit before commissioning. Follow local mechanical codes and the equipment manufacturer installation instructions for drain pan, condensate line, and duct connections.

Technical Specifications

• Casing Type: Cased
• Nominal Capacity: 1.5-3 Ton
• Orientation: Multi-Position
• Metering Device: TXV (Thermostatic Expansion Valve)
• Width: 17.5 inches
• Height: 22.5 inches
• Depth: 21 inches

Standard Information

• Brand: ADP
• Manufacturer Part Number: AE1K936D175B2201AP
