Product Description

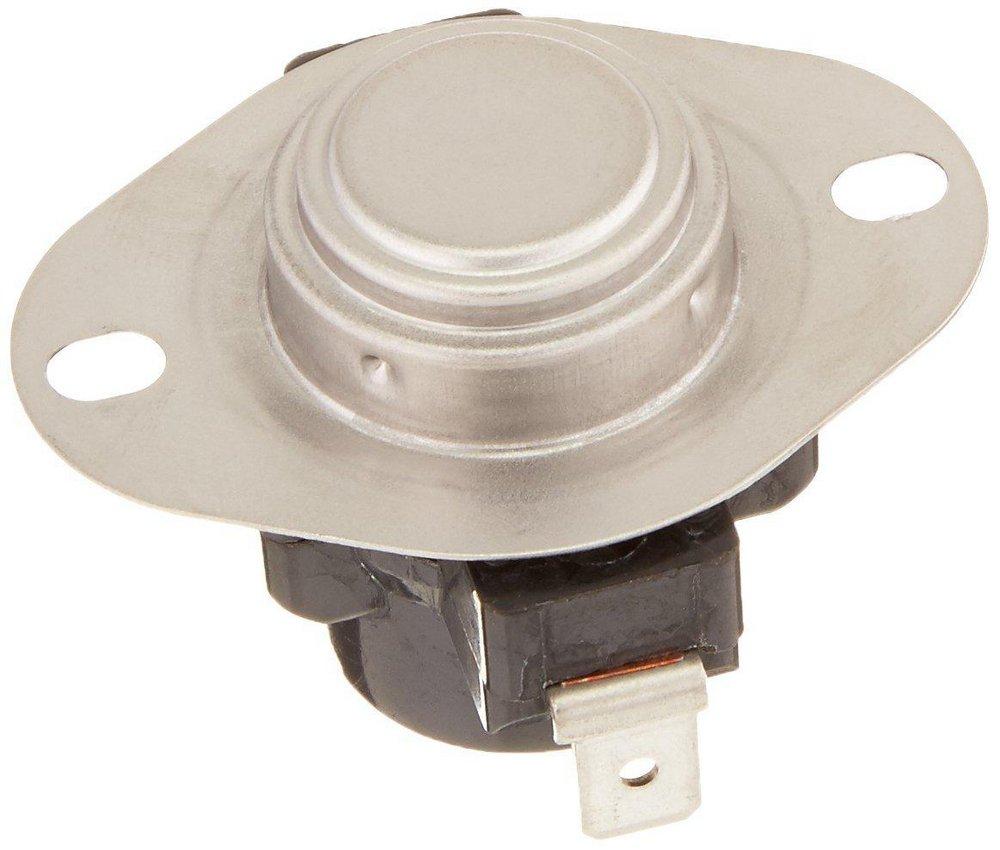

The White-Rodgers 3L05-3 limit disc is adjustable between 210F and 250F. Featuring standard quick connect terminals, this limit disc reduces inventory by covering a wide range of temperature applications. It replaces most fixed disc thermostats found in heating equipment and various appliances. It is an adjustable snap disc thermostat that allows setting a temperature set point to match specific needs.
- Quick connect terminals are standard
- Reduces inventory while providing coverage for a wide range of temperature applications
- Replaces the majority of fixed disc thermostats now on heating equipment and various appliances
Product Highlights
Adjustable snap disc thermostat allows setting temperature set point to match specific needs. Includes thermostat and tab-to-screw terminals.
Product Information
Standard Information
-
Brand: WHITE-RODGERS
-
Manufacturer Part Number: 3L05-3
-
Country of Origin: United States
Technical Specifications
-
Manufacturer: White Rodgers
-
Brand: White-Rodgers
-
Model / MPN: 3L05-3
-
Number of Items: 1.0
-
Product Type: ELECTRONIC_COMPONENT
-
Switching: SPST Open on Rise
-
Set Point Range: 210° to 250°F
-
Vendor: White-Rodgers
-
MfgNum: 3L05-3
-
Main Category: HVAC
-
Category: Controls
-
SubCat: Limit
-
ItemNum: 3L053
-
Vendor Name: White-Rodgers
-
Resistive Rating: 25 amp
-
Temperature Rating: 210 Deg F (Cut-In), 250 Deg F (Cut-Out)
-
Switch Configuration: SPST, Open-On Rise
-
Current Rating: 14 Amp at 120 Volt AC/10 Amp at 240 Volt AC (Full Load), 72 Amp at 120 Volt AC/60 Amp at 240 Volt AC (Locked Rotor), 25 Amp at 120/240 Volt AC (Resistive)
-
Power Rating: 125 Volt Amp at 120/240 Volt AC (Pilot Duty)
-
Series/Model: 3L05
-
Switch Type: SPST, Open on Rise
-
Type: Adjustable, Snap Disc, Automatic Reset
-
UPC: 786710002090
-
Voltage Rating: 120/240 Volt AC
-
Temperature range: 210° F to 250° F, 99° C to 121° C
-
Terminals: Quick connect, 1/4" terminals
-
Voltage: 120 - 240 volt
-
Style: 74T11 style, type 310712 Therm-O-Disc
-
Adjustable: Yes
-
Product Category: Thermostats & Controls
-
Brand/Part Number Replaced: Therm-O-Disc Type 74T11
-
Differential Temperature [°F]: 40
-
Family: 3F/3L Snap Disc Fan Limits Adjustable Temperature
-
Model Number: 3L05-3
-
Product Family: 3F/3L Snap Disc Fan Limits Adjustable Temperature
-
Switch Action: Open on Rise
-
Temperature, Cut-In [°F]: 210
-
Temperature, Cut-Out [°F]: 250
-
Warranty Period: 1 Year
-
Electrical Connections: 1/4 in Quick-Connect
-
Inductive Rating: 14 A
-
Pilot Duty Rating: 125 VA
-
Series: 3L05
-
Differential: 40 deg F
-
Contact Form: SPST
