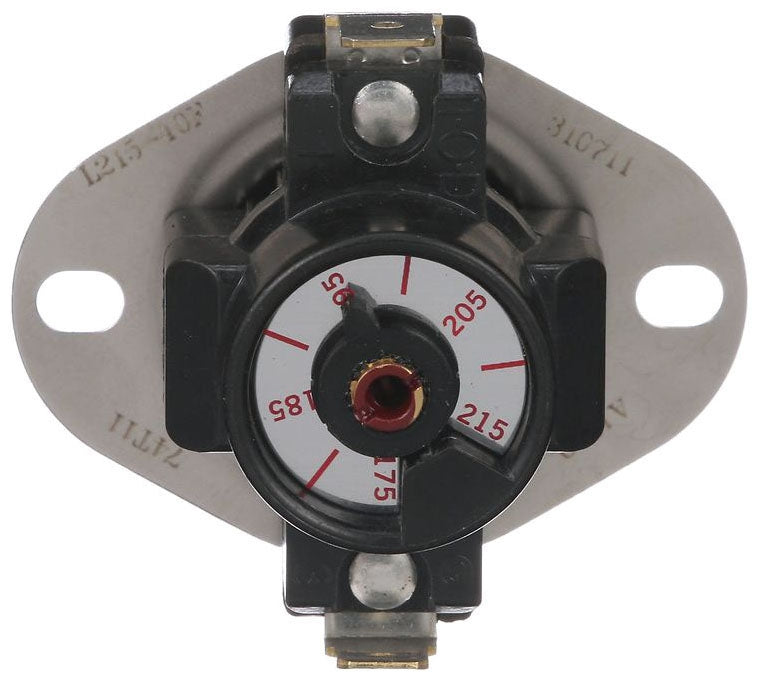

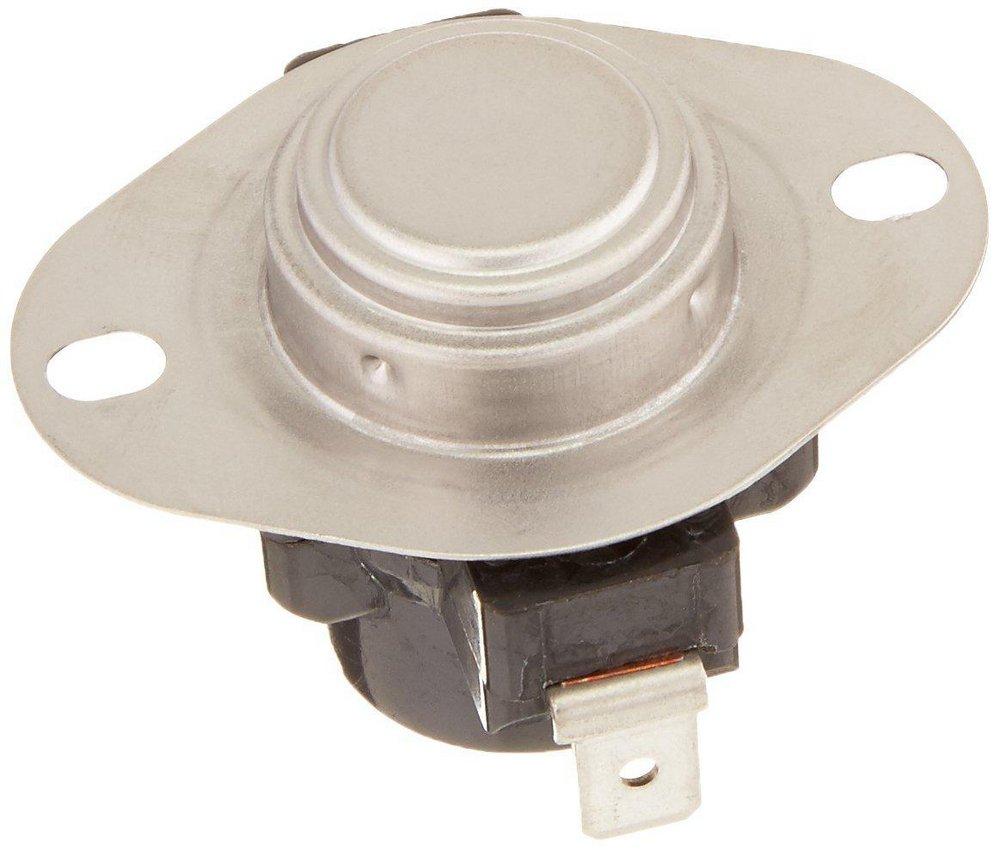

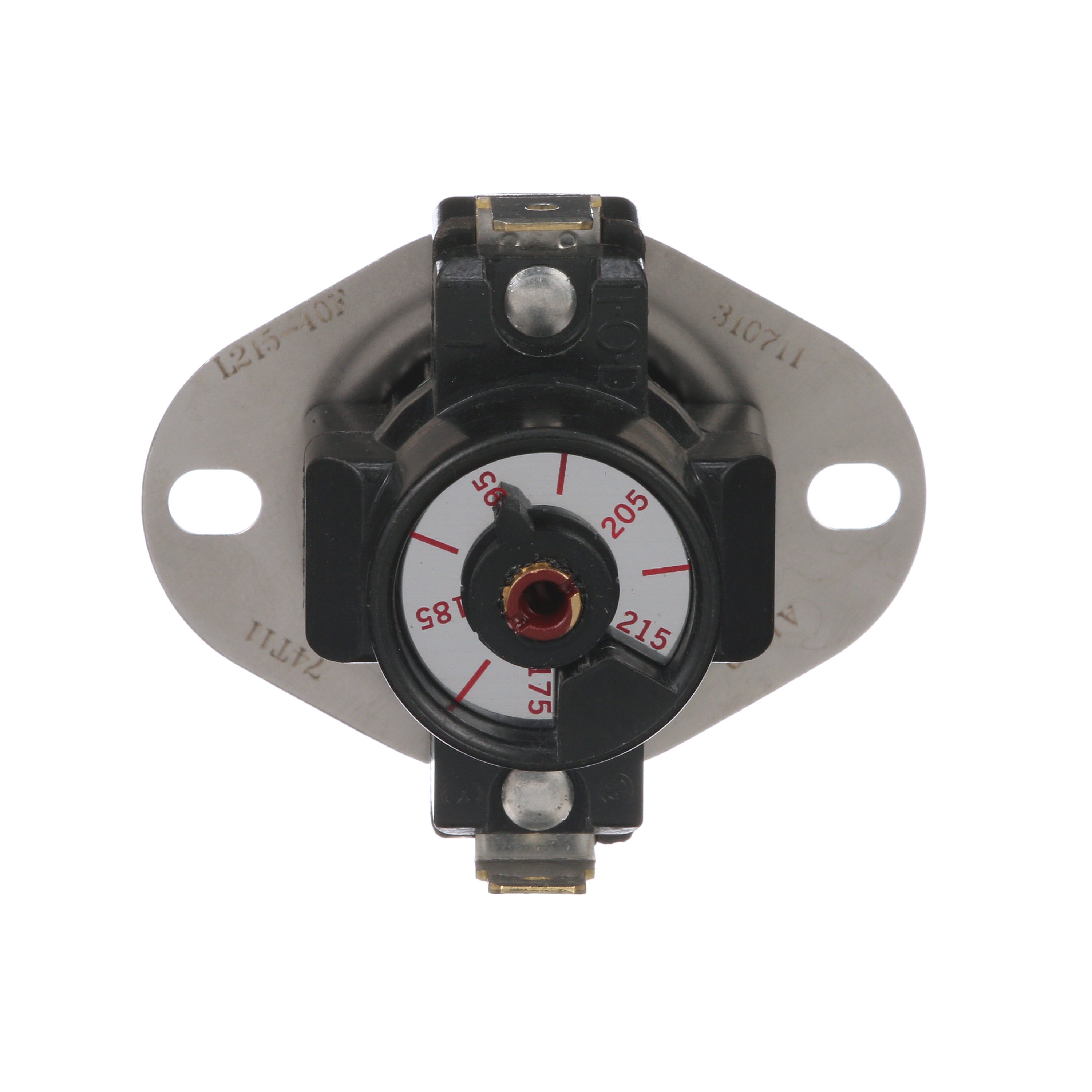

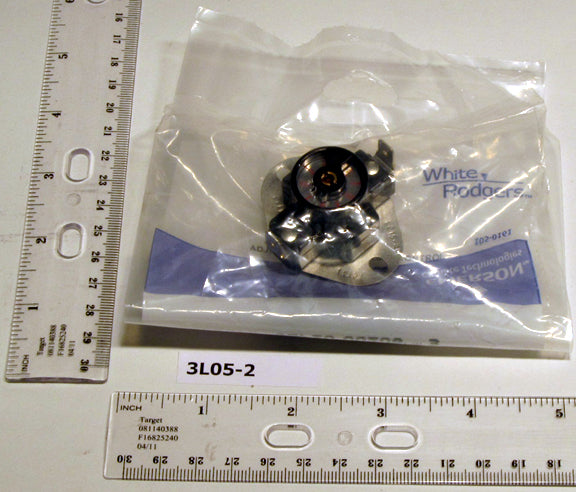

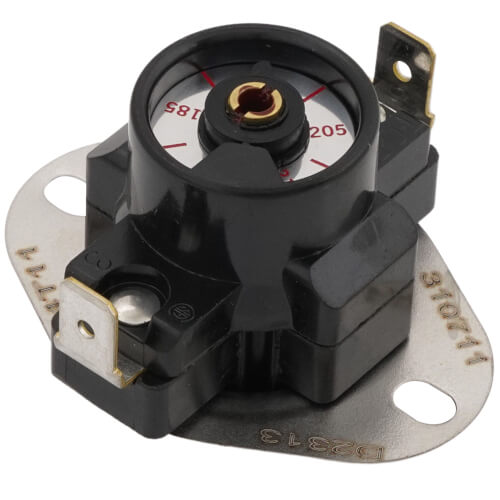

White-Rodgers 3L05-2 Limit Disc Adjustable, 175F-215F REPLACES 3L05-5

Product Description

The White-Rodgers 3L05-2 is an adjustable limit disc designed for a range of temperature applications. This snap disc thermostat allows setting temperature set points to match specific needs. It replaces the majority of fixed disc thermostats in heating equipment and various appliances. It features quick connect terminals for easy installation.

• Quick connect terminals are standard
• Adjustable snap disc thermostat allows setting temperature set point to match specific needs
• Replaces the majority of fixed disc thermostats now on heating equipment and various appliances

Product Highlights

This adjustable limit control simplifies inventory and provides coverage for a wide range of temperature applications.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 3L05-2
• Country of Origin: United States

Technical Specifications

• Brand: White-Rodgers
• MPN: 3L05-2
• Manufacturer: White Rodgers
• Model / MPN: 3L05-2
• Number of Items: 1.0
• Switching: SPST Open on Rise
• Set Point Range: 175° to 215°F
• Vendor: White-Rodgers
• Temperature Rating: +215 deg F Cut-Out, +175 deg F Cut-In
• Switch Configuration: SPST, Open-On Rise
• Item Model Number: 3L05-2
• Current Rating: 14 Amp at 120 Volt AC/10 Amp at 240 Volt AC (Full Load), 25 Amp at 120/240 Volt AC (Resistive)
• Power Rating: 125 Volt Amp at 120/240 Volt AC (Pilot Duty)
• Series/Model: 3L05
• Type: Adjustable Snap Disc, Auto Reset
• Voltage Rating: 120/240 Volt AC
• Operation: Open On Rise
• Voltage: 120 VAC
• VA Rating: 125 VA
• Differential: 40 deg F
• Temperature Range: 175 - 215 deg F
• Full Load Amps: 14 amp
• Locked Rotor Amps: 72 amp
• Temperature Range (F): 175°F to 215°F
• Switch Action: Open on Rise
• Pilot Duty Rating: 125 VA @ 240 Vac 125 VA @ 120 Vac
• Connection Type: Quick-Connect
• Features: Fixed Temperature
