Product Description

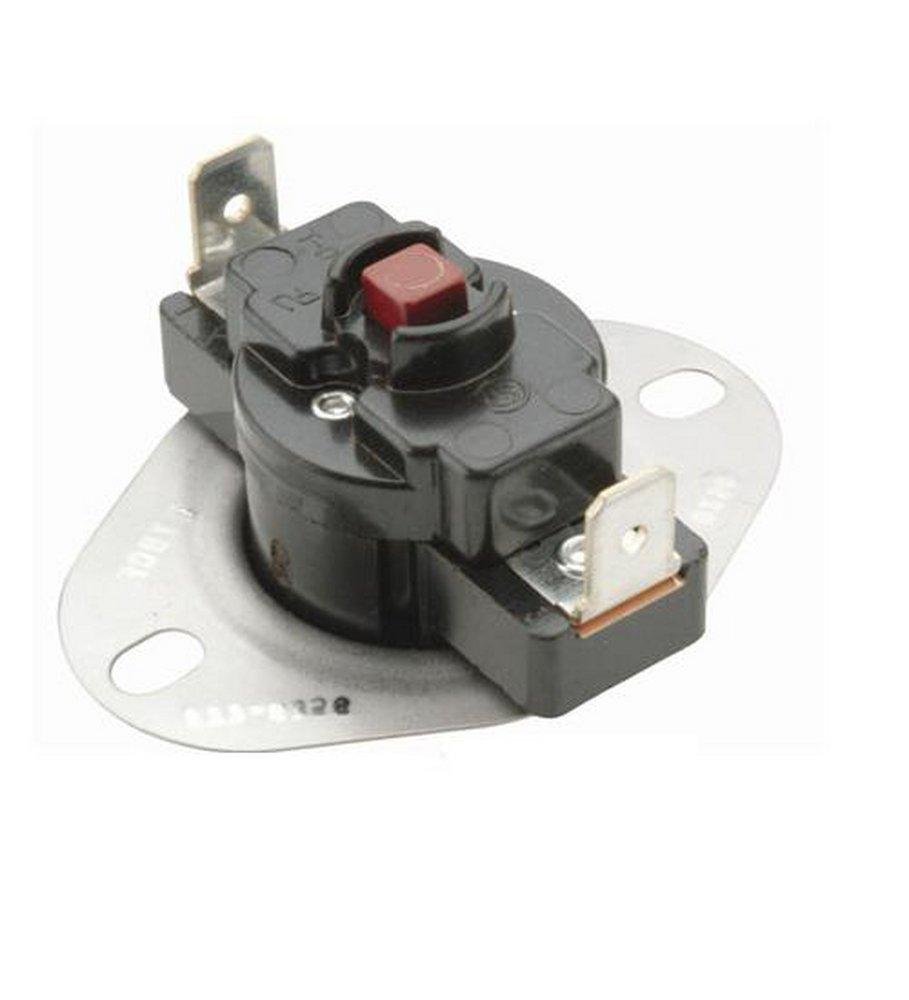

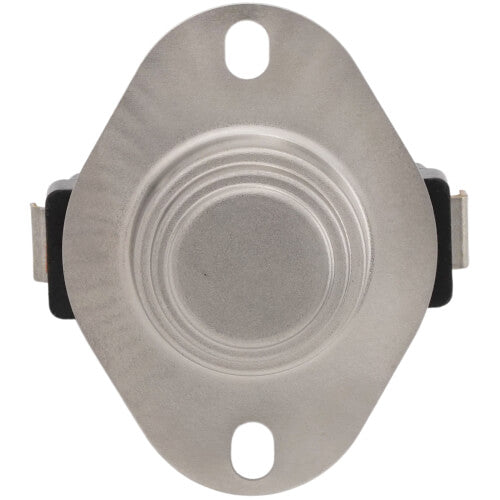

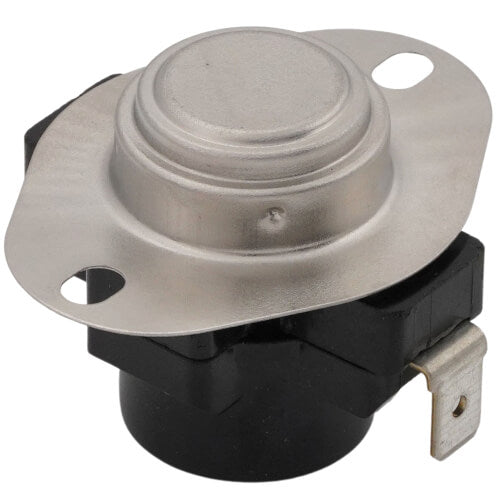

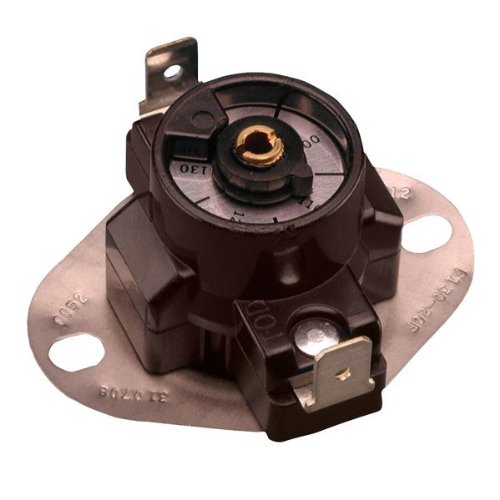

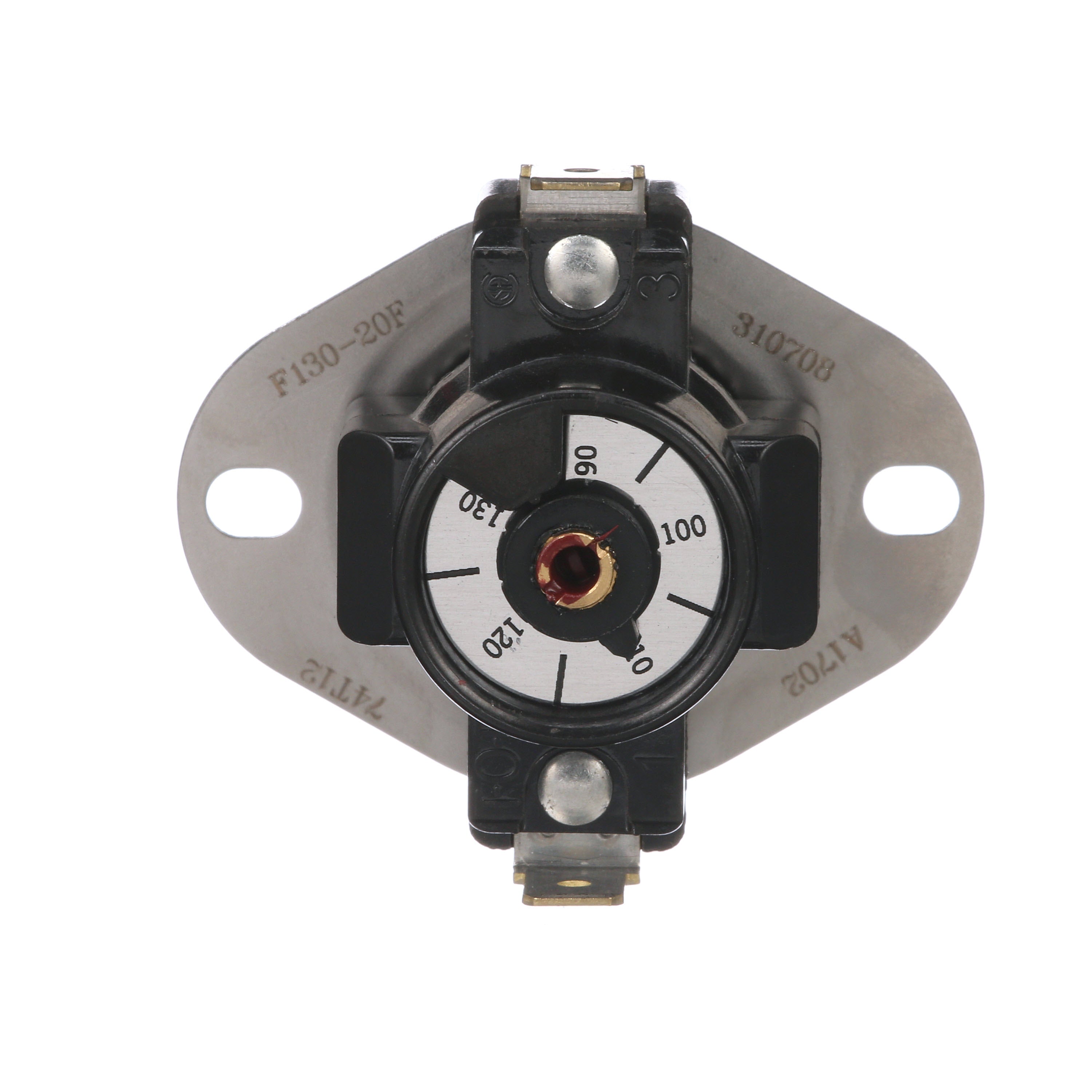

The White-Rodgers 3F05-1 fan disc is designed for quick on-job replacement. Mounting holes match standard 3/4" snap discs. The adjustable snap disc mechanism allows for customized temperature settings, ensuring efficient fan operation within a temperature range of 90-130F.
- Designed for quick on-job replacement
- Easy to remember type numbers - "large" for limit - "f" for fan
- Mounting holes match standard 3/4" snap discs
Product Highlights
This fan disc ensures efficient fan operation and helps regulate airflow to prevent overheating.
Product Information
Standard Information
-
Brand: WHITE-RODGERS
-
Manufacturer Part Number: 3F05-1
-
Country of Origin: United States
Technical Specifications
-
Manufacturer: White Rodgers
-
Brand: White-Rodgers
-
Model / MPN: 3F05-1
-
Number of Items: 1.0
-
Switching: SPST Close on Rise
-
Set Point Range: 90° to 130°F
-
Item Number: 3F05-1
-
Voltage Rating: 120/240 Volt AC
-
Current Rating: 14 Amp at 120 Volt AC/10 Amp at 240 Volt AC (Full Load), 25 Amp at 120/240 Volt AC (Resistive)
-
Power Rating: 125 Volt Amp at 120/240 Volt AC (Pilot Duty)
-
Switch Type: SPST, Close on Rise
-
Temperature Rating: 90 to 130 Deg F
-
Terminal Type: 1/4 Inch Quick-Connect
-
Mounting Type: Flanged Airstream
-
Differential Temperature Rating: 20 Deg F
-
Series/Model: 3F05
-
Manufacturer Part Number: 3F05-1
-
Manufacturer Name: White-Rodgers
-
UPC: 786710001819
-
Type: Therm-O-Disc
-
Full Load: 14 amp at 120 VAC
-
Locked Rotor: 72 amp at 120 VAC
-
Differential: 20 deg F
-
VA: 125
-
Application: Fan Control
-
Temperature Range (F): 90°F to 130°F
-
Switch Action: Close on Rise
-
Pilot Duty Rating: 125 VA @ 240 Vac
125 VA @ 120 Vac
-
Features: Adjustable Temperature
-
Connection Type: Quick-Connect
-
Condition: New
-
Product Category: Thermostats and Controls
-
Warranty: 1 Year
-
Compatible Brand: White-Rodgers
-
Compatible Product: Certain White-Rodgers Snap Disc Fan and Limit Controls models.
-
Model: 3F05-1
-
Compatible Model: Certain White-Rodgers Snap Disc Fan and Limit Controls models.
-
MPN: W3F051
-
California Prop 65 Warning: No
-
Collection: Snap Disc Fan and Limit Controls
