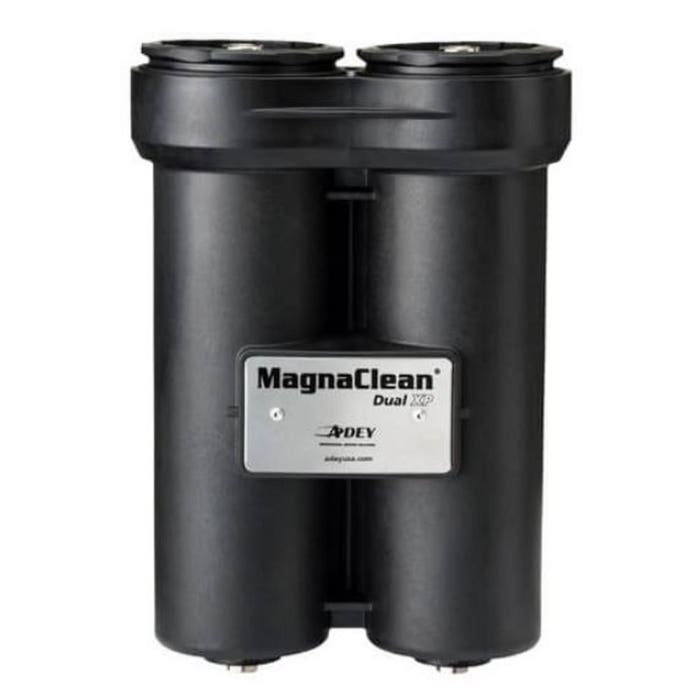

Adey FL10302991 MagnaClean Dual XP 1-1/2 inches NPT

Product Description

The ADEY FL10302991 MagnaClean Dual XP is engineered for large residential and light commercial systems. It features dual-magnetic chambers and four non-magnetic capture zones, enhancing performance. The filter includes unique 1 1/2" NPT telescopic connectors and integral flow-diverters for 360° distribution, maximizing iron oxide sludge capture. It also captures non-magnetic debris and allows easy dosing of ADEY treatment formulas.

• Double Protection for large residential and light commercial systems
• Ideal for small to medium-size commercial properties
• Dual-magnetic chambers double the performance

Product Highlights

This magnetic filter provides exceptional protection in larger closed-loop heating systems by removing virtually all suspended black iron oxide.

Product Information

Standard Information

• Brand: ADEY
• Manufacturer Part Number: FL10302991

Technical Specifications

• Canister and Lid Material: Glass reinforced nylon
• Canister and Lid Volume: 0.64 gallons (when telescopic connectors are retracted)
• Canister and Lid Thread: Pressure thread
• Canister and Lid Flow configuration: Bi-directional – any port can be inlet
• Canister and Lid Main lid seal: EPDM
• Magnets x 2 Housing: Stainless steel
• Magnets x 2 Length: 8.85433
• Magnets x 2 Diameter: 0.75
• Bleed Valves x 2 Body material: Nickel plated brass
• Bleed Valves x 2 Screw: Nickel plated brass
• Bleed Valves x 2 Thread interface: Metric M6
• Bleed Valves x 2 Seals: EPDM
• Drain ports x 2 Drain plug material: Nickel plated brass
• Drain ports x 2 Drain plug thread: Metric M8
• Drain ports x 2 Seals: EPDM
• Telescopic connectors x 2 Inlet: 1-1/2" Nominal bore
• Telescopic connectors x 2 Outlet: 1-1/2" Nominal bore
• Telescopic connectors x 2 Body material: Nickel plated brass
• Telescopic connectors x 2 Connection: 1-1/2" NPT female
• Telescopic connectors x 2 O ring material: EPDM
• Product Type: Dirt Eliminator
• Inlet Size: 1-1/2"
• Outlet Size: 1-1/2"
• Type: Magnetic
• BTU Boiler Range: 300,000 - 399,000 BTUs
• Flow Rate: 26 GPM
• Height (in.): 11
• Canister Depth (in.): 5.125
• Canister Width (in.): 7.75
