Adey FL10302990 MagnaClean Professional 2 XP 1 inches 1-1/4 inches

Product Description

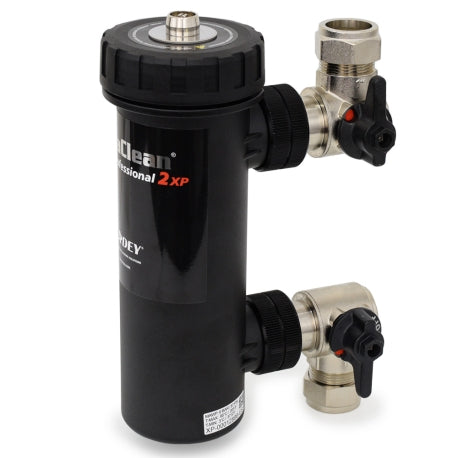

The ADEY FL10302990 MagnaClean Professional 2 XP is designed for large residential and light commercial hydronic heating systems. This high-performance, large-capacity filter offers rapid in-line installation with bi-directional flow. It is designed for larger heating systems using 1" copper and 1-1/4" black iron pipes. Integral flow-diverters ensure 360° distribution for uniform flow, maximizing sludge capture.

• X-treme protection for large residential and light commercial hydronic heating systems
• X-treme performance, large-capacity filter
• Rapid in-line installation, featuring in-line inlet and outlet ports with bi-directional flow

Product Highlights

Captures magnetic and non-magnetic debris. Features rotating filter connections, a low-profile drain valve, and a built-in air vent for easy maintenance.

Product Information

Standard Information

• Brand: ADEY
• Manufacturer Part Number: FL10302990

Technical Specifications

• Product Type: Dirt Eliminator
• Size: 1" 1-1/4"
• Connection Type: FNPT x FNPT
• Connection Method: Threaded
• Type: Magnetic
• Canister and Lid Material: Glass reinforced nylon
• Canister and Lid Volume: 0.22 gallons
• Canister and Lid Thread: Pressure thread
• Flow configuration: Bi-directional – any port can be inlet
• Main lid seal: EPDM

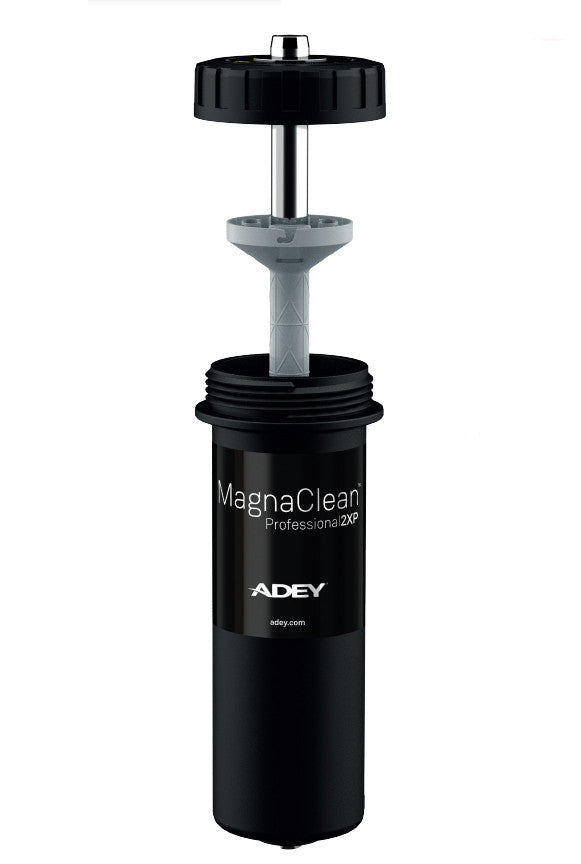

• Magnet Housing: Stainless steel
• Magnet Length: 8-55/64"
• Magnet Diameter: 3/4"
• Bleed Valve Body material: Nickel plated brass
• Bleed Valve Screw: Nickel plated brass
• Bleed Valve Thread interface: Metric M6
• Bleed Valve Seals: EPDM
• Drain port Drain plug material: Nickel plated brass
• Drain port Drain plug thread: Metric M8
• Drain port Seals: EPDM
• Triple seal valves Body material: Nickel plated brass
• Triple seal valves Seals material: Long life PTFE ball seals
• Triple seal valves O ring material: EPDM 70 seals x 3
• Valve inlet/outlet: 1" compression
• Valve inlet/outlet (with adapters): 1-1/4" NPT female
• Valve to canister: EPDM
• BTU Boiler Range: 150,000 - 300,000 BTUs
• Flow Rate: 21 GPM
• Height (in.): 11
• Cap Diameter (in.): 3.875
• Canister Diameter (in.): 3.125

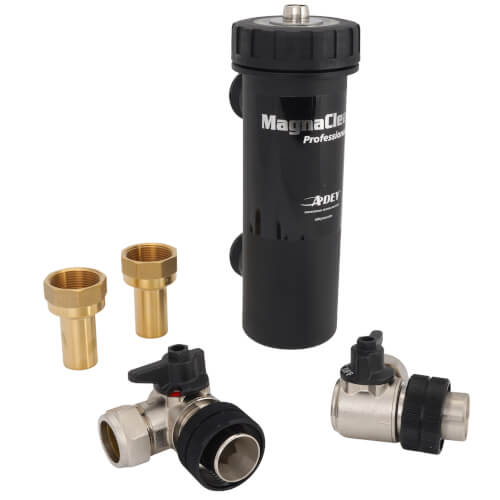

• System Connections: 1-1/8" OD compression (fits over regular 1" copper pipe) or 1-1/4" female NPT (with brass adapters included in package)
• Max Working Pressure: 87 psi
• Max Operating Temperature: 207°F (95°C)
• Canister Volume (Fluid Capacity): 0.22 gal
• Service Clearance: 2" from top & bottom
• Materials: Glass reinforced nylon body and cap, EPDM O-ring seals, brass ball valves/air beeder/drain plug
