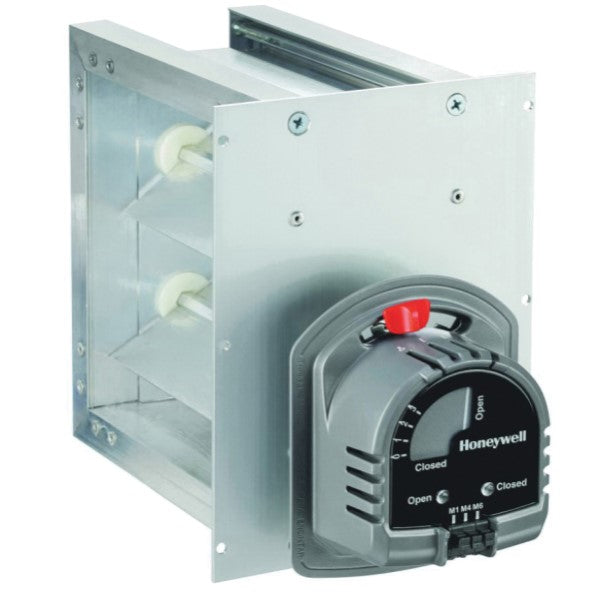

Ademco ZD16X10TZ/U Honeywell Home TrueZONE ZD Series Residential Damper 24 VAC 16 H x 10 W ZD16X10TZ/U

Product Description

The Ademco ZD16X10TZ/U is a Honeywell Home TrueZONE ZD Series Residential Damper designed for efficient temperature control in residential HVAC systems. This rectangular damper measures sixteen inches high and ten inches wide, with a voltage rating of twenty-four VAC and an amperage rating of point thirty-two A. It is suitable for use in zoning applications to optimize indoor air quality.

• LED indication light for damper position
• Parallel blade design for improved airflow management
• Easy two-wire installation

Product Highlights

The ZD16X10TZ/U includes features such as a mechanical position indicator and is constructed from durable aluminum. It offers a rotation angle of ninety degrees, facilitating versatile installation in various orientations.

Product Information

Standard Information

• Brand: Ademco
• MPN: ZD16X10TZ/U

Technical Specifications

• Amperage Rating: 0.32 A
• Blade Action: Parallel
• Material: Aluminum
• Motor Type: Power Closed/Spring Open
• Rotation Angle: 90 deg
• Voltage Rating: 24 VAC
• Temperature Rating: 32 to 120 deg F
• Size: 16 H x 10 W in
• Timing: 30 sec
