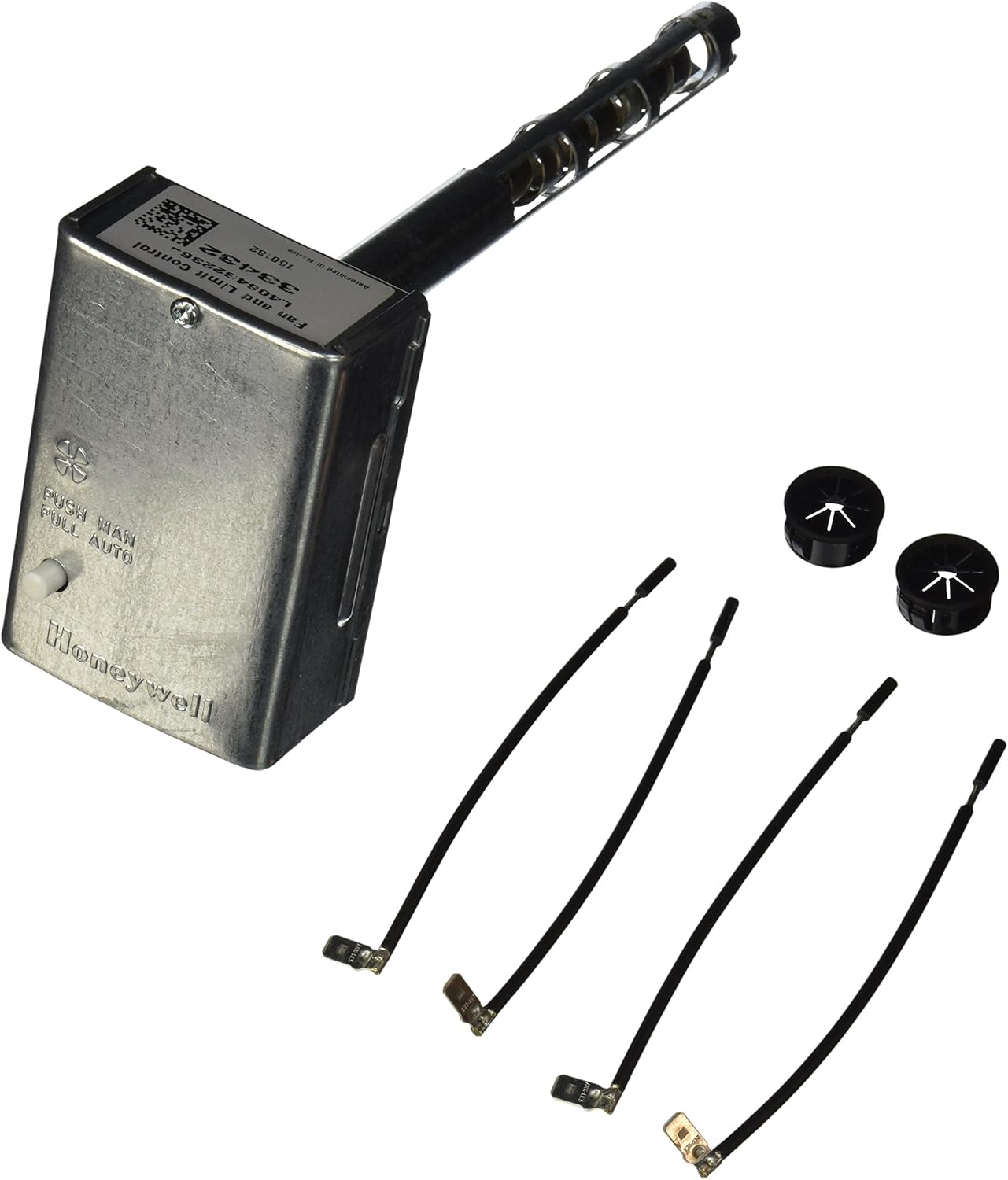

Honeywell L4064B2236 Fan and Limit Control

Product Description

The Honeywell L4064B2236 Fan and Limit Control is a critical component for forced air heating systems. It controls both the fan motor and the high limit settings, ensuring efficient and safe operation.

• Easy to install
• Adjustable temperature settings
• Surface, universal mount

Product Highlights

This control features three wiring terminal options for simplified installation. It includes push-in receptacles for stripped wire, female receptacles for 1/4 inch male flag connectors, and auxiliary screw terminals. The design includes a manual fan switch that allows the fan to run continuously when needed.

Product Information

Standard Information

• Brand: Honeywell
• MPN: L4064B2236

Technical Specifications

• Type: Adjustable Temperature, Auto Reset
• Element: 8 Inch
• Dimensions: 1-19/32 Inch L x 3 Inch W x 4-9/32 Inch H
• Contact Form: SPDT
• Differential: 22 deg F Fan, 25 deg F Fixed Limit
• Mounting Type: Surface, Universal
• Switch Action: Close On Rise Fan, Open On Rise Limit
• Inductive Rating: 7 A Fan, 4 A at 120 V Limit
• Pilot Duty Rating: 0.25 A at 0.25 - 12 VDC, 2 A at 24 VAC
• Voltage: 12VDC/24V
• Amperage: 0.25 to 2A
• Country of Origin: United States
