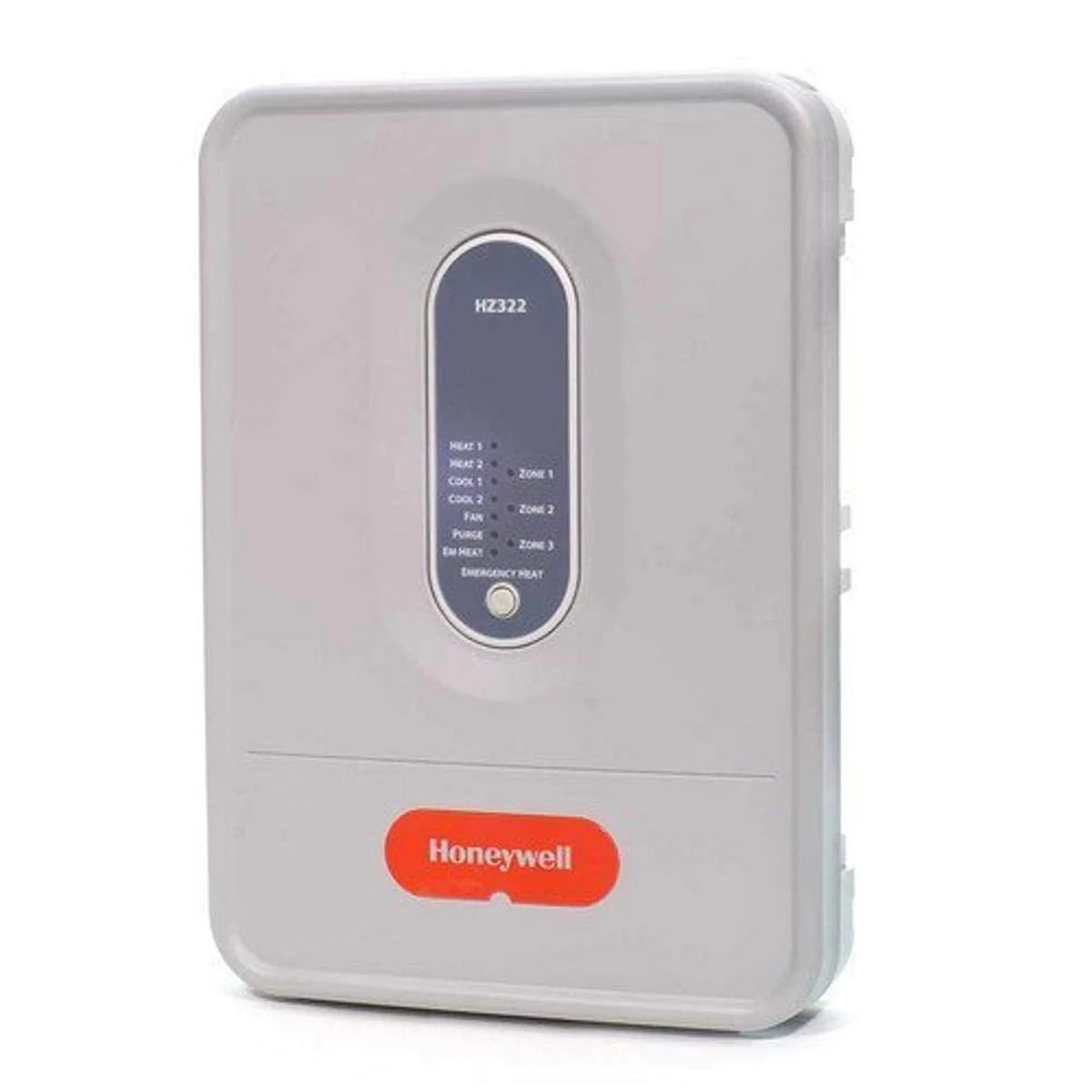

Honeywell HZ322 TrueZONE Panel 3-Zone 24VAC 2H/2C

Product Description

The Honeywell HZ322 TrueZONE Panel is designed for efficient HVAC zoning control. With its robust design and advanced features, it supports up to three zones, making it ideal for both residential and commercial applications.

• Intuitive installer setup with digital display
• Standard checkout procedure
• Robust push terminals

Product Highlights

Install this Honeywell zoning panel to efficiently manage your HVAC system. This panel supports up to three zones and is compatible with conventional or heat pump systems. It features RedLINK enabled for wireless operation.

Product Information

Standard Information

• Manufacturer: Honeywell
• Brand: Honeywell
• Model: HZ322
• Color: Gray

Technical Specifications

• Voltage Rating: 24 V, 50/60 Hz
• Amperage Rating: 10 VA
• Dimensions: 11.5 inches H x 8 inches W x 1.86 inches D
• Application: For up to 3 zones (2 heat/2 cool)
• Temperature Range: -20 to 150 deg F
• Compatibility: THM4000R1000 Wireless Adapter
• Humidity Range: 5% to 90% RH non-condensing
• Display: LED
