Honeywell HZ221K TrueZONE Kit - DATS / Transform / Panel

Product Description

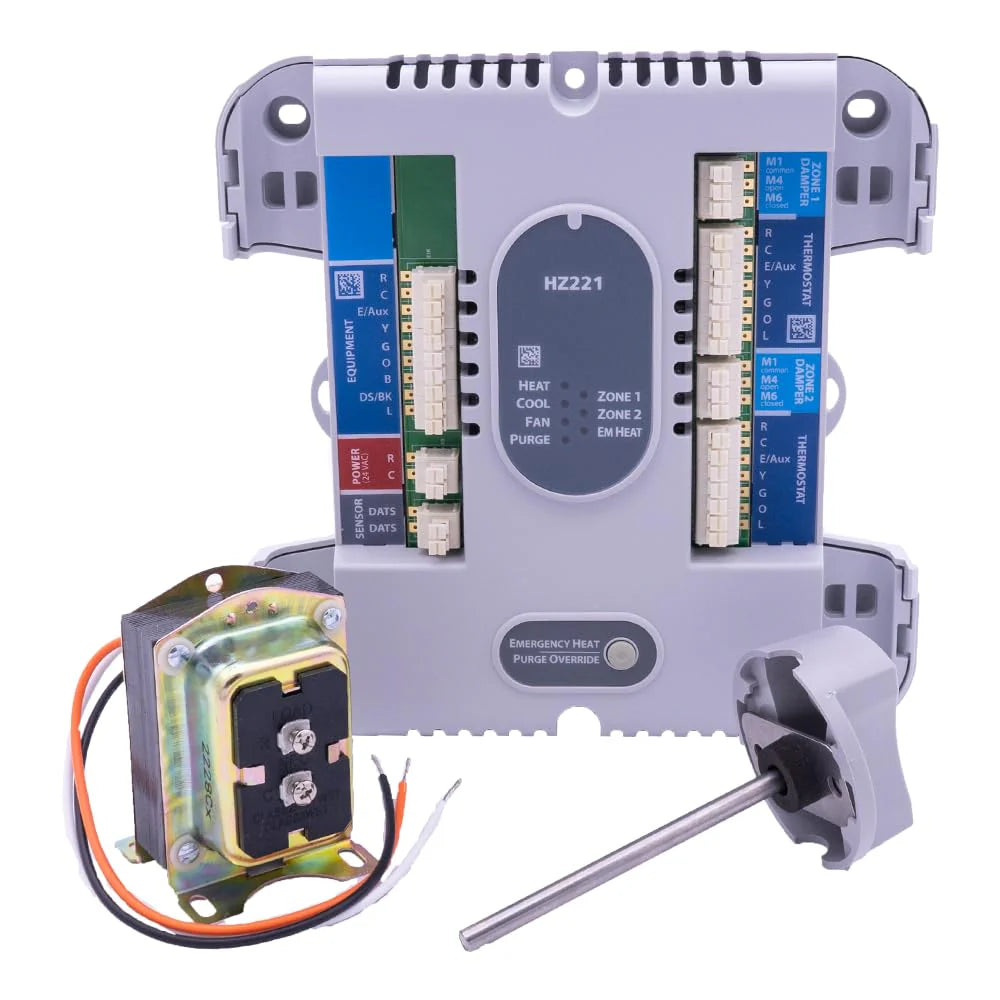

The Honeywell HZ221K TrueZONE Kit includes everything needed for a complete zone control system. Designed with ease of use in mind, this kit contains the HZ221 zone control panel, AT140 transformer, and C7735A discharge air temperature sensor.

• 1-stage heat pump with auxiliary heat
• Robust push terminals
• Common-sense LEDs

Product Highlights

This zone control system ensures clean, professional installation with a smaller footprint and variable-speed fan control. It is ideal for programmable and non-programmable thermostats and dampers.

Product Information

Standard Information

• Manufacturer: Honeywell
• Brand: Honeywell

Technical Specifications

• Type: 1-Stage
• Series: TrueZONE
• Dimensions: 8-1/8 inch height x 8 inch width x 1-55/64 inch depth
• Specifications: 24V, 50/60 Hz, 2 Zones, -40 to 165 degrees Fahrenheit
• Sub Brand: TrueZone
• Includes: HZ221 Zone Control Panel, AT140 Transformer, C7735A Discharge Air Temperature Sensor
• Power Source: 24VAC
• Voltage Rating: 18 to 30VAC
• Mounting: Wall
• Frequency: 50/60 Hz
• Standards: FCC Class B
• Application: For single-stage heat pumps with auxiliary heat applications up to two zones
• For Use With: Programmable, non-programmable thermostats and dampers
• Humidity Range: 5% to 90% RH non-condensing
• Number of Cool Stages: 1
• Number of Heat Stages: 2
• Terminal Designation: R, C, E/Aux, Y, G, O, B, DS/BK, L, DATS
• Display: LED
