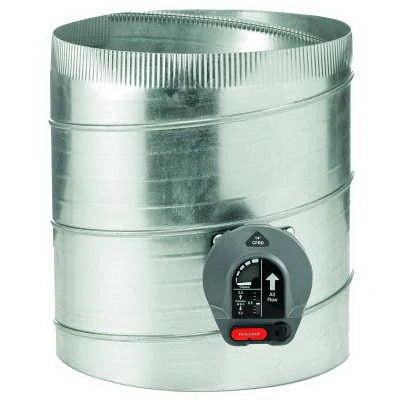

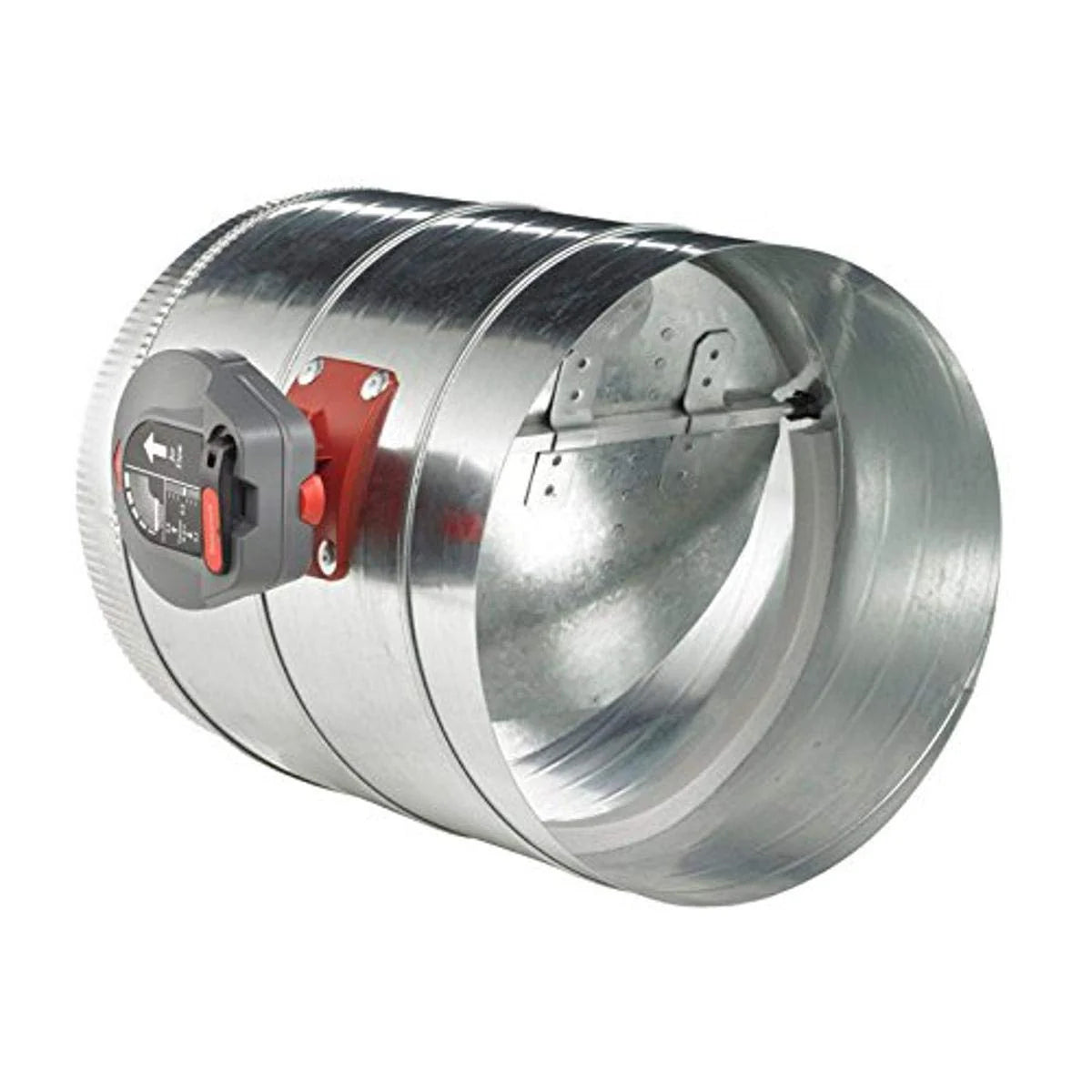

Honeywell CPRD14 TrueZONE Bypass Damper 14

Product Description

The Honeywell CPRD14 TrueZONE Bypass Damper is a key component for managing air pressure in forced-air bypass applications. This 14-inch round damper ensures that your HVAC system maintains consistent pressure when zone dampers are closed.

• Quick installation with no weight adjustments.
• Operates in any orientation.
• Ensures constant pressure regardless of changes in zones or blower speed.

Product Highlights

This damper is engineered for efficiency and ease of use. It replaces traditional weighted dampers, significantly simplifying the installation process. Designed to work in various orientations, it provides reliable pressure relief and enhances the overall performance of your HVAC system.

Product Information

Standard Information

• Brand: Honeywell
• MPN: CPRD14

Technical Specifications

• Size: 14 inches
• Shape: Round
• Material: Galvanized Steel
• Motor Type: Calibrated Spring Tension Regulator
• Temperature Rating: 0 - 165 degrees Fahrenheit
• Voltage: 24 VAC
• Gauge: 22 ga
• Application: Constant Pressure Regulating (Bypass) Damper
